haier L32H8 - Manual (Page 12)

VIDEO L R S-VEDIO IN
R L VIDEO
AV OUT
AV1 IN
COMPONENT IN
R L
AUDIO Pr/Cr Pb/Cb Y

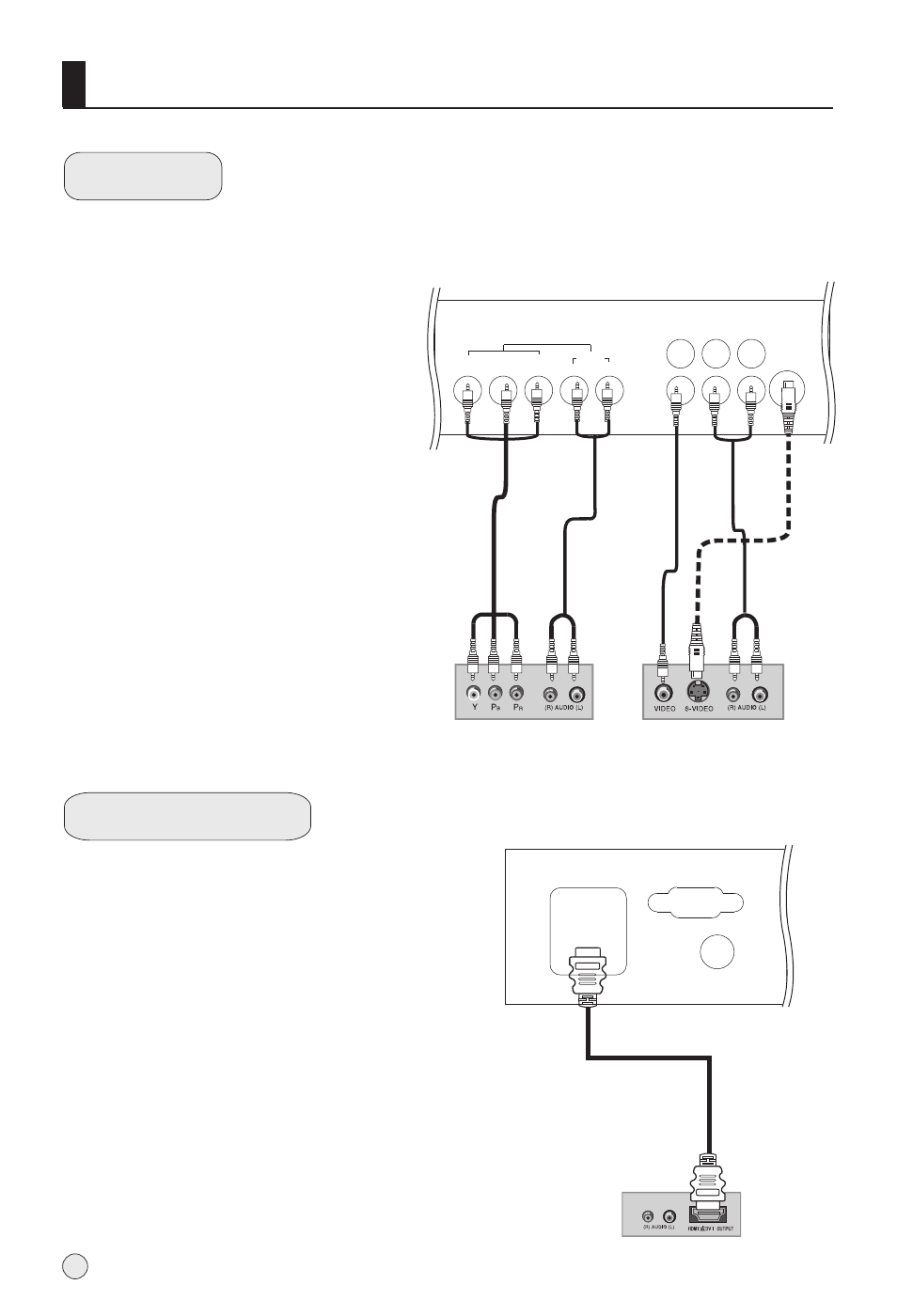

External Equipment Connections
DVD Setup
How to connect
1
. Connect the DVD video outputs (Y, Pb/Cb,
Pr/Cr) to the COMPONENT (Y, Pb/Cb, Pr/Cr)
input jacks on the TV and connect the DVD
audio outputs to the AUDIO jacks on the TV,
as shown in the figure.
2
. If your DVD only has an S-Video output
jack, connect this to the S-VIDEO input
on the TV and Connect the DVD audio
outputs to the AV IN jacks on the TV,
as shown in the figure.
NOTE: If your DVD player does not have
component video output, use S-Video.
How to use
1.
Turn on the DVD player, insert a DVD.
2.
Use the TV/AV button on the remote
control to select S-VIDEO or YPbPr/YCbCr
mode.
3.
Press Play button on external equipment
for program play.
4 . Refer to the DVD player's manual for
operating instructions.
HDMI or DVI Setup
-To watch digitally broadcast programs,
purchase and connect a digital set-top
box.
How to connect
Use the TV`s COMPONENT (Y, Pb/Cb,
Pr/Cr) IN jacks, VGA or HDMI port for
video connections, depending on your
set-top box connections available.
Then, make the corresponding audio
connections.
How to use
1
. Turn on the digital set-top box.
(Refer to the owner`s manual for the digital set-top box.)
2
. Use TV/AV on the remote control to select PC or HDMI
(Y, Pb/Cb, Pr/Cr) mode.
3 .
Press Play button on external equipment for program play.
10
or
DVD
HDMI2
HDMI1
PC/DVI
AUDIO IN
PC IN
