HDMI/DVI Input
Connect the monitor
output connector from
a DVD player to the
appropriate input port.
ANT IN
HDMI/DVI
IN1 PC IN
Pr/Cr Pb/Cb Y
IN2 SCART2 SCART1
DVD/DTV Input
(Component )
Connect a component
video/audiodevice to
these jacks.

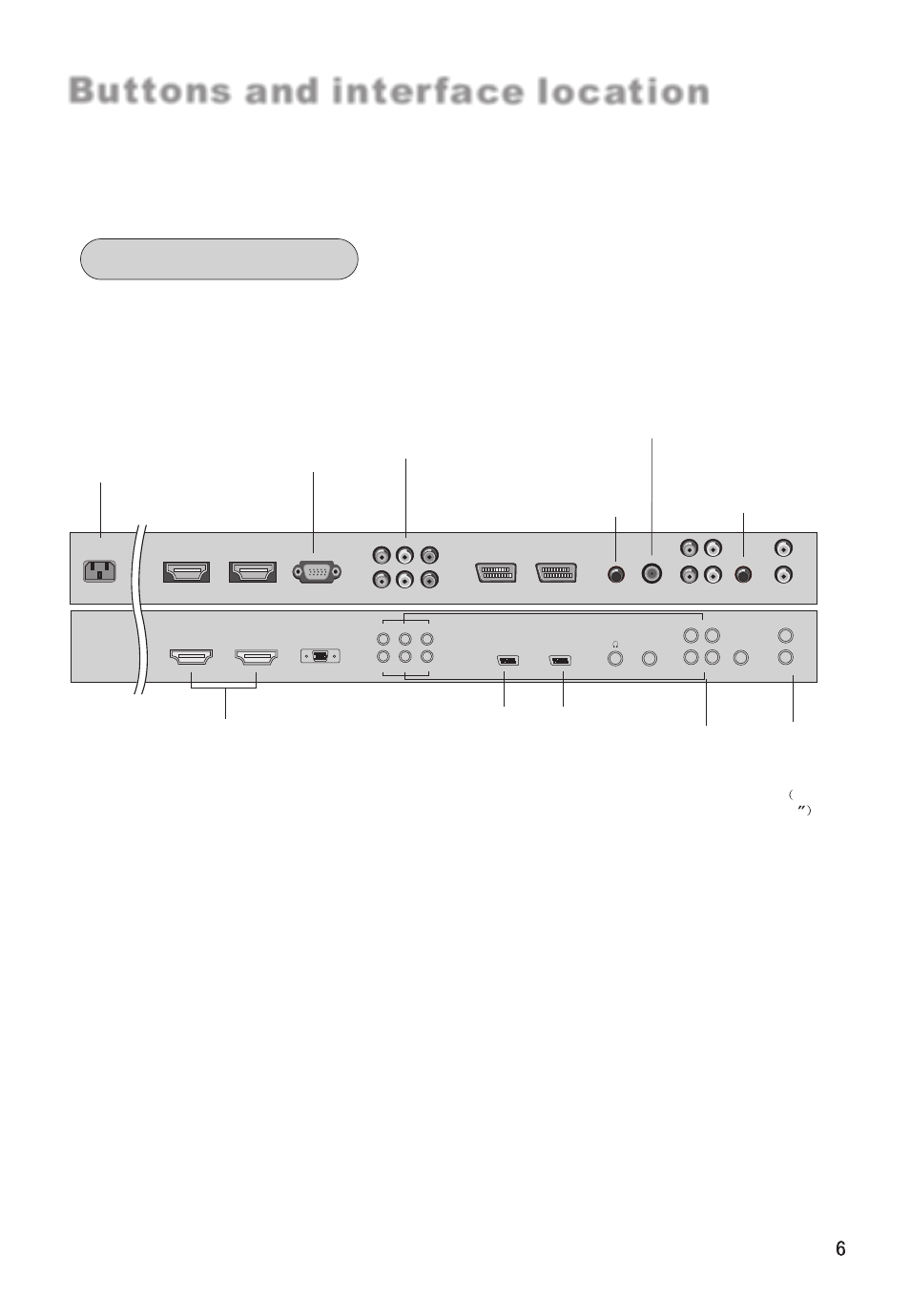

Buttons and interface location
Rear Control panel
Earphone jack:
Earphone audio
output terminal.
PC VIDEO Input
Connect the monitor
output connector from
a PC to the jack
Antenna Input
Connect cable or antenna signals
to the TV, either directly or through
your cable box.
SCART2 Input
Connect Scart
out from an Scart
device to the
Scart input.
Audio input
for linking DVI/PC
audio output terminals.
HDMI/DVI
IN2
AC IN
Pr/Cr Pb/Cb Y
IN1
HD-AUDIO
HD-AUDIO
PC/DVI
AUDIO IN
Audio input
for linking
YPbPr/YCbCr
audio output
terminals.
Power Cord Socket
This TV operates on AC
power. The voltage is
indicated on the
Specifications page.
Never attempt to operate
the TV on DC power.
SCART1 Input
(Canal+)
Connect Scart
out from an scart
device to the scart
input.
L
R
Speaker
output jack
for linking
loudhailer
only available
