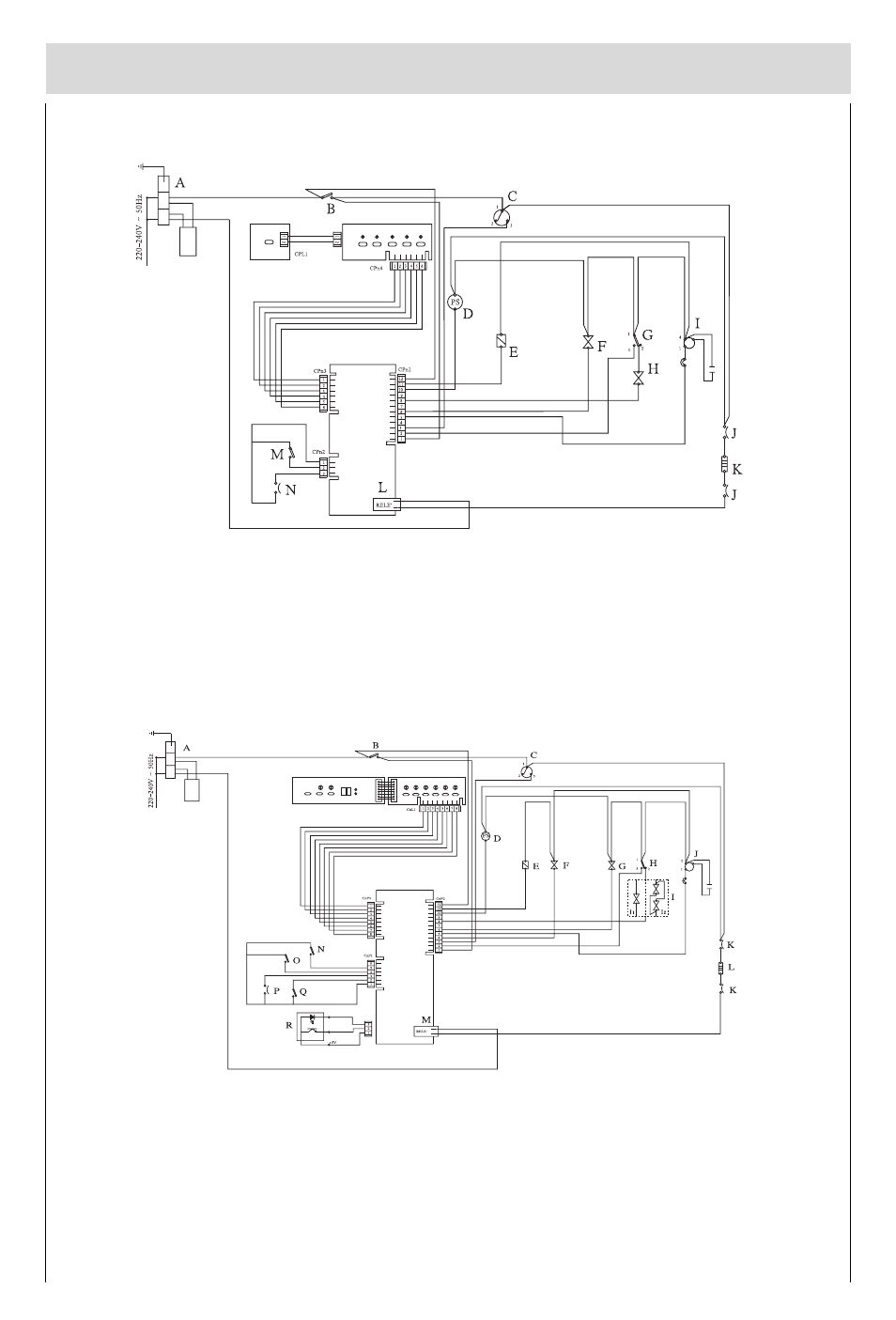

For DW15-PFE1**
E: Dispenser
F: Softener valve
G: Overflow switch
H: Inlet valve
A: Wiring box
B: Door switch
C: Water level switch
D: Drain pump motor
M: Flowmeter
N: Temperature sensor
For DW15-PFE2**
A: Wiring box
B: Door switch
C: Water level switch
D: Drain pump motor
E: Dispenser
F: 2-way valve
G: Softener valve
H: Overflow switch
I1: Inlet valve
I2: Inlet valve (Aquastop)
O: Low rinse aid switch
P: Temperature sensor
Q: Flowmeter
R: Turbidity sensor
I: Washing pump motor
J: Temperature limiter
K: Heater
L: Relay
J: Washing pump motor
K: Temperature limiter
L: Heater
M: Relay
N: Low salt switch
