31

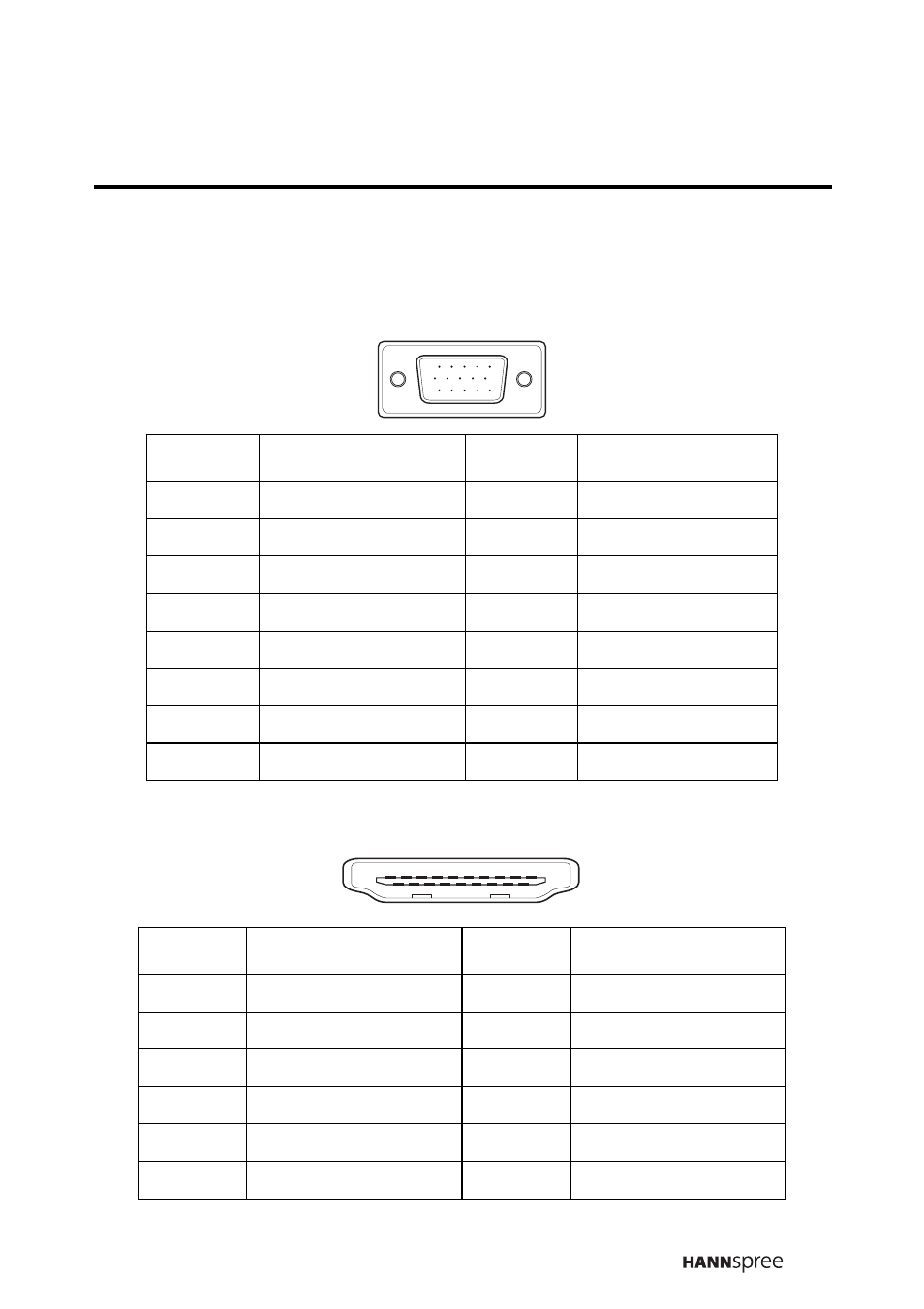

CONNECTOR PIN ASSIGNMENT
• 15-Pin Color Display Signal Cable:
• HDMI Color Display Signal Cable:
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Red 9 +5V
2 Green 10 Cable Detection
3 Blue 11 Ground
4 Ground 12 DDC-Serial Data
5 Ground 13 H-Sync
6 R-Ground 14 V-Sync
7 G-Ground 15 DDC-Serial Clock
8 B-Ground
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TMDS Data 2+ 11 Clock shield
2 TMDS Data 2 shield 12 Clock -
3 TMDS Data 2- 13 CEC
4 TMDS Data 1+ 14 NC
5 TMDS Data 1 shield 15 DDC CLK
6 TMDS Data 1- 16 DDC Data
1 5
11 15
1 19
2 18
