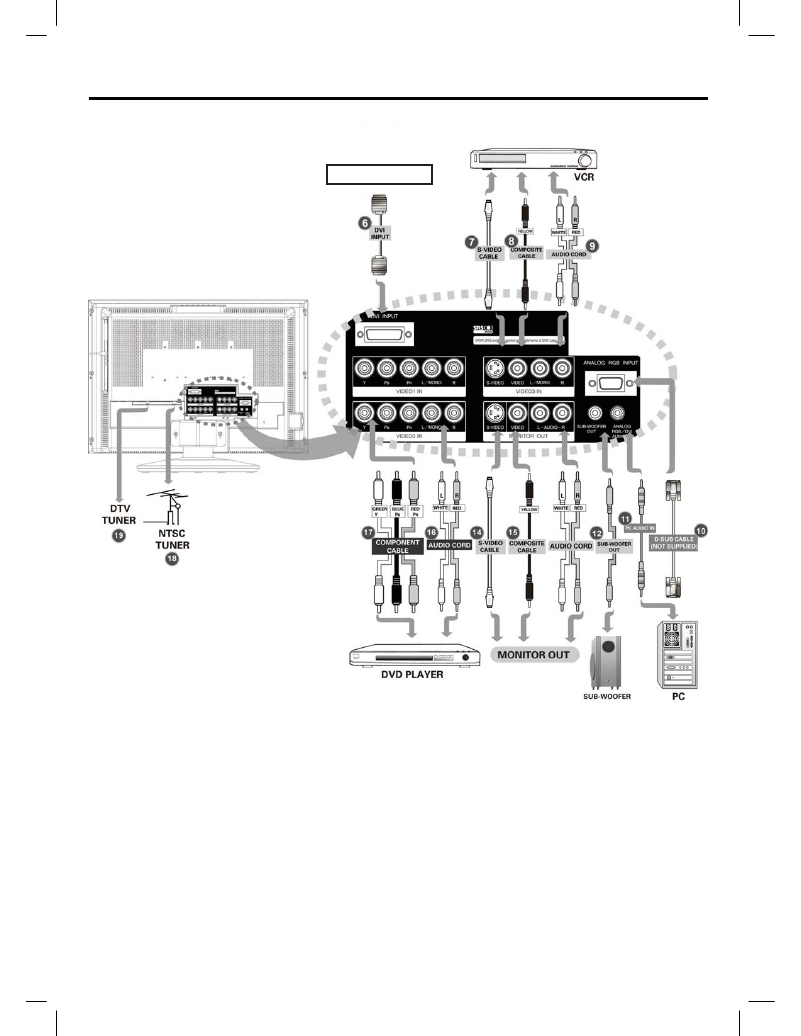

REAR PANEL JACKS
ཱུ
DVI –INPUT
Stands for Digital Visual Interface. Used for high quality digital video from a set-top-box.
ྲྀ
S-VIDEO (VIDEO 3)
Provide S-VIDEO (Super Video) jacks for connecting equipment with S-VIDEO output capability.
ཷ
VIDEO (VIDEO 3)
By using the VIDEO button of the remote control, you can select VIDEO3. Use the video inputs to
connect external devices, such as VCRs, camcorders, laserdisc players, DVD players etc.
ླྀ
L/ MONO / R (VIDEO 3)
Connect audio of external devices.(if you have mono sound, insert the audio cable into the left (L) audio jack).
ཹ
ANALOG RGB INPUT
Use this 15-pin D-Sub input for your external devices with RGB output using the D-Sub Mini 15-pin cable provided.
ེ
ANALOG RGB/DVI AUDIO IN
Connect audio for ANALOG RGB or DVI input.
Set-Top-Box
