13
This appliance conforms to the following EEC
Directives:
Low Voltage Equipment
73/23/EEC
93/68/EEC
Electromagnetic Compatibility
89/336/EEC
93/68/EEC
Inner dimensions of the oven:
width
43.5cm
depth 40.0cm
height 32.0cm
Inner volume of the oven:
56 lt
Voltage and frequency of power supply:
230-240V~
50/60Hz
2250-2400W
Electrical Connection
Electrical connection
The electrical connection to the mains must be made on
the appliance. The power voltage and frequency are as
indicated on the rating plate.
WARNING: THIS APPLIANCE MUST BE EARTHED.

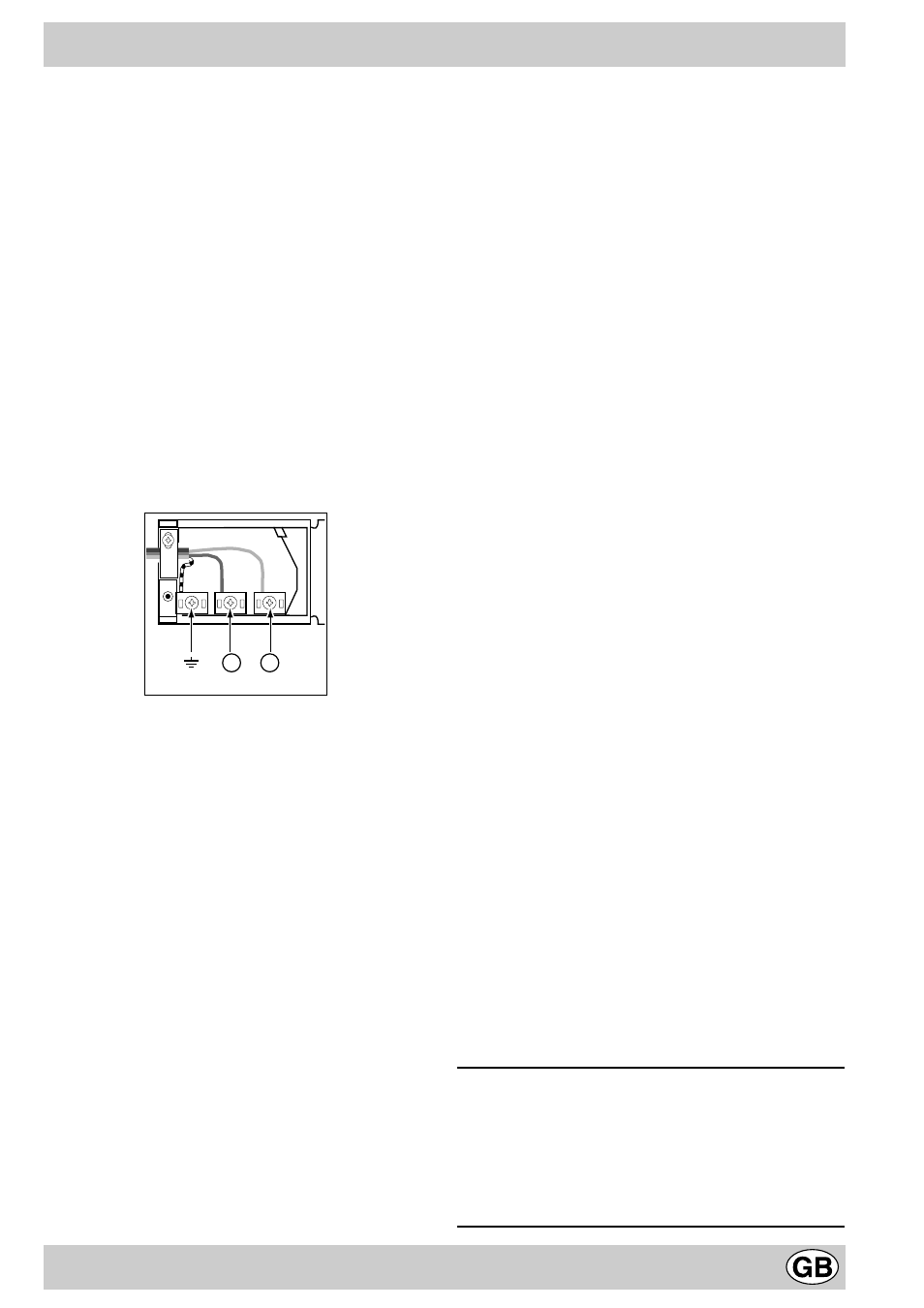

Connecting the power supply cable
To open the terminal board:
• Using a screwdriver, press on the tabs situated on each
side of the terminal board cover.
• Pull open the terminal board cover.
To connect the power supply cable, proceed as follows:
•
Unscrew the cable clamp screw and the contact screws
L-N-
6
.
• Fasten the wires beneath the screwheads using the following
colour scheme: Blue (N) Brown (L) Yellow-Green
6
• Fasten the power supply cable in the corresponding
cable clamp and close the cover.
Electrical Connection:
Voltage Frequency: 230 V-1+N 50Hz
Fuse Section: 16A
Supply cable: 3x1.5mm
2
You can connect your oven to the system means of a
terminal board. Refer to above information for the
minimal cable sections and the calibration of the
protective elements according to the connection.
If the appliance is installed with a junction box, an
omnipolar circuit breaker - with a minimum contact
opening of 3mm - should be installed between the
appliance and the mains.
Power cable supply connection to the electrical
mains:
We recommend you use a power supply cable which is
long enough to allow you to take the oven out of its recess
in the event of maintenance operations (only use HAR - H
05 - RRF quality cables fitted with a plug conforming to the
regulations in force.
The plug must be accessible at all times.
Unplug the appliance before all operations, even when
replacing the oven lamp.
Using the appliance without correct earthing is highly
dangerous.
IMPORTANT:
After connecting the appliance to the flexible cable, tighten
all the screws on the terminal board.
4 2
N L
ENERGY LABEL
Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Energy consumption for Forced convection
heating mode: b Fan assisted
Declared energy consumption for Natural convection Class
heating mode:
a
Convection
