Caution when moving the main unit
• As this product is heavy, whenever it is moved, two
people are required to transport it safely.
• Whenever the unit is moved it should be lifted forwards
using the two handgrips at the back, and the unit should
then be held at the base on both sides for stability.

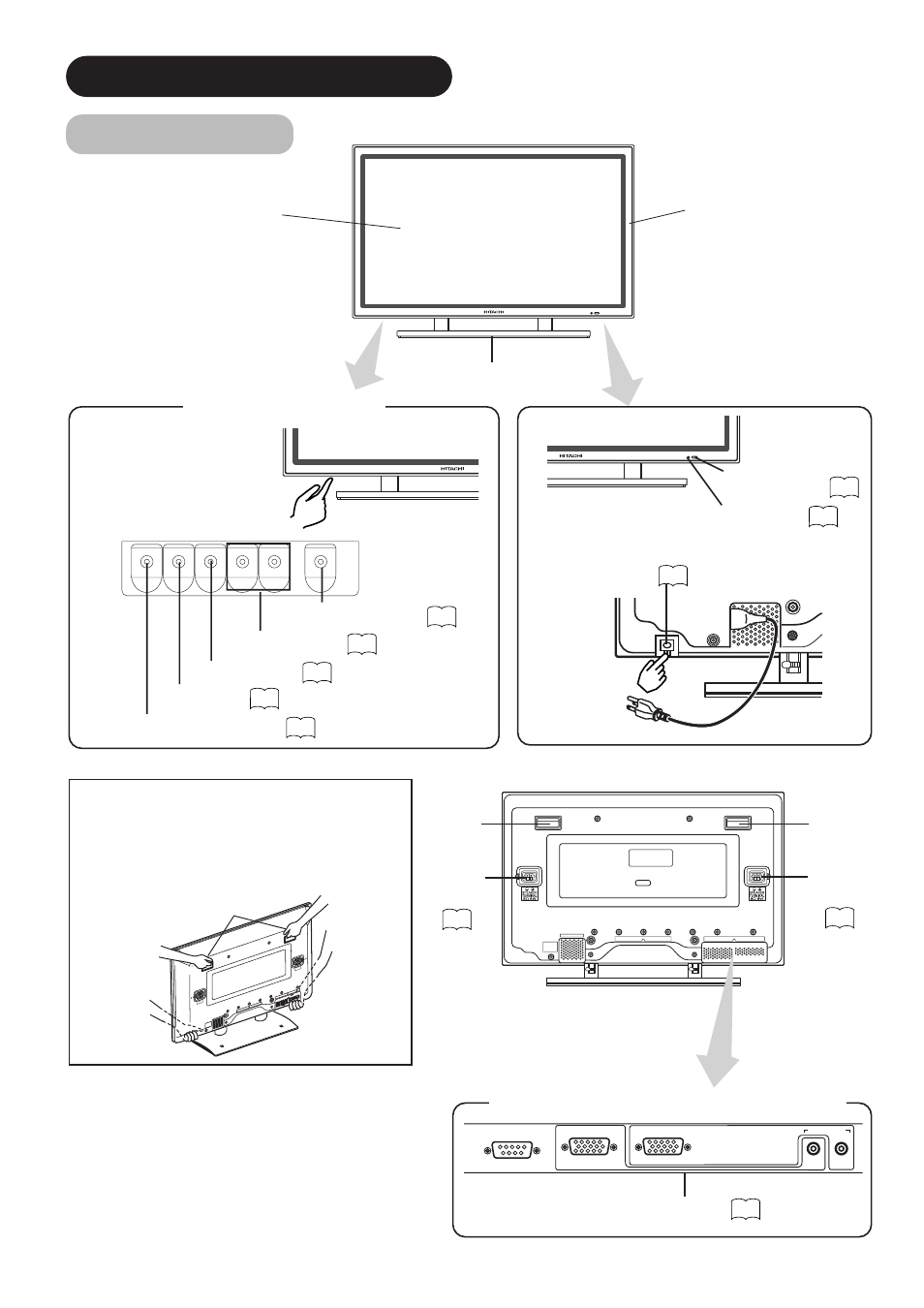

Component Names
Front
Cabinet
(front frame)
The stand shown is optional.
Panel
Remote-control
receiver
SIZE button
INPUT SELECT button
RECALL button
• Adjustment buttons are located
on the bottom.
• The back cover is provided with
indications to distinguish the
adjustment buttons.
SUB-POWER button
Control panel
VOLUME button
Main power switch
• The main power switch is located at the back, on the
lower surface.
Indicator lamp
External device connection terminals
Rear
RS232C
RGB 2
D-SUB IN
RGB 1
D-SUB IN
AUDIO IN
RGB input terminals
External
speaker
terminals
Handgrips
Handgrips Handgrips
Main Unit
External
speaker
terminals
