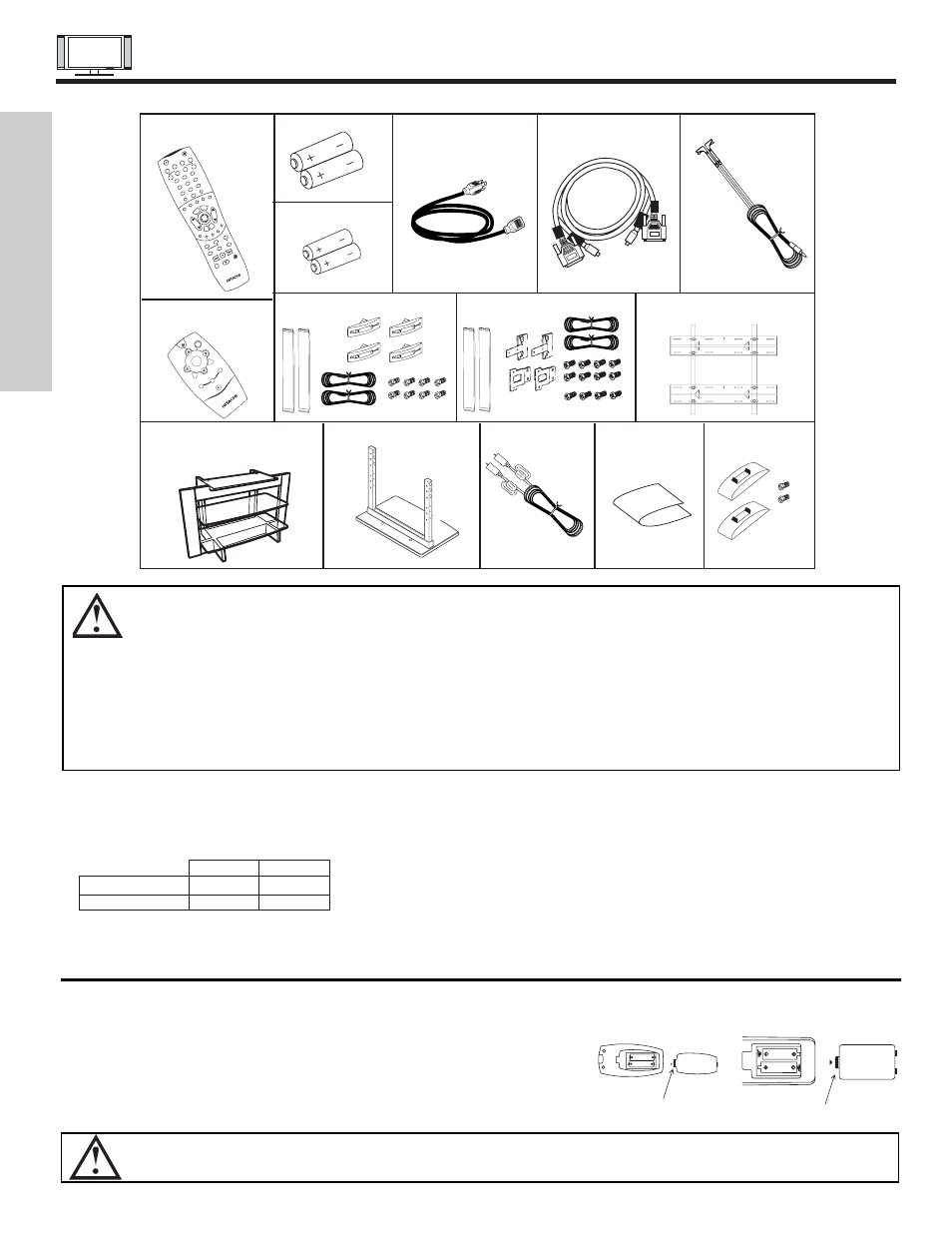

ACCESSORIES
4
FIRST TIME USE
1. Remote Control Unit CLU-5726TSI (P# HL01826).
8. Speaker Accessories (42” only) (P#GM01195).
2. Simple Remote Control Unit CLU-120S (P#HL01861).
9. Speaker Accessories (50” only) (P#GM01233).
3. Two “AA” size, 1.5V batteries (P# FQ00021).
10. Wall Mount Unit WM50 (Optional) (P#QX00563).
4. Two “AAA” size, 1.5V batteries (P# FR00061).
11. 32” Stand (SPD32 P# H520441) (Optional).
5. Power Cord:
42” Stand (SPD42 P# H520442) (Optional).
12. 50” Table Top Stand (50STD3) (P#QD35632).
13. Sub Woofer Cable (P# VZ11701).
6. Monitor Connection Cable (P#EW07883).
14. Cleaning Cloth (P#MS00803).
7. Two IR Mouse cables (P# EY01641).
15. AVC Stand Accessories (P#QJ01081).
REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT
1. Open the battery cover of the remote control by pushing the notched part of the cover with your fingers and pulling the
cover off.
2. Insert two new “AA” and “AAA” size batteries for the remote control and
simple remote control respectively. When replacing old batteries, push
them towards the springs and lift them out.
3. Match the batteries to the (+) and (-) marks in the battery compartment.
4. Replace the cover.
BOTTOM VIEW
Lift up on tab to
remove back cover.
Lift up on tab to
remove back cover.
(Remote Control)
BOTTOM VIEW
(Simple Remote Control)
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace with the same or equivalent type.
CAUTION: 1.
The plasma display wall mount unit WM50 is for use only with Hitachi model 32HDT55, 42HDT55 and
50HDT55.
2.
Ceiling mounting is not recommended. Mounting the panel on the ceiling does not provide adequate
ventilation for the electronics or proper support for the front glass panel. This plasma television product is
designed for a maximum tilting angle of 45 degrees from vertical.
3.
This SPD32 PDP stand for use only with Hitachi 32HDT55. Use with other apparatus is capable of resulting
in instability causing possible injury.
4.
This SPD42 PDP stand for use only with Hitachi 42HDT55 Use with other apparatus is capable of resulting
in instability causing possible injury.
5.
This 50STD3 stand for use only with Hitachi 50HDT55. Use with other apparatus is capable of resulting in
instability causing possible injury. See important marking located on bottom of stand.
REMOTE
“AA” BATTERIES
POWER CORD
MONITOR
IR MOUSE
CONTROL
CONNECTION CABLE
CABLE
5.
6.
7.
SPEAKER ACCESSORIES
(42”)
1.
WALL MOUNT UNIT WM50
(OPTIONAL)
PDP TV STAND (OPTIONAL)
32” (SPD32 P#H520441)
42” (SPD42 P#H520442)
10.
50STD3 Table Top Stand
12.
4.
SPEAKER ACCESSORIES
(50”)
8.
9.
C
B
A
C«
B«
A«
B
A
C«
B«
A«
C
Subwoofer Cable
13.
AVC Stand
Accessories
14.
15.
Cleaning Cloth
“AAA”BATTERIES
3.
11.
SIMPLE REMOTE
CONTROL
2.
POWER
TV
VCR
CBL
DVD
1
2
4
5
6
3
7
8
9
0
INFO
SLEEP
A/V NET
EXIT
MENU
CH
VOL
MUTE
PIP
SURF
SWAP
FREEZE
PIP MODE
PIP ACCESS
DAY/NIGHT
SOURCE WIZARD
REC
SELECT
TV/RGB
ASPECT
STB
ANT
LAST CH
VID 1
VID 2
VID 3
VID 4
V
ID
5
PVR
CD
AMP
VIDEO
Check to make sure you have the following accessories before disposing of the packing material.
