P L E A S E R E A D A N D S AV E T H E S E
I M P O R TA N T S A F E T Y I N S T R U C T I O N S
F E AT U R E S - O P E R AT I O N S
F E AT U R E S - O P E R AT I O N S
C L E A N I N G / M A I N T E N A N C E
Thank you for purchasing this Holmes ® product. We
understand the value of quality and are committed to
making superior products that stand the test of time. We
trust this product will exceed your expectations of quality
and reliability. We hope that you enjoy this product and
will consider purchasing another Holmes ® product in the
future. To see our full product line or if you have any
questions or comments about this product, please visit our
website at: www.holmesproducts.com.
When using electrical appliances, basic safety precautions
should always be taken including the following:
1. Read all instructions before using this appliance.
2. Use fan only for purposes described in the instruction
manual.
3. To protect against electrical shock do not immerse unit,
plug or cord in water or spray with liquids and plug the
appliance directly into a electrical outlet.
4. Close supervision is necessary when any appliance is
used by or near children.
5. Unplug from outlet when not in use, when moving fan
from one location to another, before putting on or
taking off parts and before cleaning.
6. Avoid contact with moving parts.
7. Do not operate in the presence of explosive and/or
flammable fumes.
8. To avoid fire hazard, NEVER place the cord under rugs
or any parts near an open flame, cooking or other
heating appliance.
9. Do not operate any appliance with a damaged cord or
plug after the appliance malfunctions, or has been
dropped/damaged in any manner. Take it to an
Authorized Service Center for examination and/or
repair.
10. The use of attachments not recommended or sold by
the appliance manufacturer may cause hazards.
11. Do not use outdoors.
12. Do not let the cord hang over the edge of a table,
counter or come in contact with hot surfaces or leave
exposed to high traffic areas.
13. To disconnect, grip plug and pull from wall outlet.
Never yank on cord.
14. Always use on a dry, level surface.
15. Do not operate fan until fully assembled with all parts
properly in place.
16. This product is intended for household use ONLY and
not for commercial or industrial applications.
17. WARNING: To reduce the risk of electrical shock and
injury to persons, do not use in window.
18. WARNING: To reduce the risk of fire or electric
shock, DO NOT use this fan with any solid-state speed
control device.
PLEASE READ AND SAVE
THESE IMPORTANT SAFETY
INSTRUCTIONS

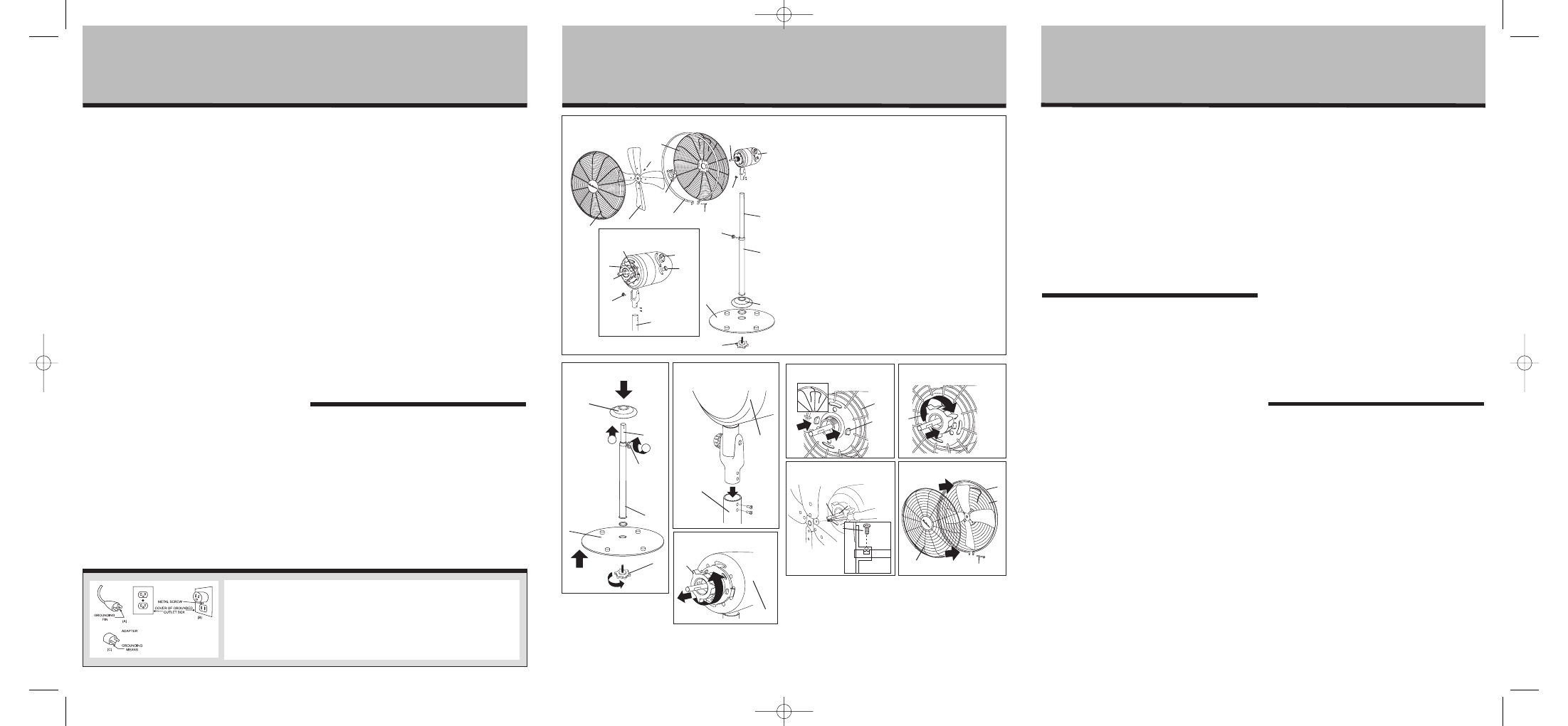

ASSEMBLY INSTRUCTIONS
(SEE FIGURE 1 - 8)
Assembly Time: 10-15 Minutes.
Tools Required: Phillips Head Screw Driver and Adjustable
Wrench.
1. Remove the Height Adjustment Knob (D) and slide the
Decorative Base Cover (F) over the top of the Upper
Pole (E). Replace the Height Adjustment Knob (D).
Refer to Figure 2.
2. Position the Lower Pole (A) over the opening of the base
and secure with the Base Nut (C). Refer to Figure 2.
3. Secure Motor Housing Assembly (G) to the top of the
Upper Pole (E). Refer to Figure 3.
4. Remove Rear Grill Nut (H) from Motor Housing
Assembly (G). Refer to Figure 4.
5. Position Rear Grill (I) over Motor Housing Assembly
(G). Refer to Figure 5 for correct positioning.
6. Secure Rear Grill (I) to Motor Housing Assembly (G)
with Rear Grill Nut (H). Refer to Figure 6.
7. Slide Fan Blade (L) over Motor Shaft (J) and tighten
Blade Screw (M). Refer to Figure 7 for correct
positioning of Fan Blade (L) and Motor Shaft (J).
8. Snap Front Grill (O) into Grill Ring (P).
NOTE: You may have to loosen the Grill Ring Screw
(Q) to snap the Front Grill (O) into place.
OPERATING INSTRUCTIONS
(SEE FIGURE 1A & 1)
Speed Control (R) =
III - High
II - Med
I - Low
0 - Off
ADJUSTMENT INSTRUCTIONS
Tilt Adjustment
Loosen Tilt Adjustment Knob (N), move fan head to desired
angle, and tighten Tilt Adjustment Knob (N) to lock in
place.
Height Adjustment
Loosen Pole Locking Knob (D), Upper Pole (E) to desired
height, and tighten Pole Locking Knob (D) to lock in place.
Oscillation Adjustment
Press, Pull Oscillation (S) = start, stop
CLEANING/MAINTENANCE
INSTRUCTIONS
Follow these instructions to correctly and safely care for
your fan.
• Always unplug the fan before cleaning or disassembling.
• Be sure to clean your fan with a soft cloth moistened
with a mild soap solution.
• Do not allow water to drip on or enter into the fan
housing.
• Do not use gasoline, thinner, or benzene as a cleaner.
• Lightly run a vacuum cleaner nozzle over the fan grill
to remove any dust or dirt that may have
accumulated.
Fan Blade Cleaning Instructions
Make sure the fan is unplugged before disassembling and
cleaning the fan blade. Carefully remove the front grill
from the clips. Wipe the blade with a soft cloth moistened
with a mild soap solution. DO NOT allow any liquid to drip
into or enter the motor housing. Snap the front grill onto
the fan. Make sure all parts are secured prior to operating
the fan.
FAN STORAGE
Your fan should be stored in the off-season in its original
box. It is important to keep it in a safe, dry location.
• Store your fan in the original box or an appropriately
sized box.
• Protect the fan head from dust.
I
M
O
L
P Q
A
D
E
G
J
F
C
B
H
N
K-(2)
T
E
S
R
Figure 1A
H
N
1
2
D
E
B
C
A
H
Figure 5
I
K-(2)
Figure 6
H
Figure 7
J T
M
L
Figure 8
I
P
Figure 9
Q
Figure 3 Figure 2
Figure 1
Figure 1A
Figure 4
Figure 5 Figure 6
Figure 7 Figure 8
G
This product is for use on 120 volts. The cord has a plug (A) as shown. An adapter
(C) is available for connecting three-blade grounding-type plugs to two-slot
receptacles (B). The green grounding lug extending from the adapter must be
connected to a permanent ground such as a properly grounded outlet box. The
adapter should not be used if a three-slot grounded receptacle is available.
CAUTION: Use Only with GFCI Protected Receptacles.
A. Lower Pole
B. Glass Base
C. Base Nut
D. Height Adjustment
Knob
E. Upper Pole
F. Base Cover
G. Motor Housing
Assembly
H. Rear Grill Nut
I. Rear Grill
J. Motor Shaft
K. Prong
L. Fan Blade
M. Blade Screw
N. Tilt-Adjustment Knob
O. Front Grill
P. Grill Ring
Q. Grill Ring Screw
R. Speed Control
S. Oscillation Control
T. Notch on Motor Shaft
O
E
F
G
