Hunter Fan 21705 User Manual
Parts guide, Fan parts, Hardware
PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-986 01-11-2011 •
©
2011

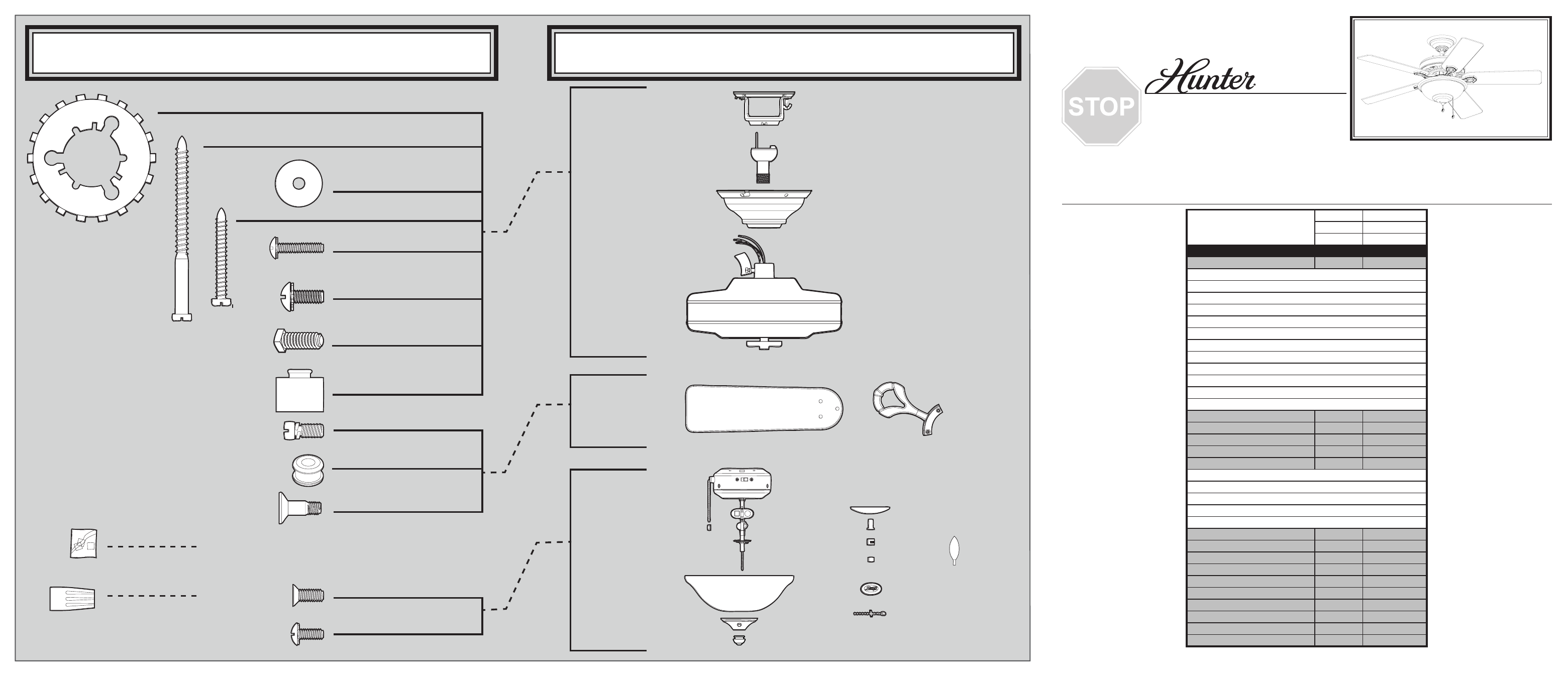

Fan Parts
(Not Drawn to Scale)
Hardware
(Drawn to Scale)
Parts List
Model #
21705
Asm. Dwg. #
99125-01
Finish
Midnight Copper
Item Name
Qnty
Part #
* Hanging System Kit
1
96970-88
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Low Profile Washer
Canopy Screw
Wood Screw 1.5”
Wood Screw 3”
Flat Washer
Mounting Isolator
Screw, Low Profile
Switch Housing Assembly
1
G0663-88
Blade Iron Set
1
97838-05
Blade Set
1
G0761-16
Screw, Blade Iron Armature
11
63755-05
Hardware Kit
1
99125-00-860
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit
1
65666-01
Cap, Finial
1
63987-01
Finial
1
07613-02
Pull Chain Pendant
1
G0090-01
Pull Chain Pendant
1
G0091-01
Pull Chain
1
63756-18
Pull Chain
2
63756-23
Light Kit Assembly
1
97231-08
Light bulb / Bulb
2
77646-04
Globe/Shade
1
88855-01
Blade Grommet
Hanger
Bracket
Assembly
Blade
Assembly
Switch
Housing
Assembly
Screw, Switch
Housing Assembly
Screw,
Machine, 6-32
Screw, Low
Profile
Setscrew
Screw, Blade
Iron Armature
Canopy Screw
Flat Washer
Screw, Blade
Assembly
3” Wood Screw
Low Profile
Washer
Balancing
Kit
Wire
Connector
1.5” Wood Screw
Mounting
Isolator
x 1
x 2
x 4
x 2
x 3
x 4
x 1
x 11
x 16
x 3
x 3
x 1
x 4
x 4
x 16
