How THe sysTem works

Dust and other irritants are pulled into the Air Purifier by the fan. The Washable Pre-Filter

attracts larger particles like pet dander and hair and traps them on the Pre-Filter. Smaller

particles such as dust, mold, and pollen pass through the Pre-Filter and are captured by the

HEPA filters. Up to 99.9% of particles can be captured.

The UVC Light helps kill particles not trapped on the HEPA Filters and the Photocatalytic

Oxidation screen removes harmful VOC’s. Clean, purified air is then released into the room

through the front grill as the Oxygenating Catalyst converts smog and ozone back into

oxygen. Figure 5.

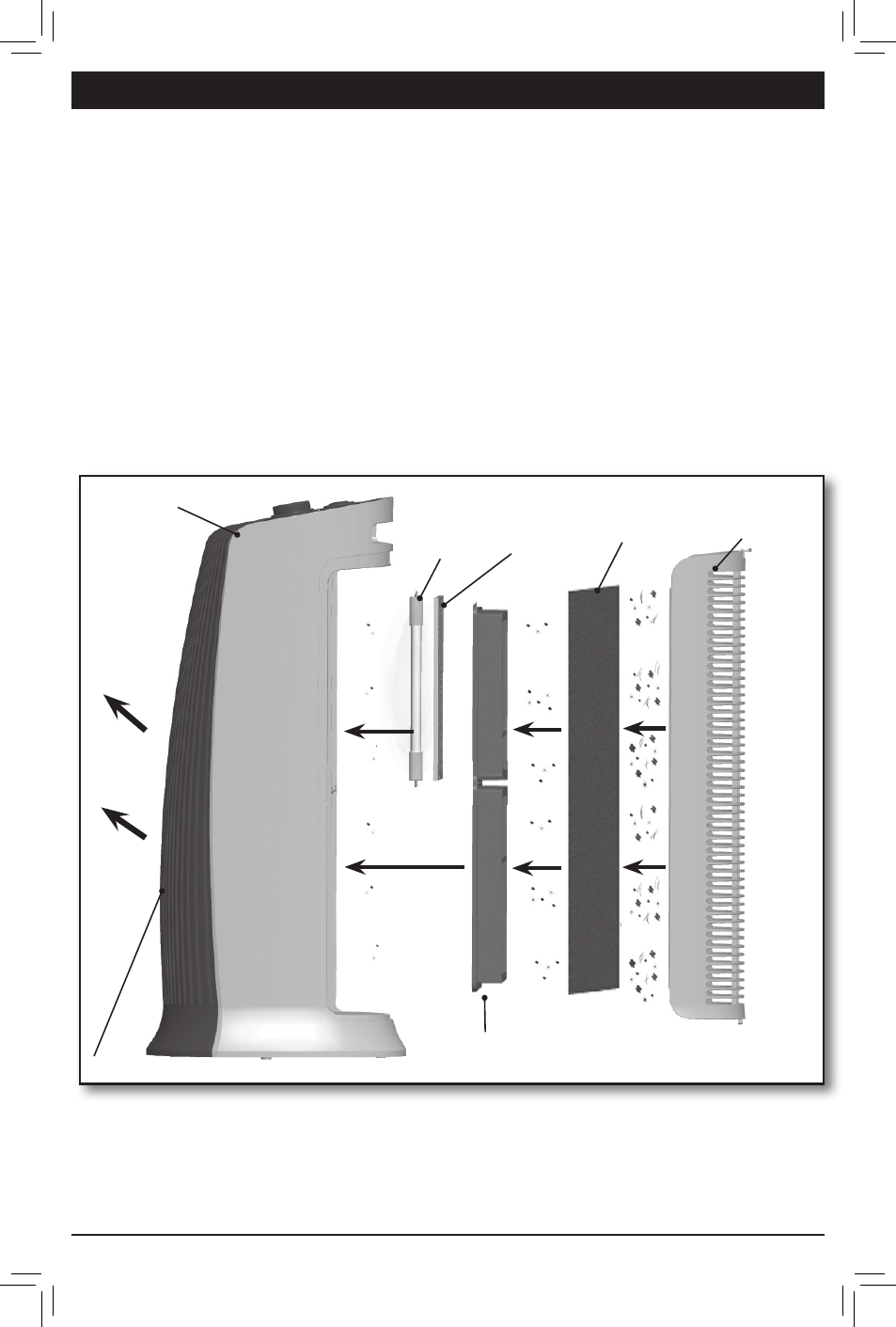

figure 5.

Grill

HEPA Filters

Washable

Pre-Filter

Unit

UVC

Light

Photocatalytic

Oxidizer

Oxygenating Catalyst
