Place all parts of the AEROFLYER in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed. Read through all assembly steps before you begin.

Assembly requires a phillips screwdriver (not included).

ASSEMBLY

2. Slide a Lock Washer (16) onto the Lock Knob (32).

Insert the Lock Knob into the hole near the top of
the Left Leg (2). Tighten the Lock Knob into the
Link Plate (7).

3. The Electronic Monitor (9) requires two ÒAAÓ

batteries (not included). Alkaline batteries are
recommended. Press the tab on the battery cover
and remove the battery cover from the Monitor.
Insert two batteries into the Monitor. Make sure
that the negative (Ð) ends of the batteries are
touching the springs in the Monitor. Close the
battery cover.

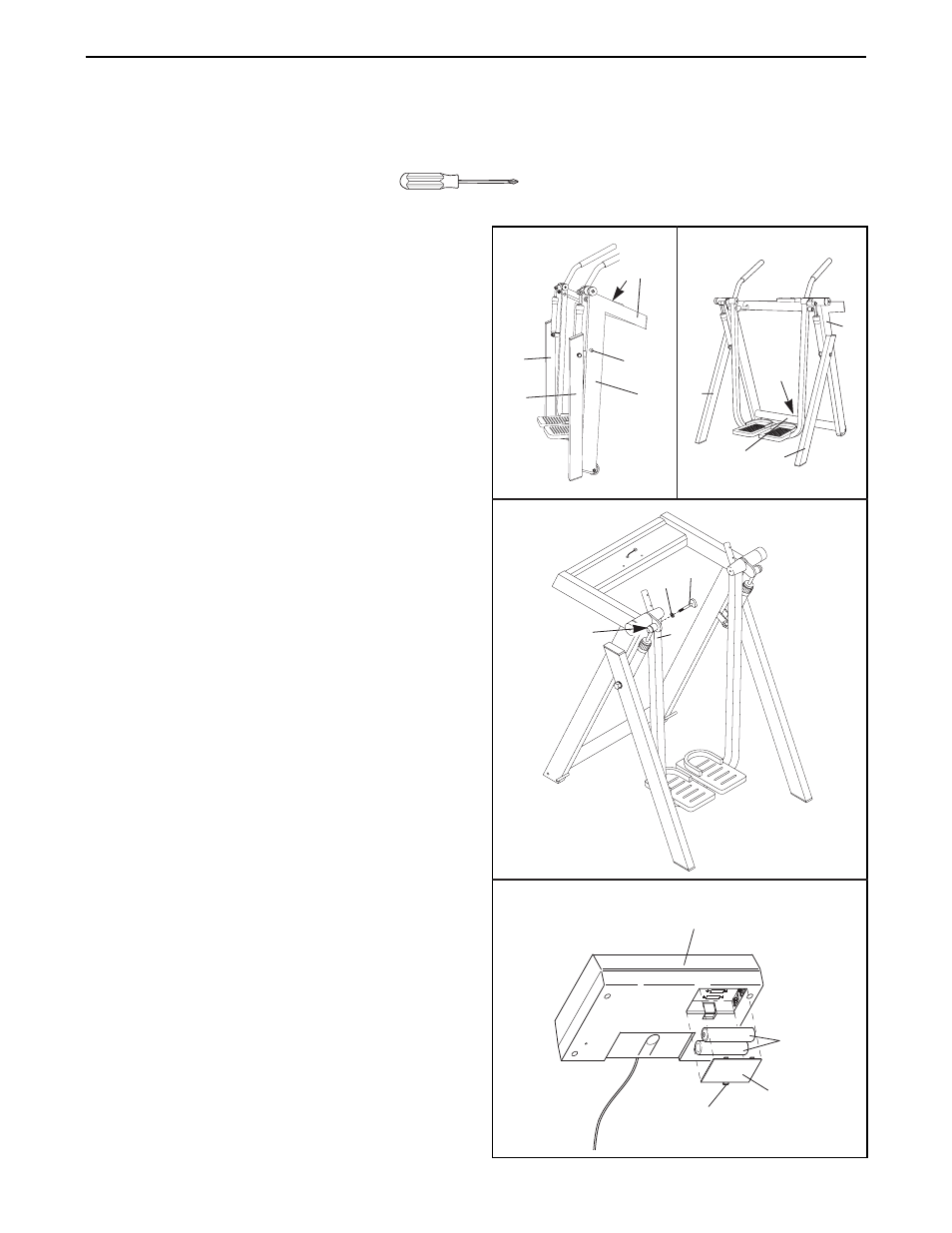

1. Refer to figure 1a. Stand at the front of the

AEROFLYER, hold the Frame (1) in the
indicated locations, and raise the AEROFLYER to
the position shown. Refer to figure 1b. Put your
foot on the round tube. Using your foot, pull the
round tube toward yourself until the Uprights (5, 6)
are fully extended. Before you proceed with
assembly, make sure that the Uprights are fully
extended and are resting against the stops
(see figure 1a).

Fig. 2

Fig. 3

Tab

Battery
Cover

Batteries

Fig. 1a

Front

Foot

Round
Tube

Back

Fig. 1b

Stop

Hold

Here
