Front panel controls

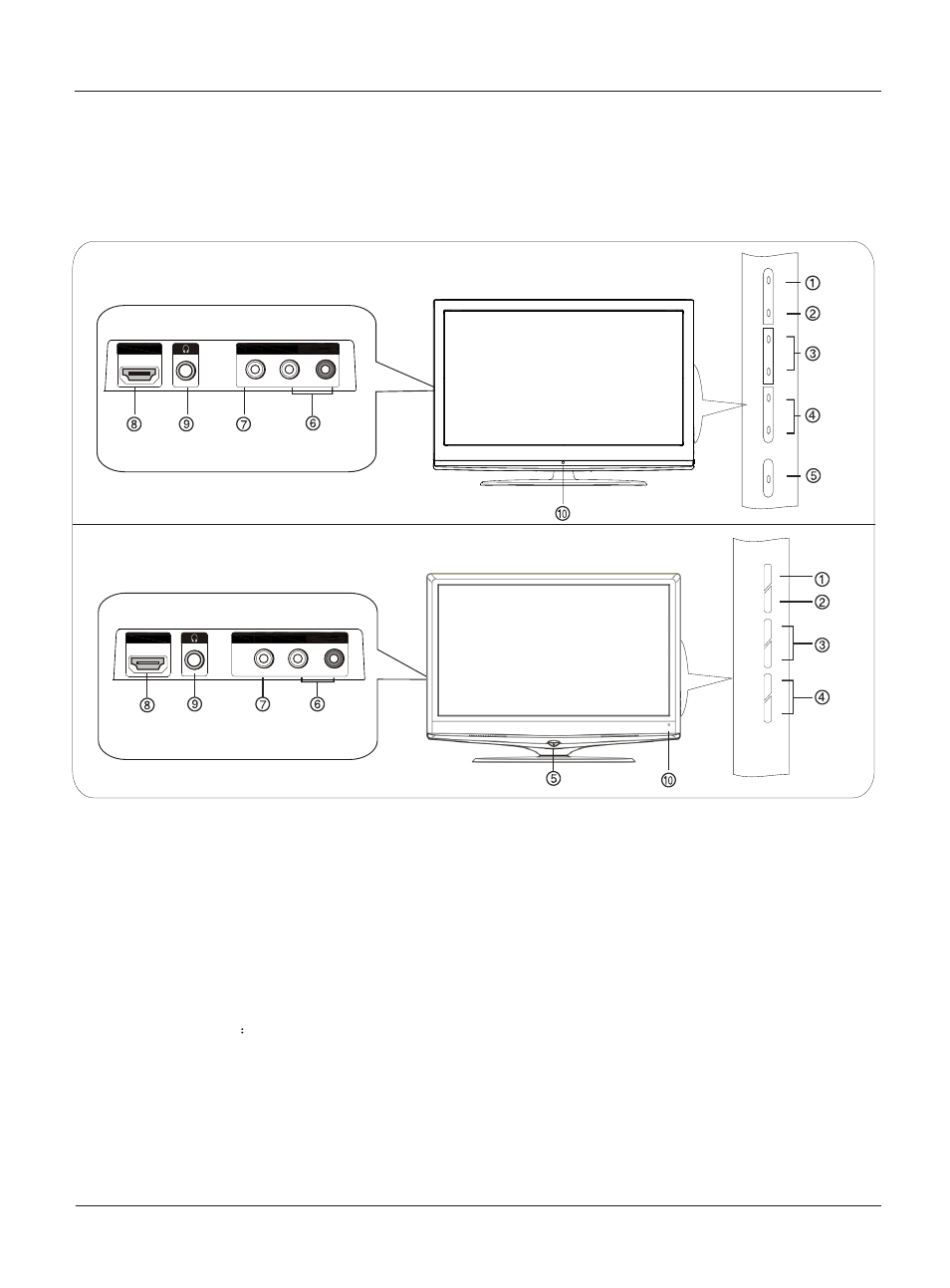

This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
Introduction
6 TV LCD-TFT
Controls
1.MENU: Menu display.
2.INPUT: Press to open the input source mode. In the MENU/INPUT screen, these buttons serve as OK
button.
3.VOL +/-: Press to adjust the volume. In the MENU screen, these buttons serve as left/right buttons.
4.CH +/- : Press to scan through channels. To scan quickly through channels, press and hold down
either +/- . In the MENU screen, these buttons serve as up/down buttons.
5.POWER: Press to turn on and off the TV.
6.AV2 AUDIO IN: Connect the audio L/R cables from the video signal source to these jacks.
7.AV2 VIDEO IN: Connects the composite video cable from an external signal source to this jack.
8.HDMI3 IN: Connect a signal from an external device to HDMI.
9.Headphone jack : Headphone audio output terminal.
10.Remote Sensor
Receivers Irsignals from the remote control.
Do not put anything near the sensor ,as its function may be affected.
