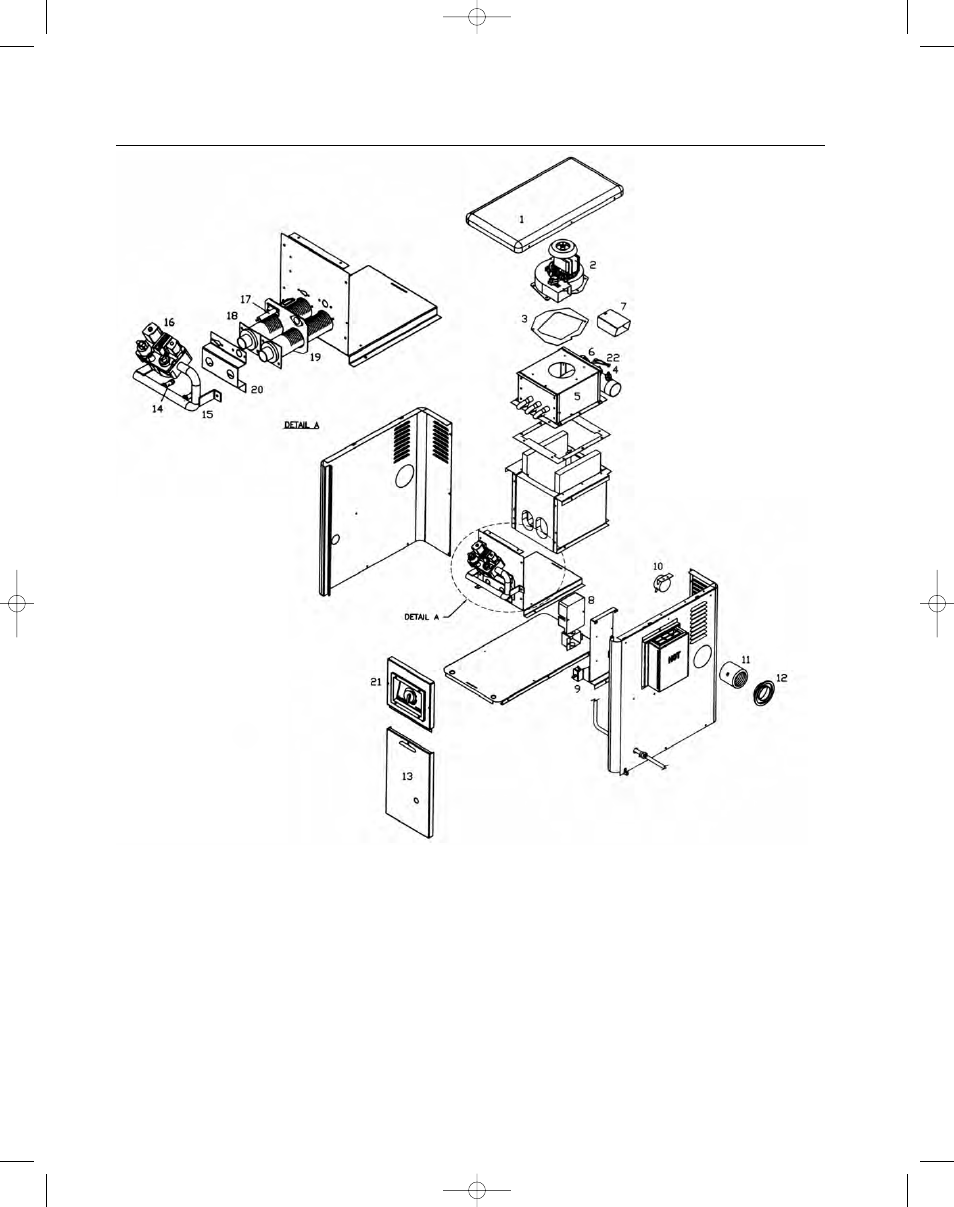

Parts List & Illustration
7
ITEM NO. DESCRIPTION PART NO.
1. Jacket, Top IDX JKT 1100
2. Combustion Blower (Jakel Jakel) IDX BWR 1930
Combustion Blower (Jakel Fasco conversion) IDX BWR 1931
Combustion Blower (Fasco Fasco)
IDX BWR 1932
3. Blower Gasket (Jakel only) IDX BLG 1930
4. High Limit Kit IDX HLK 1930
5. Heat Exchanger Assembly (dual tubes) IDX HXA 1100
5. Heat Exchanger Assembly (single tube after 6/99) IDX HXA 1101
6. Water Pressure Switch CZX PRS 1105
8. Interlock Switch IDX ILS 1930
9. Control Module IDX MOD 1930
10. Air Pressure Switch IDX APS 1930
11. Coupling IDX CPG 1930
ITEM NO. DESCRIPTION PART NO.
12. Grommet 1 1 ⁄
2
” Pipe IDX GRM 0001
13. Front Access Door IDX FAD 1101
14. Burner Orifice, Natural Gas IDX ORF 1933
15. Gas Manifold IDX MAN 1100
16. Gas Valve IDX VAL 1930
17. Ignitor with cable IDX IGN 1930
18. Burner IDX BNR 1930
19. Burner Gasket IDX BRG 1930
20. Air Orifice Bracket, Natural Gas IDX AOB 1930
20. Air Orifice Bracket, Propane IDX AOB 1931
21. Control Panel Assembly IDX CPA 1100
22. Wire Harness IDX WHA 1930
22. Wire Harness (after 1/00) IDX WHA 1931
The change from Jakel combustion blowers to Fasco was made for production starting in 1/07.
