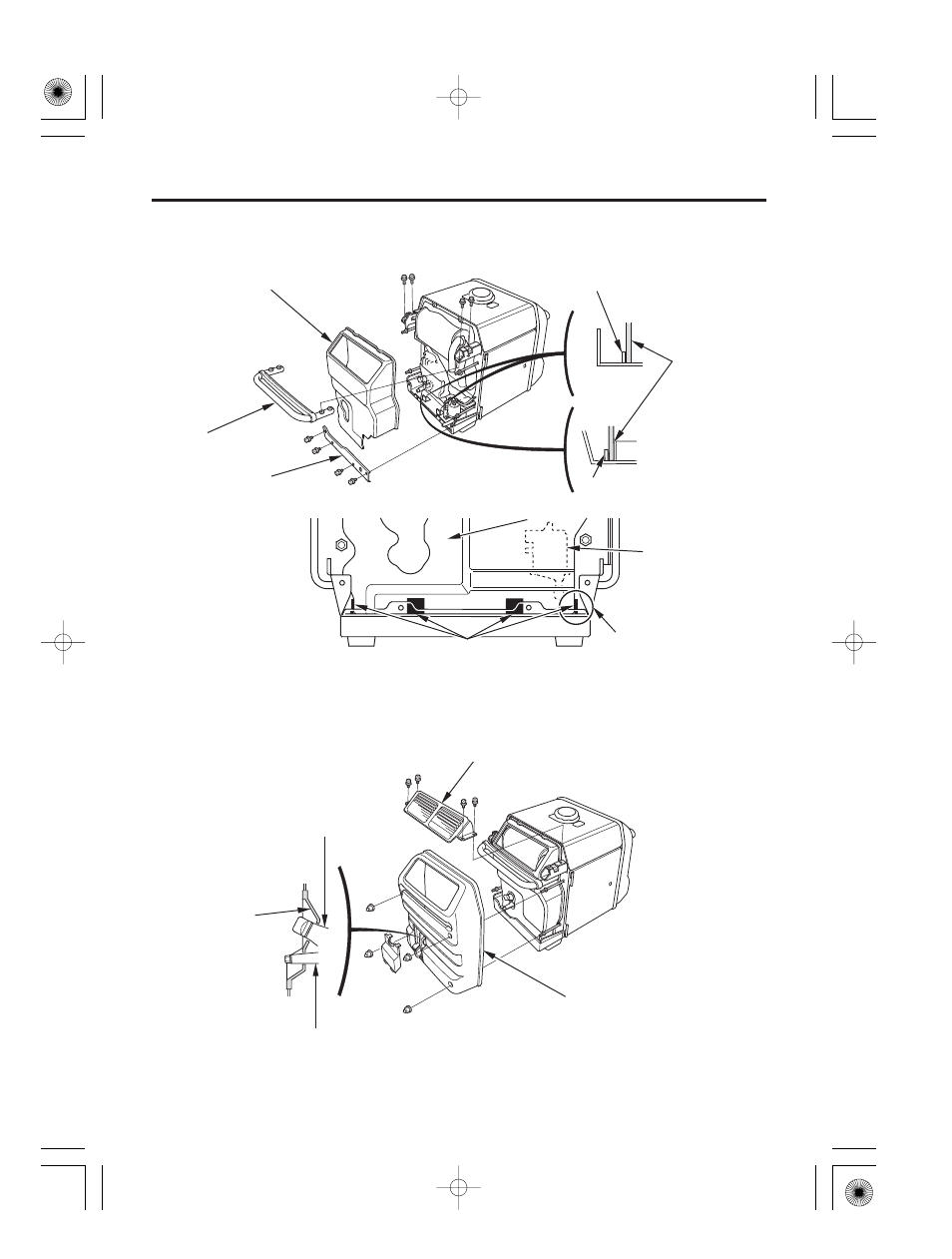

LOWER MUFFLER PROTECTOR
HOOK
HOOK
LOWER
MUFFLER
PROTECTOR
UPPER MUFFLER
PROTECTOR
REAR COVER
OIL FILLER NECK
REAR HANDLE
RUBBER DRIP
GUARD
OIL DRAIN NECK
REAR UNDER PLATE
LOWER MUFFLER PROTECTOR
HOOK
CALIFORNIA TYPE
NON-CALIFORNIA TYPE
ONLY
Install the upper muffler protector and the rear cover in the reverse
order of removal.
Install the lower muffler protector inside the hook securely.
When installing the rear cover, carefully fit the rubber drip guard
around the oil filler neck and oil drain neck.
Install the lower muffler protector, the rear under plate, and the rear
handle in the reverse order of removal.
