ENGLISH
Quick Reference Information

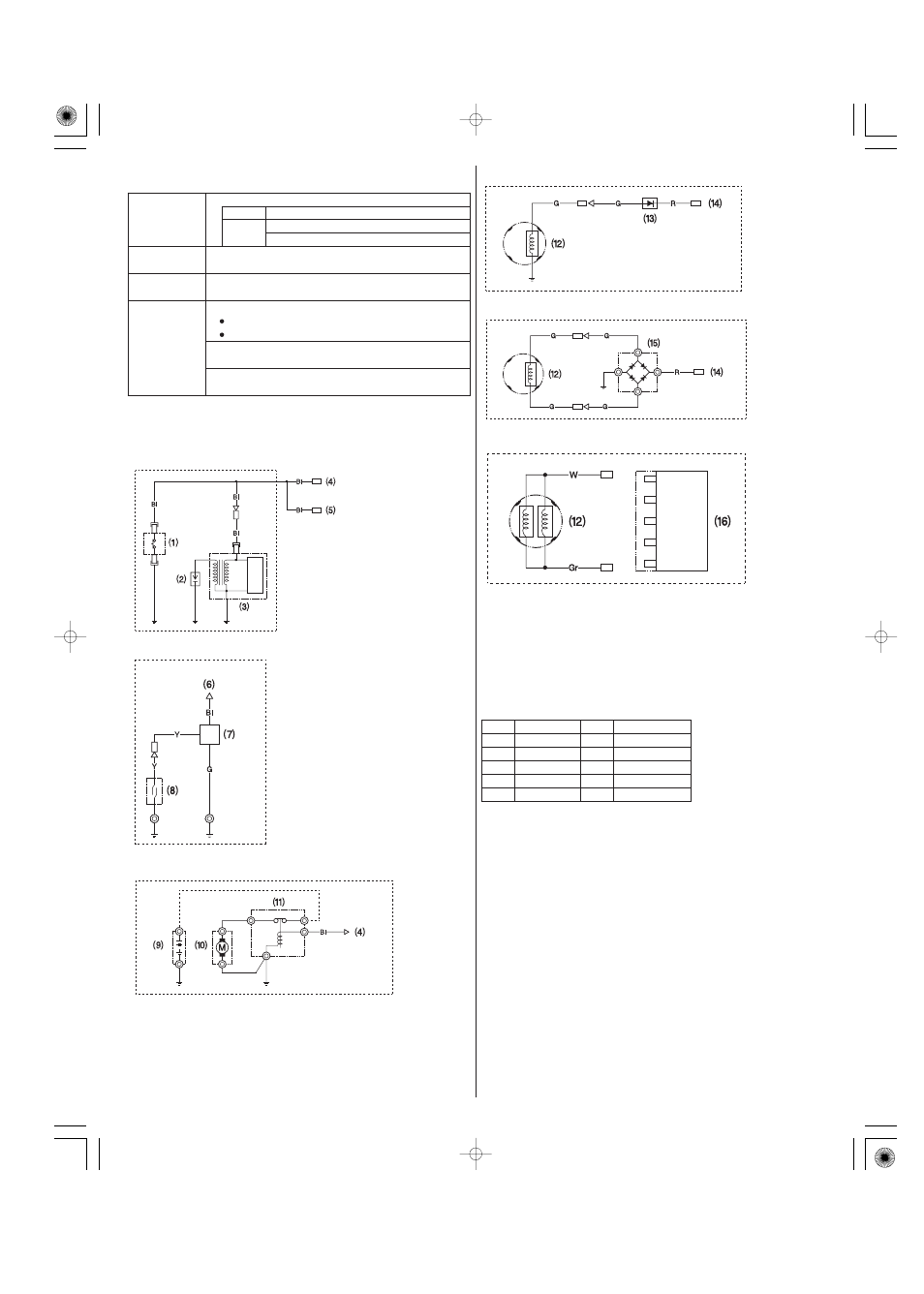

Wiring Diagrams
17
Pump octane rating 86 or higher
Research octane rating 91 or higher
Pump octane rating 86 or higher U.S.
Except
U.S.
Unleaded gasoline (Refer to page 8) Fuel
Engine oil
Spark plug
Maintenance
BPR5ES (NGK)
W16EPR-U (DENSO)
SAE 10W-30, API SJ or SL, for general use.
Refer to page 8.
Before each use:
Check engine oil level. Refer to page 9.
Check air filter. Refer to page 10.
First 20 hours:
Change engine oil. Refer to page 9.
Subsequent:
Refer to the maintenance schedule on page 7.
BASIC CIRCUIT
OIL ALERT CIRCUIT
12V STARTER CIRCUIT
1A CHARGING SYSTEM
3A CHARGING SYSTEM
10A CHARGING SYSTEM
OIL LEVEL SWITCH
CHARGING COIL
SPARK PLUG STARTER MOTOR
STARTER SOLENOID
BATTERY (12 V)
Black
Yellow
Blue
Green
Red
White
Brown
Orange
Light blue
Light green
Pink
Gray
Br
O
Lb
Lg
P
Gr
Bl
Y
Bu
G
R
W
IGNITION COIL
ENGINE STOP SWITCH
TO ENGINE SWITCH
TO OIL ALERT CIRCUIT
TO ENGINE STOP SWITCH
OIL ALERT BUZZER
TO LOAD
RECTIFIER
DIODE
REGULATOR
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
