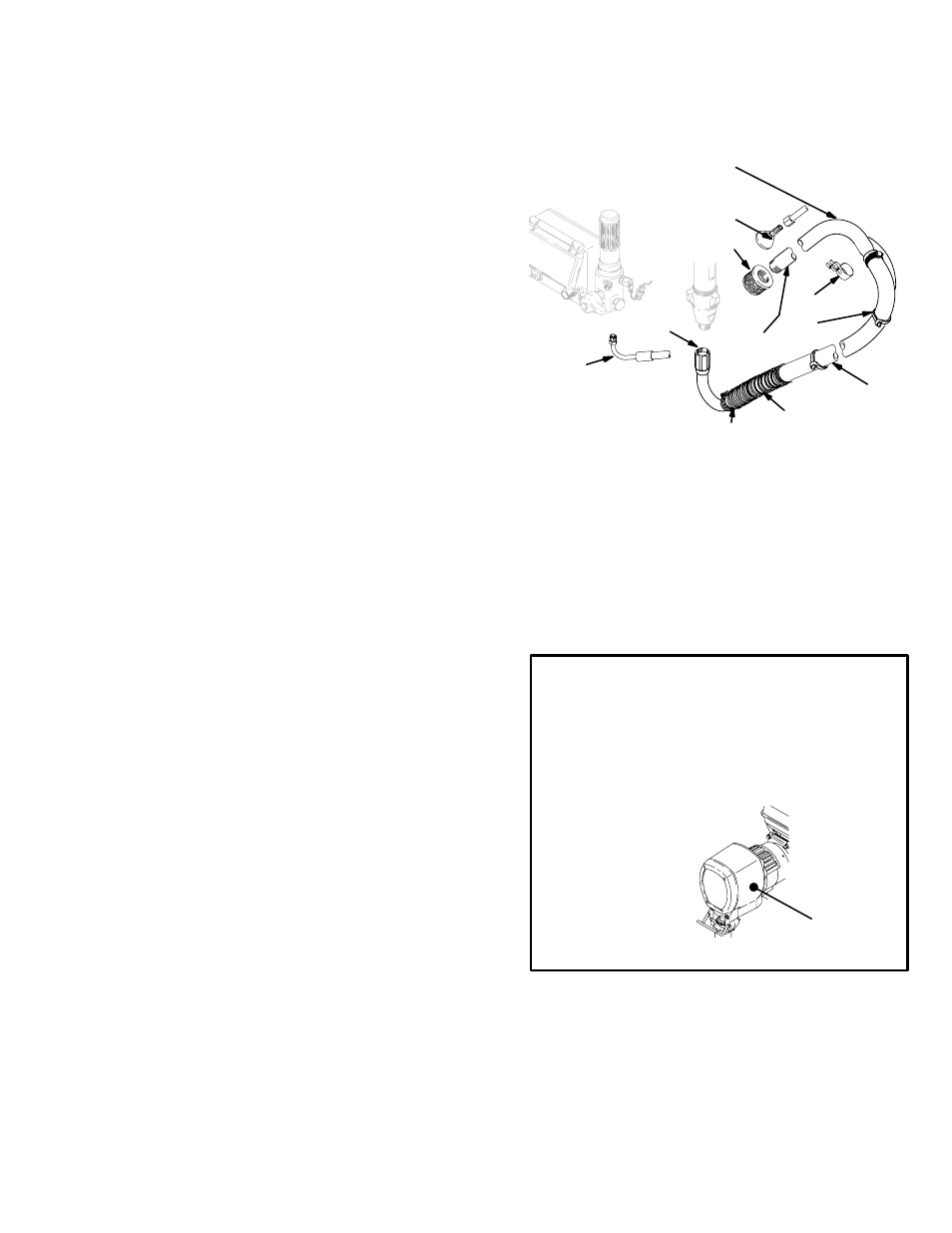

Parts – Lo-Boy Suction Set Kit
Model 245507
Includes items 401 to 407
Ref.
No.
Part No.
Description
Qty.
401
241124
.TUBE, suction, 5 gallon (20 liter)
1
includes 401a through 401e
401a
240513
..SWIVEL, tube, inlet
1
401b
176450
..GUARD, hose
1
401c
194306
..HOSE, fluid
1
401d
101818
..CLAMP, hose
2
401e
170957
..TUBE, suction
1
402
245611
.HOSE, drain, includes 406
1
403
194194
.CLIP, spring
1
405
181072
.STRAINER
1
406
241920
.DEFLECTOR
1
407
144958
.STRAP, tie
1
401c
405
406
402(REF)
402
403
407
401e
401a
401d
401b
401
ti1851a
Technical Data
Honda GX160 Engine
Power Rating @ 3700 rpm
ANSI
5.5 Horsepower
. . . . . . . . . . . . . . . . . . . . . . .
DIN 6270B/DIN 6271
NA
2.9 Kw – 4.0 Ps
. . . . . . . . . . . . . . . . . . . . . .
NB
3.6 Kw – 4.9 Ps
. . . . . . . . . . . . . . . . . . . . . .
Maximum Working Pressure
3300 psi
. . . . . . . . . . . . . .
(227 bar, 22.7 MPa)
Cycles/Gallon (liter)
93 (25)
. . . . . . . . . . . . . . . . . . . . . . . .
Maximum Delivery
1.25 gpm (4.7 liter/min)
. . . . . . . . . .
Fuel Tank Capacity
0.95 gallons (3.6 liter)
. . . . . . . . . . .
Maximum Tip Size
1 gun with 0.041 tip
. . . . . . . . . . . . . .
2 guns with 0.028 tip
Inlet Paint Strainer
16 mesh (1190 micron)
. . . . . . . . . . .
Stainless steel screen, reusable
Outlet Paint Filter
60 mesh (250 micron)
. . . . . . . . . . . . .
Stainless steel screen, reusable
Pump inlet Size
3/4 npt (m)
. . . . . . . . . . . . . . . . . . . . . . .
Fluid Outlet Size
1/4 npsm from fluid filter
. . . . . . . . . . .
Wetted parts
zinc-plated carbon steel,
. . . . . . . . . . . . . .
PTFE, Nylon, polyurethane, UHMW polyethylene,
FKM, POM, leather, aluminum, tungsten car-
bide,nickle-plated carbon steel, stainless steel,
chrome plating
Dimensions
Model 233709
Weight (dry, without packaging)
170 lb (77 kg)
. . . . . . .
Height
41 in. (104.1 cm)
. . . . . . . . . . . . . . . . . . . . . . . . . .
Length
39 in. (99.1 cm)
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Width
22 in. (55.9 cm)
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
French
194931
Spanish
194932
German
194933
Greek
194934
Korean
194935
English
194125
DANGER LABELS
The English language DANGER label is on your
sprayer. If you have painters who do not read En-
glish, order one of the following labels to apply to
your sprayer. The drawing below shows the best
placement of these labels for good visibility.
Order the labels directly from your Graco distributor.
Apply other
language here
03497A
