Cleaning the overflow filter
2. Take off the corrugation pipe.
Dismantle the upper part of the
corrugation pipe inside the
overflow filter ( as indicated in
Figure 1).
3. Cleaning the overflow filter
Clean the lint around the filter
and flush with tap water.
4. Install the overflow filter.
(1).Install the corrugation pipe.
(2).Insert the mounting plate at
the bottom of the filter into
the valve cover.
(3).Hang up the hook at the left
upper side.
(4).Push the upper part in as
indicated in Figure 2.

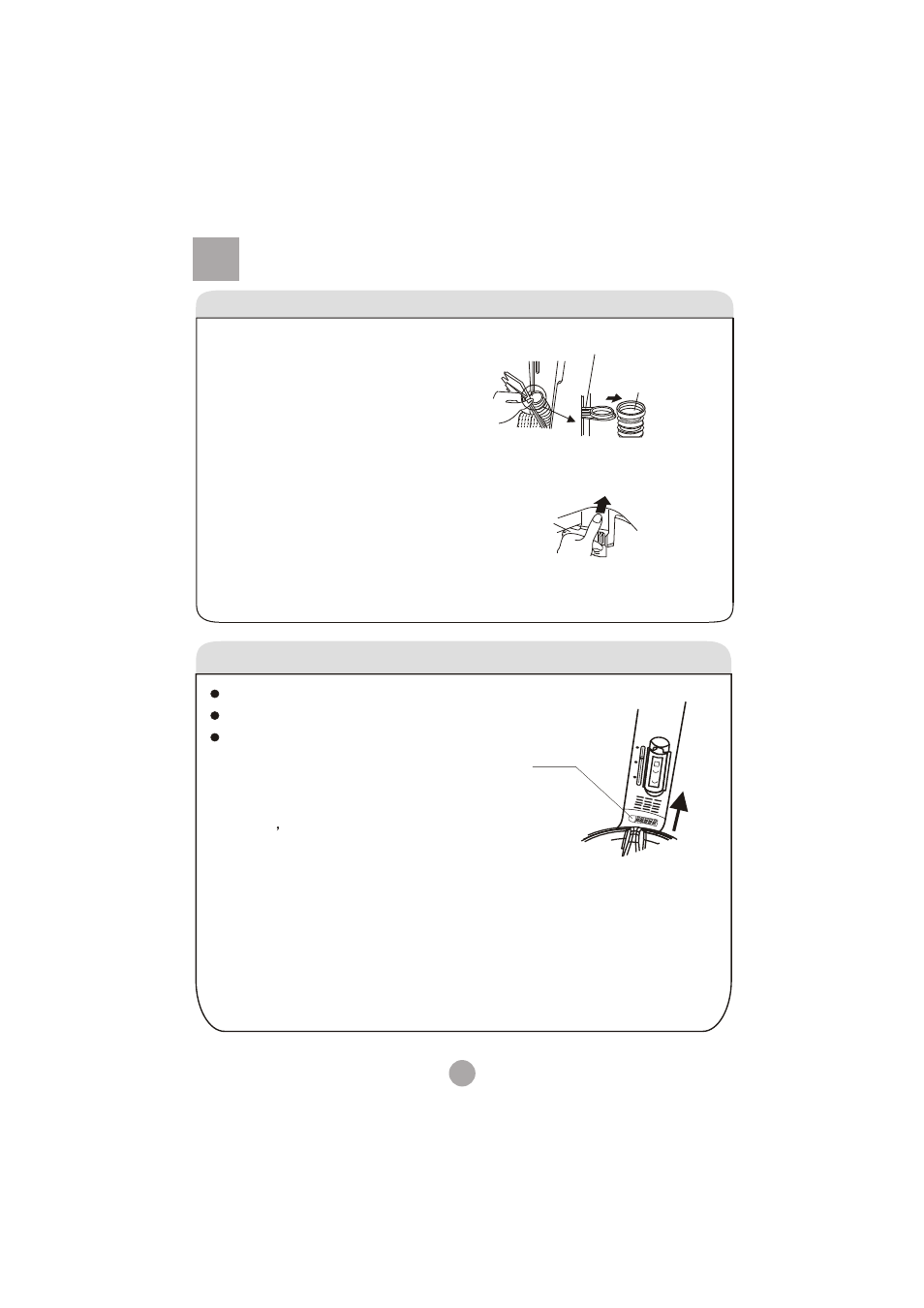

Corrugation
Pipe
Hook
Figure 1
Figure 2
Water level
adjusting lever
Groove
Clean the safeguard cover
The safeguard cover must be used during washing.
The surface must be cleaned every time after washing.
The underside of the cover must be cleaned every
period of time.
1. Take off the safeguard cover
Use the thumb to fasten the indicated
groove
then take it out as the direction
of the figure.
2. Clean the underside of the cover
Use the nipper or other spindly clamps to take out the lint ,
sundries etc.
3. Install the safeguard cover
After finish cleaning , fasten the safeguard cover to the tub bottom,
infirm the claw install correctly and hard to fall off.
