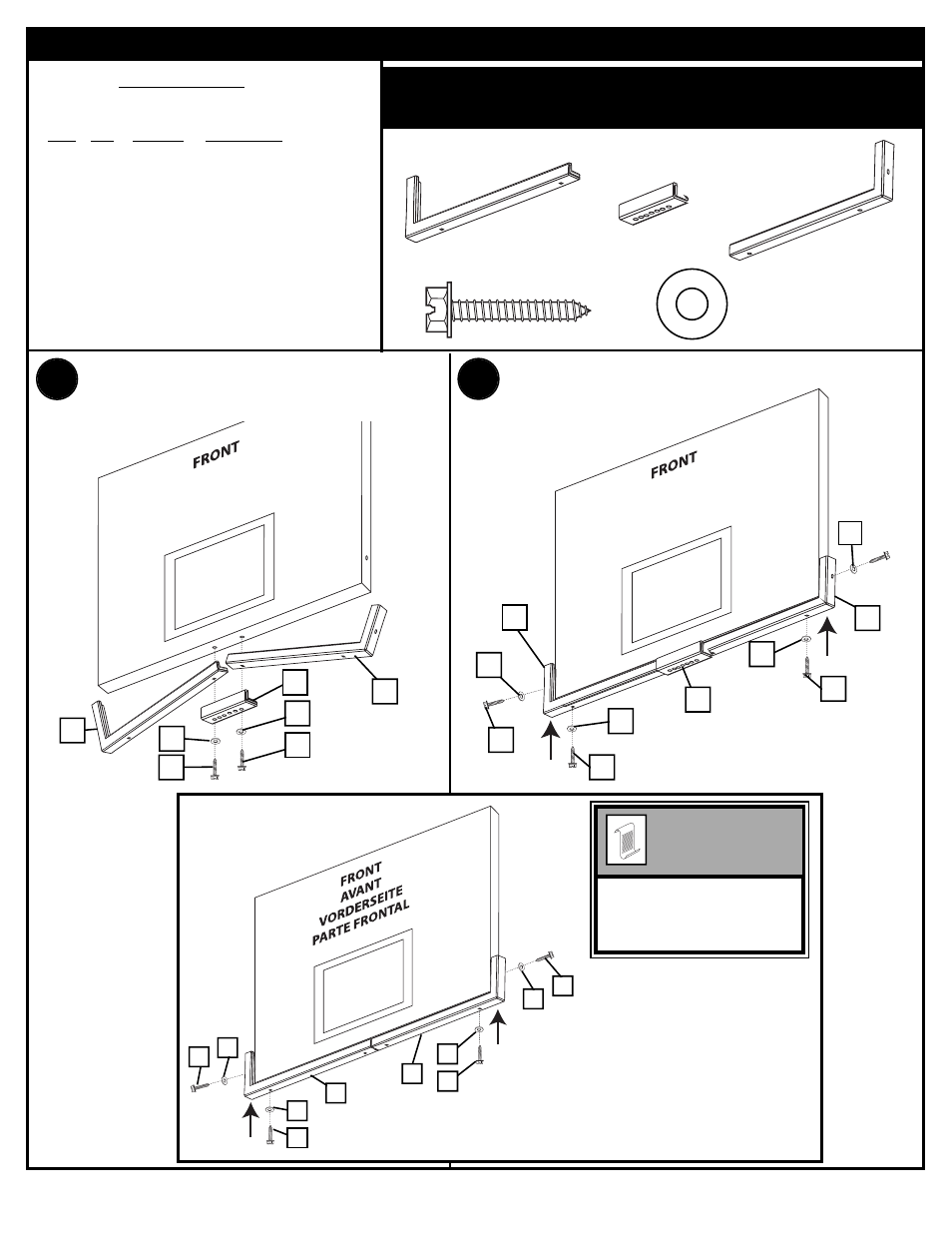

Attach left and right pad sections to board using screws and
washers as shown. Using the holes which line up for your board size, attach
center pad section to left and right sections and board
using screws and washers as shown.
2. 1.
A.
NOTE:
Part # 201580 (3) is not used on
44” acrylic backboards as shown in
Figure A.
4
5
5
4
4
5
1
2
5
4
PARTS LIST
(See Hardware Identifier)
#4 (6)
#5 (6)
#1 (1)
#2 (1)
#3 (1)
Item Qty. Part No. Description
1 1 20157801 Board Pad, Left Section
2 1 20157901 Board Pad, Right Section
3 1 201580 Board Pad, Center Section
4 6 201596 Screw, 1/4 x 1.25
5 6 206303 Washer, Flat, 1/4
BOARD PAD
HARDWARE IDENTIFIER
