Hunter Fan Parts & Hardware 25120 User Manual
Parts guide, Fan parts, Hardware
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-02-015 09-22-2010 •
©
2010
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Parts List
Model #
25120
Asm. Dwg. #
99642-01
Finish
Brushed Nickel
Item Name
Qnty
Part #
Hanging System Kit
1
96759-09
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Low Profile Washer
Canopy Screw
Wood Screw
Wood Screw
Flat Washer
Mounting Isolator
*
Screw, Low Profile
Switch Housing Assembly
1
99645-01
Blade Iron Set
1
92565-05
Blade Set
1
G0761-31
Screw, Blade Iron Armature
11
63755-05
Hardware Kit
1
99642-00-860
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit
1
65666-01
Light Kit Assembly
1
99646-01
Pull Chain
2
63756-20
Pull Chain Pendant
1
G0090-01
Pull Chain Pendant
1
G0091-01
Bottom Cap
1
64349-02
Finial
1
64350-02
Globe/Shade
1
89398-01
Hardware

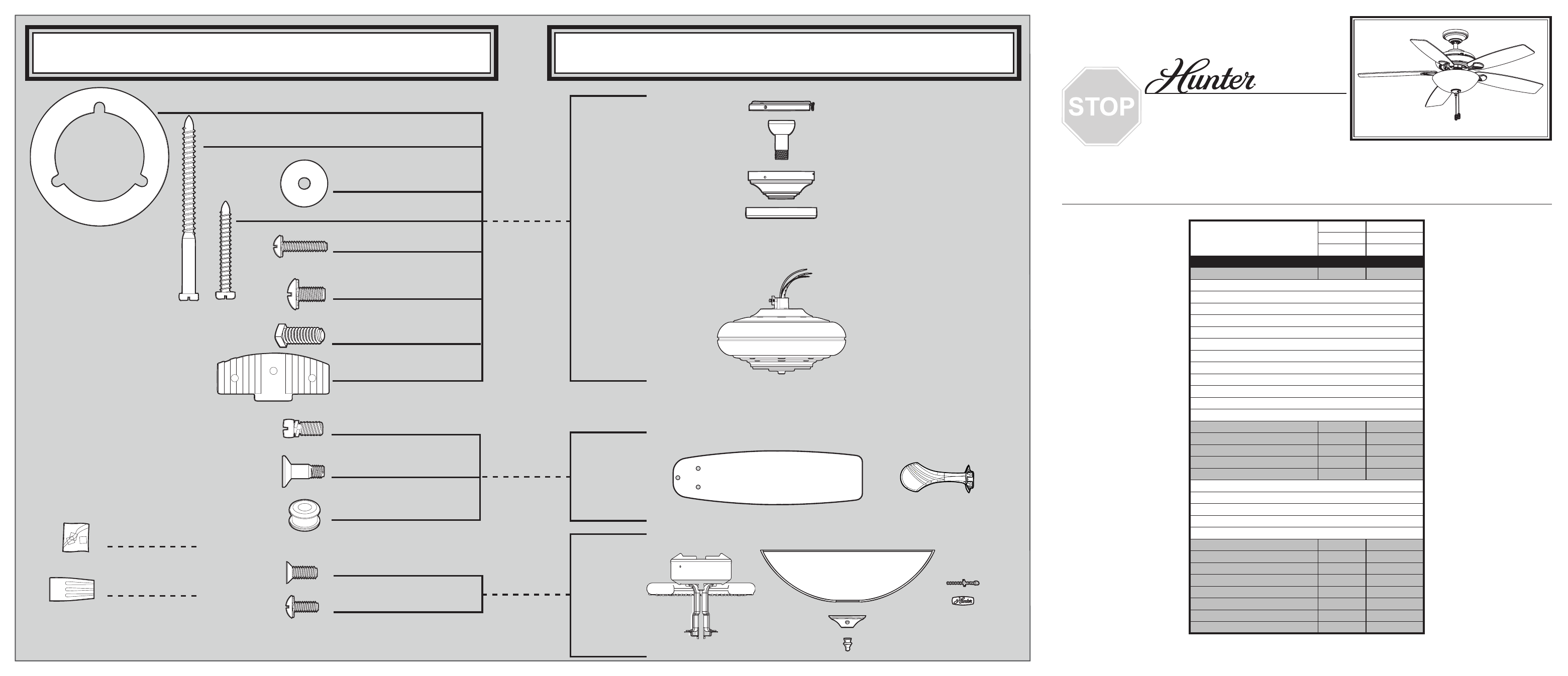

(Drawn to Scale)
Hanger
Bracket
Assembly
Blade
Assembly
Switch
Housing
Assembly
Screw, Switch
Housing Assembly
Screw,
Machine, 6-32
Locking Screw
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Canopy Screw
Flat Washer
Screw, Blade
Assembly
3” Wood Screw
Low Profile
Washer
Balancing
Kit
Wire
Connector
1.5” Wood Screw
Blade
Grommet
x 1
x 2
x 4
x 2
x 3
x 4
x 1
x 11
x 4
x 16
x 3
x 3
x 1
x 4
x 16
