33
ENGLISH
Y
P b
P r
The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features
of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs.

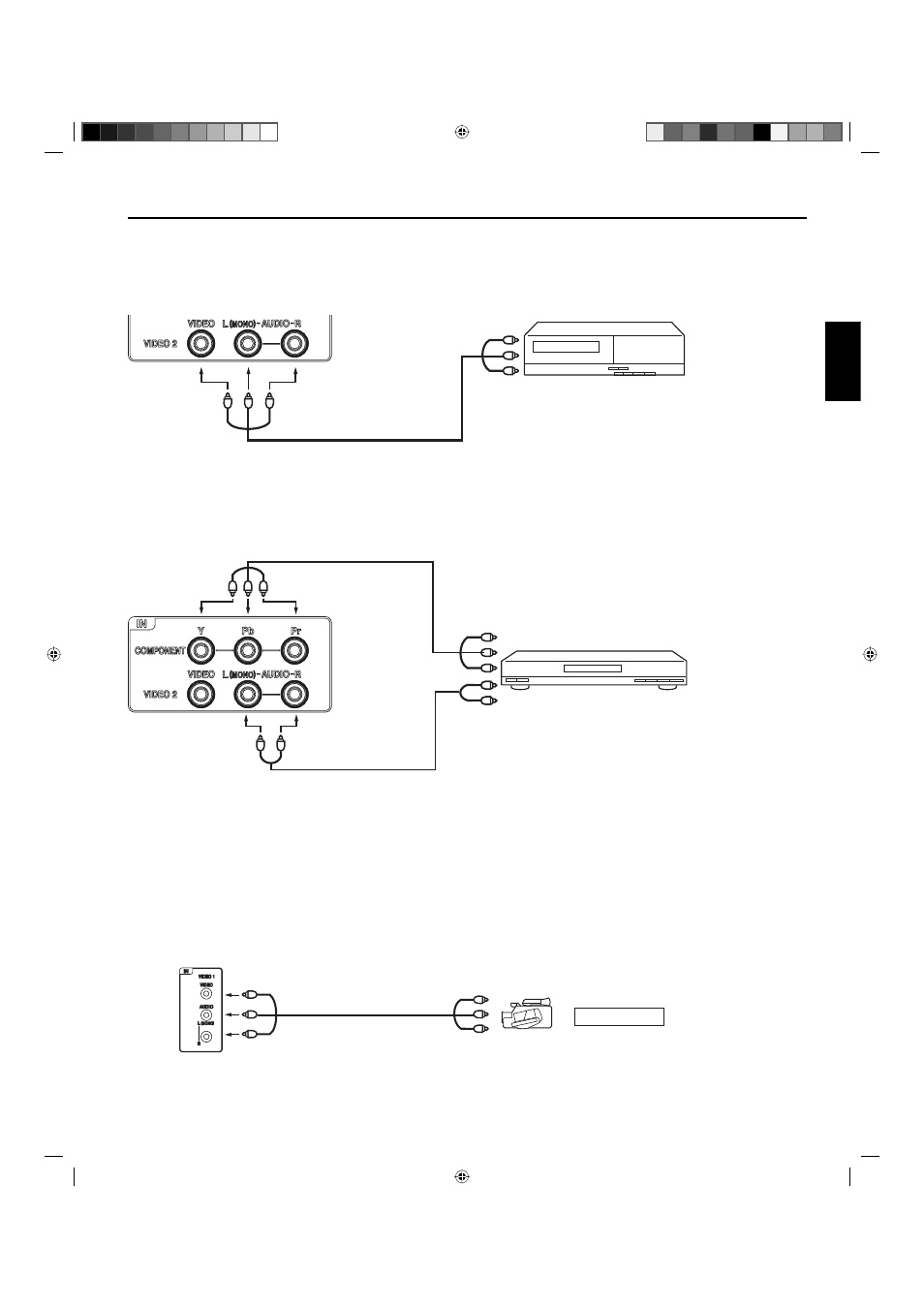

To connect the unit to a VCR
Connections to other equipment
To connect the unit to a DVD player with Component Video Input
You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD player with the
COMPONENT video cables (not supplied).
Rear of the unit
To Video/Audio OUT
Video/Audio cord (not supplied)
To VIDEO/AUDIO IN
To Component OUT
Audio cord (not supplied)
Component video cord (not supplied)
To AUDIO IN
Rear of the unit
To COMPONENT IN
To Audio OUT
NOTE:
Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and 480p/720p progressive
signals.
•
VCR
DVD
or GAME CONSOLE
To connect the unit to a camcorder, or a game console
To playback from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video games. However, due to the wide variety of signals generated by these
devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You’ll need
to consult each component’s Owner’s Manual for additional information.
Left of the unit
Video/Audio cord
(not supplied)
To VIDEO/AUDIO IN To Video/Audio OUT
