-5- 598-1150-01
1
2
3
4
5
6
7
8
THIS END UP
1
2
3
4
5
6
7
8
MIN
MA
X
TY
PE
"D
"
TY
PE
"D
"
TY
PE
"D
"
2.0"
Inside
Transmitter
Transmitter Battery Replacement
Install four alkaline AAA batteries. See
diagram inside transmitter for correct bat-
tery orientation.

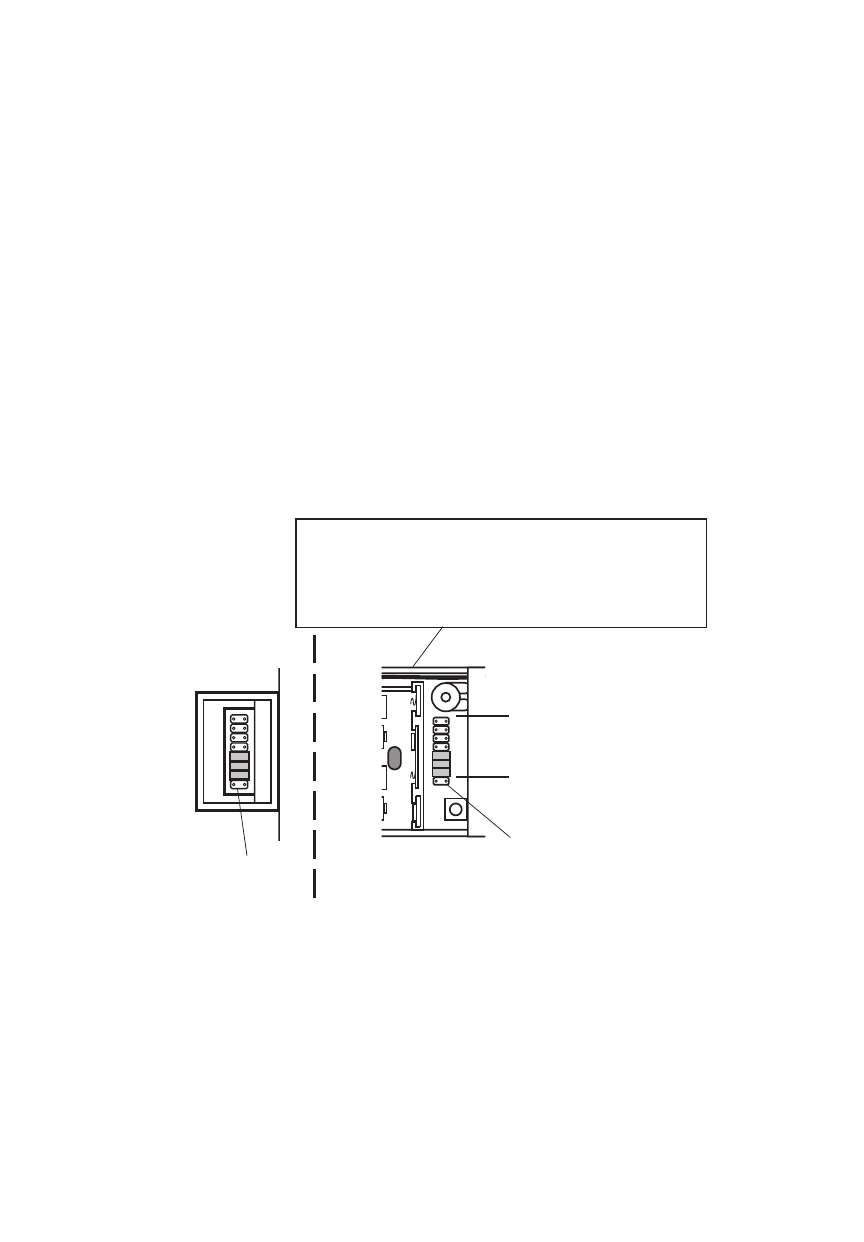

* Code Settings 1-7 Must Match
Both Transmitter and Chime
Tune Setting
Tune Setting
Note: Some models might require
the use of tweezers to remove and
replace the jumpers.
Tune Settings
Your ACE ® wireless chime has different selectable tunes: Ding (one note), Ding-
Dong (two note), or Westminster (eight note) (Available on selected chimes). The
factory setting is for the Ding-Dong tune (or Westminster, when available). This tune
can be changed by following the instructions below.
•
Ding (one note tune)
Transmitter: Add a jumper to location 8.
•
Ding-Dong (two note tune)
Transmitter: Remove jumper from location 8.
Chime: Remove jumper from location 8.
•
Westminster (Eight note tune) (Available on selected chimes)
Transmitter: Remove jumper from location 8.
Chime: Add a jumper to location 8.
Note: All models have both front and back door tune capabilities. You may purchase
any ACE
® wireless push button for a second entrance.
Back of
Chime
