FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe
operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and
understood all safety instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ
from those on your own power tool

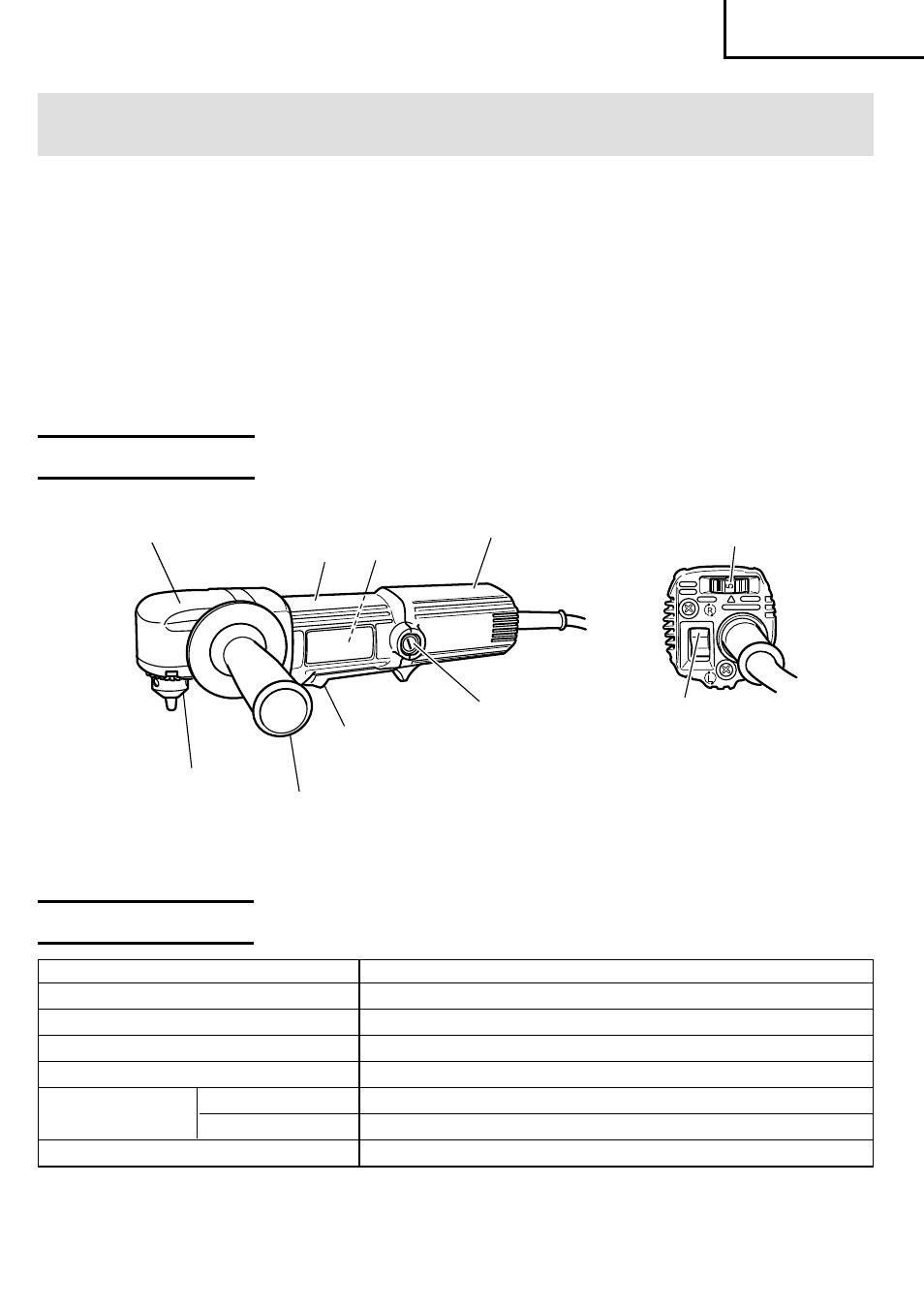

NAME OF PARTS
Fig. 1
Gear Cover
Housing
Drill Chuck
Nameplate
Dial
Reversing
switch lever
Switch lever
Side Handle
Taile Cover
Brush Cap
Motor Single Phase, Series Commutator Motor
Power Source Single Phase 115V AC 60 Hz
Current 4.6A
No-Load Speed 500–2300/min.
Drill Chuck Capacity 3/8" (10 mm)
Capacity
Steel 3/8" (10 mm)
Wood 7/8" (22mm)
Weight (without cord) 3.3 lbs(1.5 kg)
SPECIFICATIONS
