INSTALLATION MANUAL FOR INDOOR UNIT
28
B C

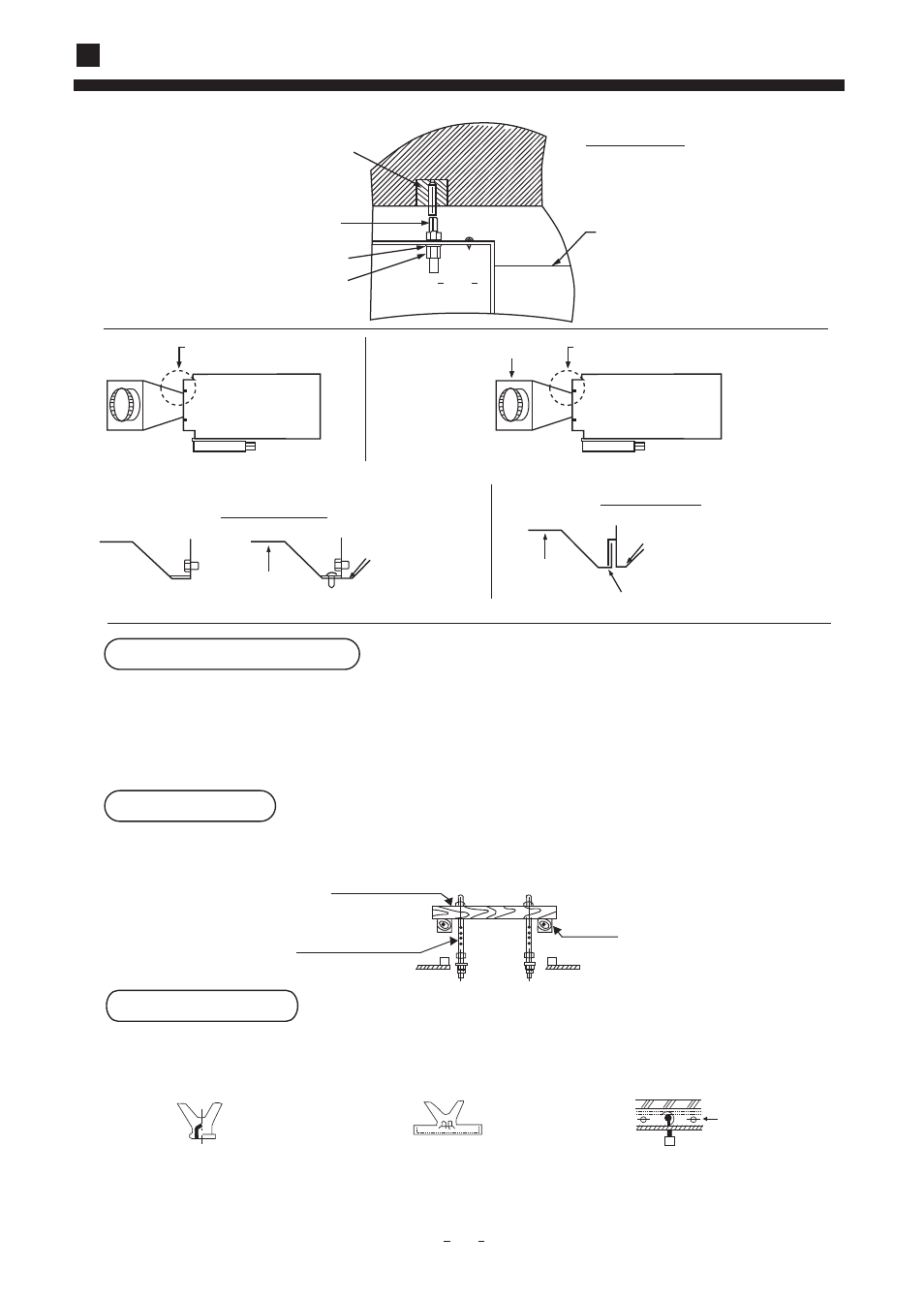

Air outlet grille
Top panel of unit
C amplified
Use screw to
fix top panel
(Figure 6)
B
Air supply passage
Rivet
Unit
M8 screw nut
M8 wide expansion screw bolt
(Figure 5) A amplified
B amplified
Air supply
passage
B
M8 wide lock washer
M8 hoisting screw
Install the hoisting screw
Use M8 or M10 hoisting screw (4, prepare on site) (When the height of hoisting screw is more
than 0.9m, you must use M10), their gaps refer to the dimension of air conditioner, according to
the original structure and the following method to install.
Wood structure
Put up the frame wood on the beam and mount the hoisting screws.
Beam
Use embedded parts and foot screw, etc to mount.
(Knife type
embedded part)
(Louver type embedded part)
(hoisting foot screw for
connection pipe)
Iron
Hoisting screw
Frame wood
New cement panel
Foot screw
