Havis-Shields C-3065-3 - Manual

1.125
28.58
2.344
59.54
2.500
63.50
3.156
80.16
1.125
28.58
2.343
59.51
3.156
80.16
3.000
76.20
2.346
59.58
2.500
63.50
2.500
63.50
3.063
77.79
.265, 6X
6.73
.313
7.94
.218, TYP
5.54
OBR, .281 X .500, 2X
ACTUAL SIZE

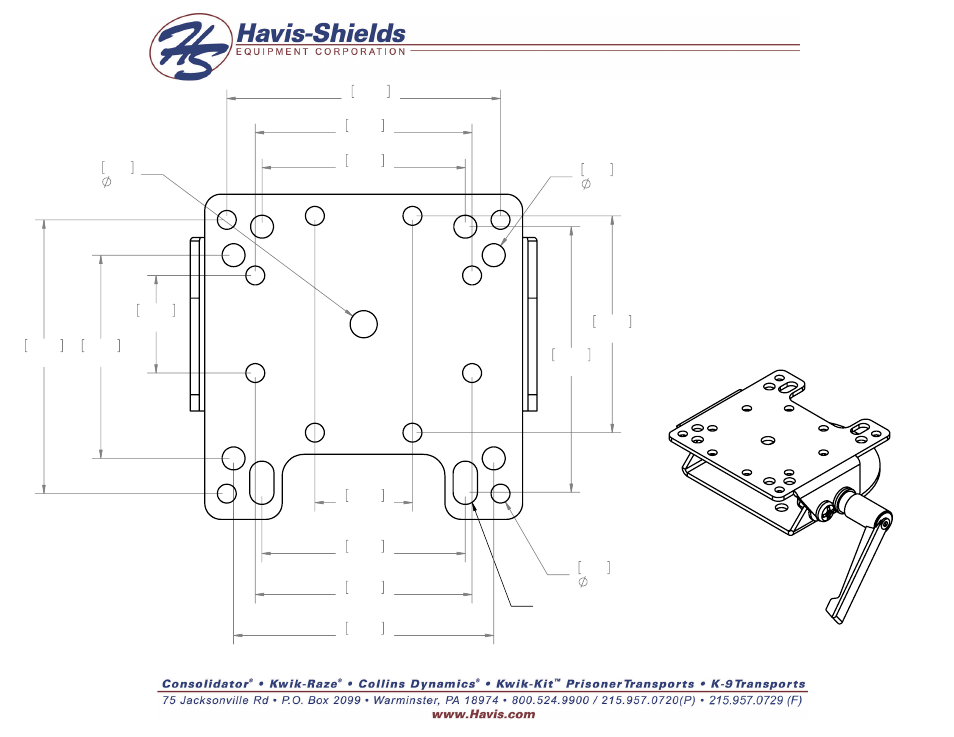

C-3065-3 TEMPLATE
LO PROFILE TILT/SWIVEL
ADAPTER
• USED TO MOUNT LAPTOP MOUNTING
PLATE TO TELESCOPING COMPUTER
BASE (TCB) OR STOUT MOUNT SERIES
• 360 DEGREE SWIVEL & 45 DEGREE TILT
• FIXED 1.375" HEIGHT
NO HANDLE
