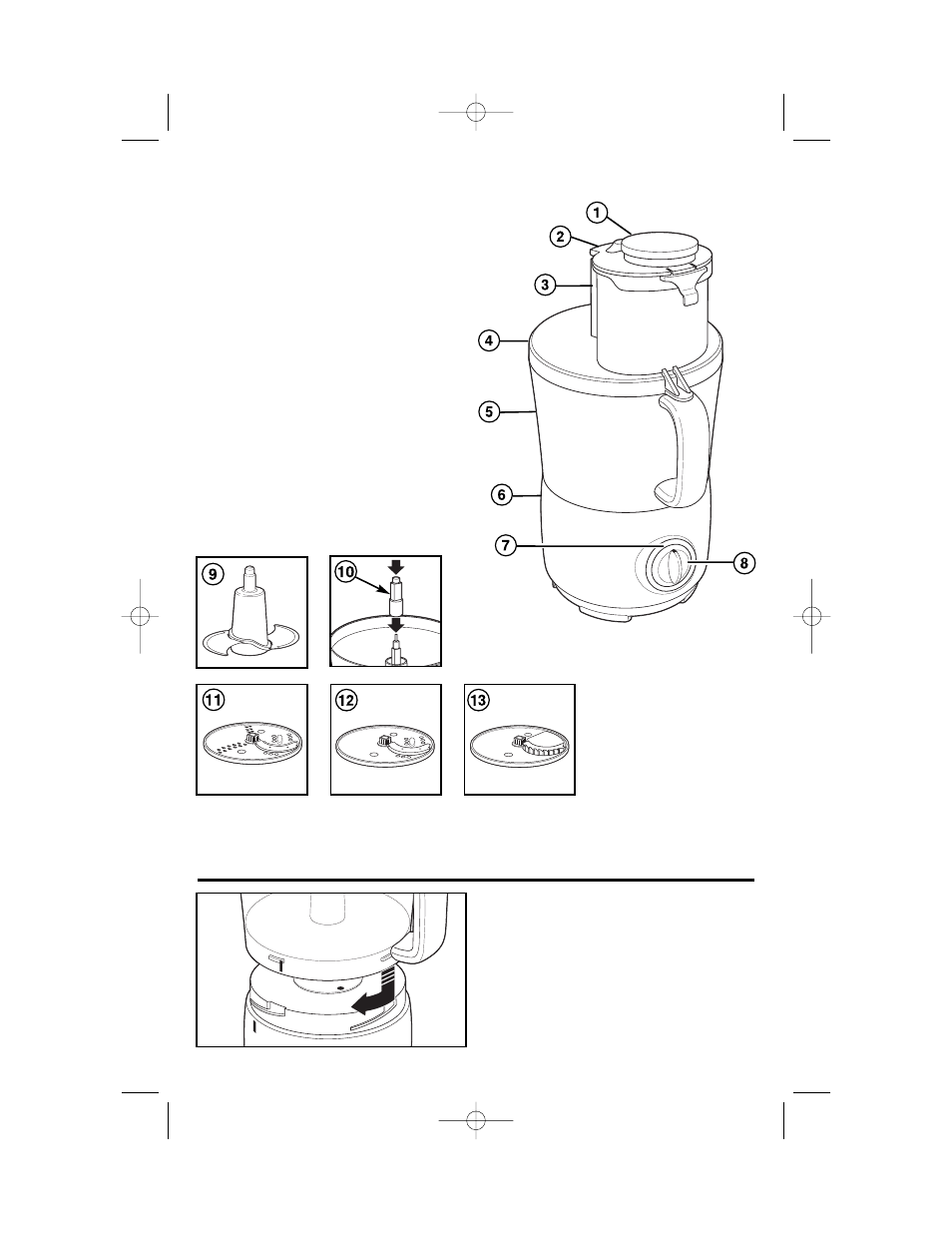

1. Food Pusher

2. Food Chute Lid

3. Food Chute

4. Bowl Lid

5. Bowl

6. Base

7. Ready Light

8. Control Dial

9. Chopping/Mixing Blade

10. Removable Drive Sleeve

11. 3.0mm Slicing Blade (Medium Shredding)

12. 6.0mm Slicing Blade*

13. French Fry Blade*

Parts and Features

Using Your Food Processor

How to Lock the Bowl

Align base and bowl as illustrated.
Turn bowl clockwise until it locks
into place. The bowl will lock onto
the base in 4 different positions for
user convenience.

NOTE: The food processor will not
work unless the bowl is locked into
position.

* Optional Feature

Some units may include

an additional 6.0mm slicing disc and/or
French Fry Blade.
