1. Remove the upper hinge cover and then using a Phillips screw driver remove the upper hinge
bracket by removing the 4 screws on the bracket. (on the right side).
2. Lift and remove the door.
3. Remove the bottom hinge bracket by removing the 3 hexagonal nuts. Be careful not to loose the
door level rings which are placed in the hinge bracket axle. (right side).
4. Remove the door support bracket from the opposite side (left side), by removing the 2 screws.
5. Remove the lower door stopper as shown in the figure and install on opposite side of door.
6. To install the bottom hinge bracket on the opposite side (left side), you will also have to remove
one screw hole plug from the left side.
7. Install the door support bracket on the opposite side (right side), place the screw hole plug in the
bottom hole.
8. Carefully align the bottom hinge axle hole on the door with the axle of the lower hinge bracket.
Remember to have the door level rings in place before you place the door on its axle.
9. Install the upper hinge bracket (left side hinge bracket supplied as an accessory) on the left side.
10. Make sure the door is aligned and then tighten the screws.

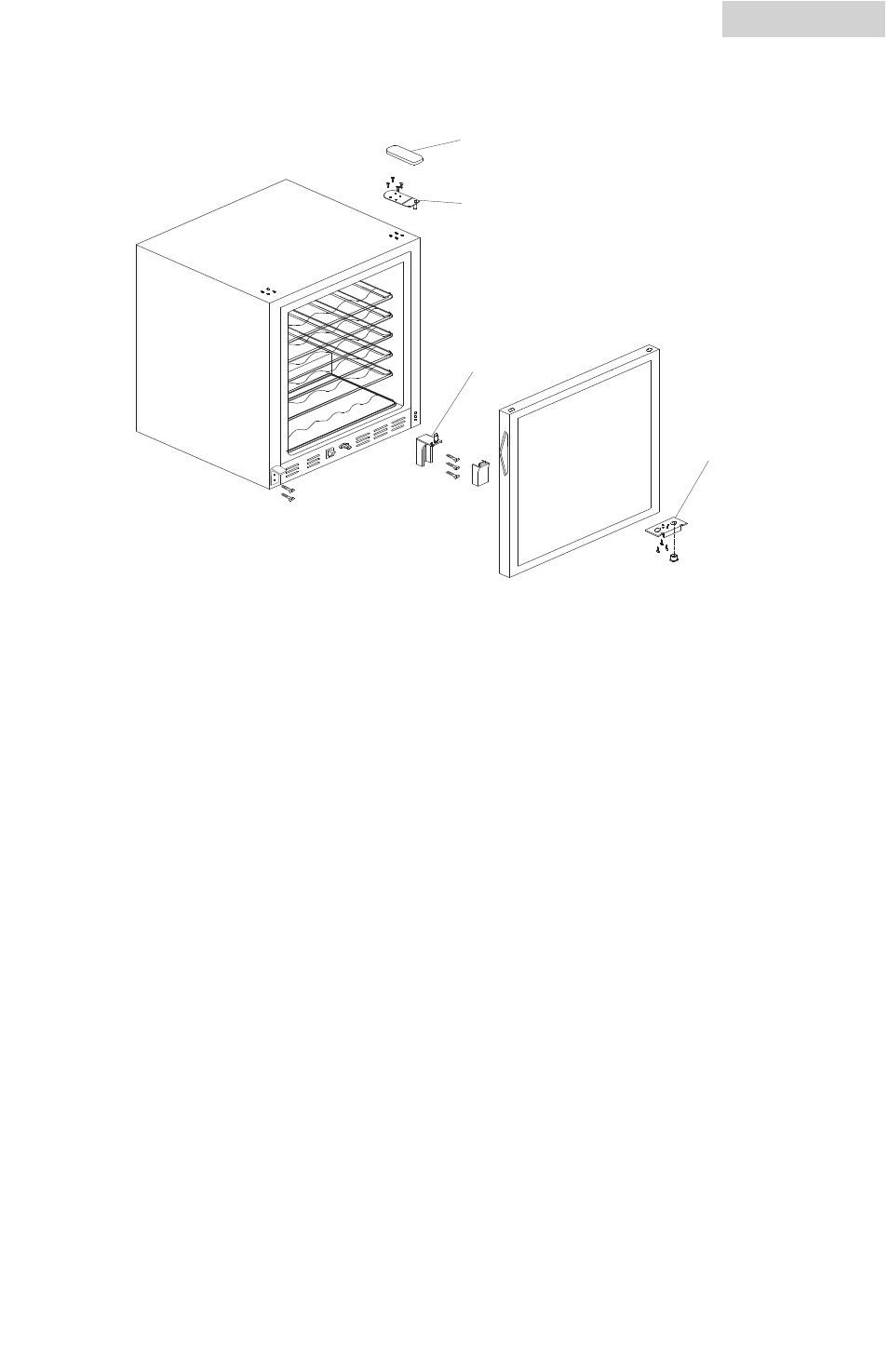

Upper hinge cover
Upper hinge bracket
Bottom hinge
bracket
Door
Stopper
DOOR REVERSAL
