FIRST TIME USE
17

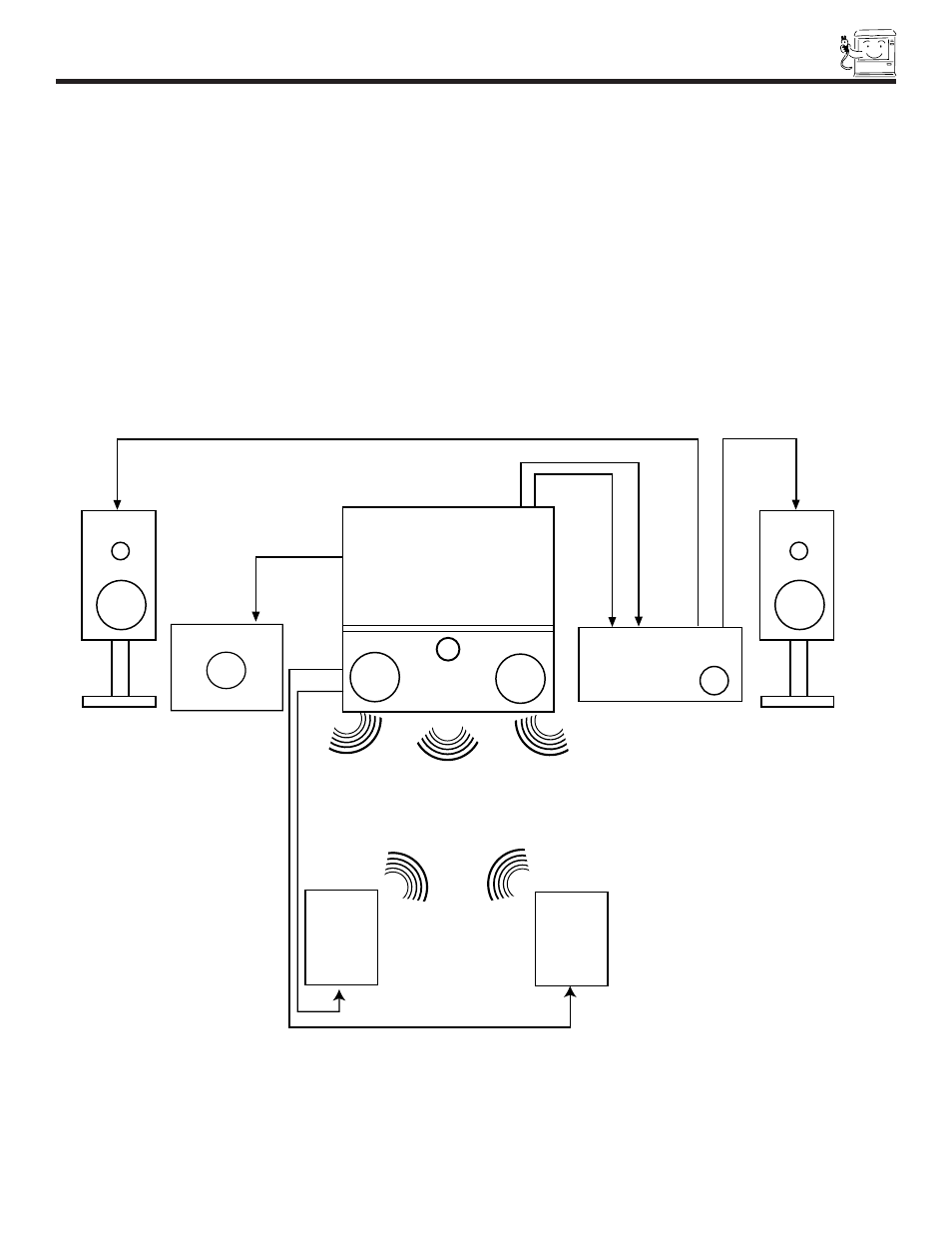

Match the numbers below to the diagrams for speaker placement and refer to the table on page 18 for the different surround sound
requirements. (See pages 65-67 for SURROUND functions.)
ቢ
The television’s internal speakers.
ባ
The television’s internal center channel speaker, which is on only when the television is in SURROUND-STADIUM, SURROUND-
ROCK ARENA, SURROUND-JAZZ CLUB, SURROUND-PRO LOGIC, or SURROUND-DOLBY DIGITAL mode.
ቤ
These speakers are connected to a separate audio amplifier. Use the AUDIO TO HI-FI output on the TV.
ብ
These speakers are connected to a rear speaker 8-Ohm output on the TV.
ቦ
This sub woofer is connected to the SUB WOOFER output on the TV.
ቤ
ቤ
L R
IN
STEREO SYSTEM
AMPLIFIER
L R
OUT
L
R
ብ
RS
ብ
LS
IN
SUB WOOFER
ቦ
ᕃ
ባ
ᕃ
Models:
61SWX10B, 61SWX12B
53SWX10B, 53SWX12B
