OM-222 Page 16

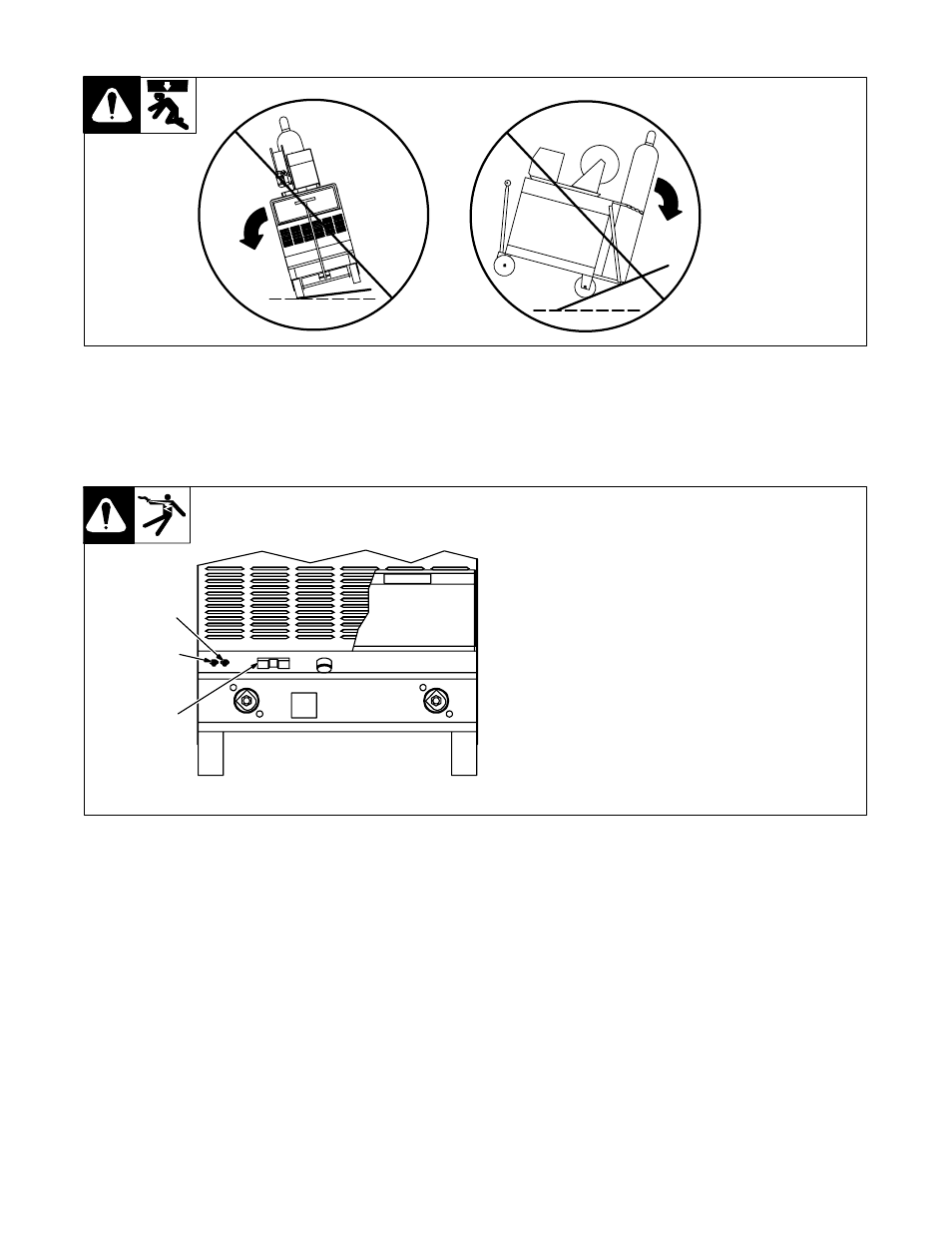

3-6. Tipping
Y Be careful when placing or
moving unit over uneven
surfaces.
3-7. 115 VAC Receptacle And Circuit Breakers
Ref. ST-800 101-D
Y Turn Off power before
connecting to receptacle.
1 115 V 15 A AC Receptacle
RC9
Power is shared between RC9 and
Remote 14 receptacle RC8 (see
Section 3-10).
2 Circuit Breaker CB1
3 Circuit Breaker CB2
CB1 protects the 115 volts ac por-
tion of RC8 and RC9 from overload.
CB2 protects the 24 volts ac portion
of RC8 and Remote Power On/Off
from overload.
Press button to reset breaker.
1
3
2
