OM-230 261 Page 9
SECTION 3 − INSTALLATION
3-1. Specifications
Wire Diameter Range
Approximate
Wire Feed
Range
Cooling
Method
Maximum Spool
Size
Weld Circuit
Rating
Overall
Dimensions
Weight
.030 Thru .035 in
(0.8 Thru 0.9 mm)
Aluminum Wire
Or Flux Cored Wire
.023 Thru 035 in
(0.6 Thru 0.9 mm)
Solid Wire
115 To 715 ipm
(4.1 To 20.4
mpm)
Air Cooled
4 in (102 mm)
Diameter
100 Volts, 150
Amperes, 60%
Duty Cycle
Using Argon
Shielding Gas
Length:
11-1/2 in (291 mm)
Width:
2-1/4 in (57 mm)
Height:
8 in (203 mm)
7.5 lb (3.4 kg)
Gun With Cable

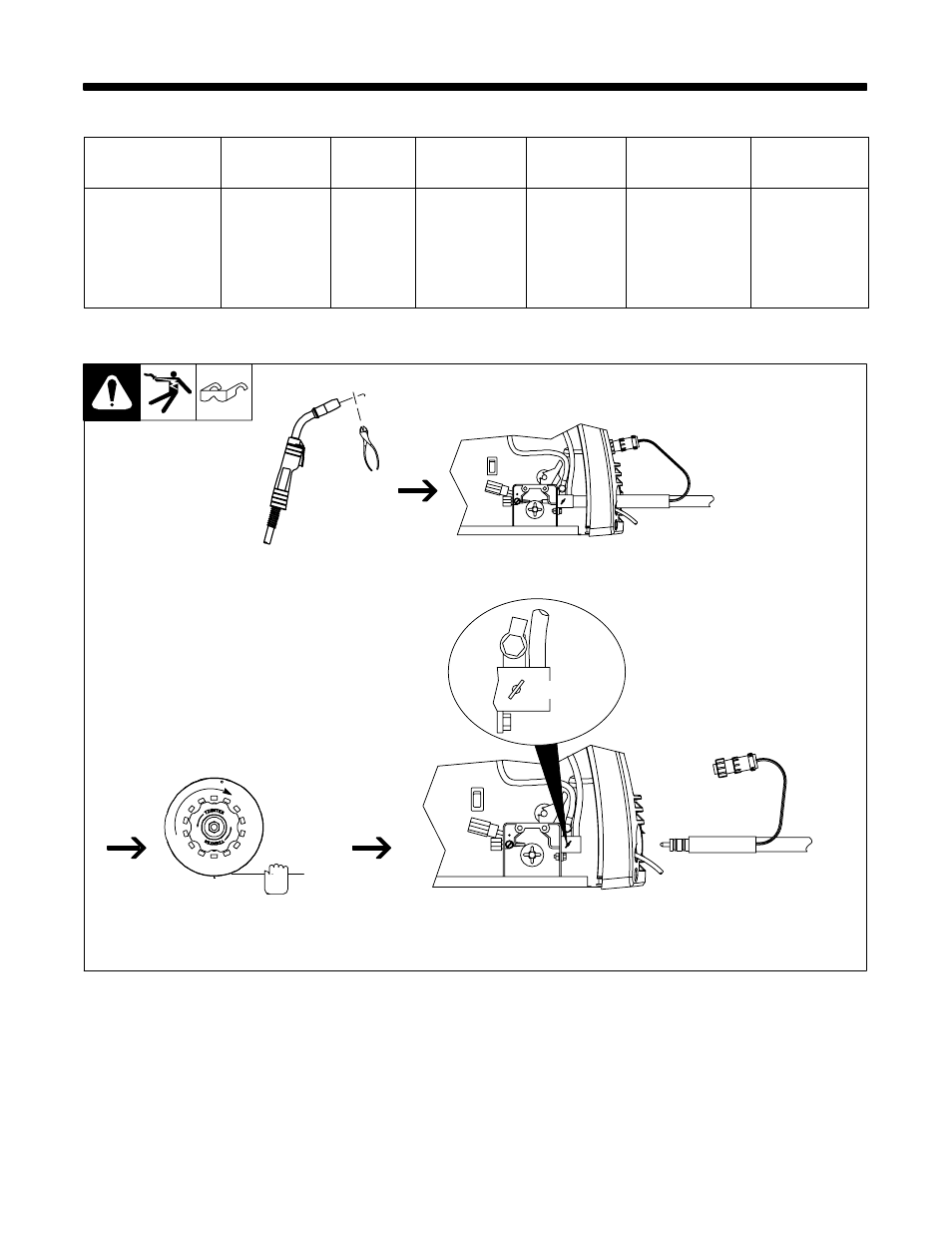

3-2. Removing MIG Gun From Handler 210
Open Pressure Assembly
.
Hold wire tightly to keep it
from unraveling.
Rewind Wire Onto Spool, Fasten
End Of Wire To Spool
Cut Off End Of Wire
Loosen Thumbscrew, Disconnect Gun
Trigger Plug, And Pull Gun From Unit
Ref. 804 686-A
Thumbscrew
