EN 17 CONTROLS AND INSTRUMENTS
correspond to just as many cutting heights. Their values are indicated in the
“Specifications table” (
☛ Chapter 9).
– To go from one height to another, press the release button at the end of the
lever.
4.7 P
USH
-
BUTTON FOR REVERSE MOWING
By keeping the push-button pressed, it is possible to engage the reverse gear and
go backwards even with the blades engaged, without causing the engine to stop.

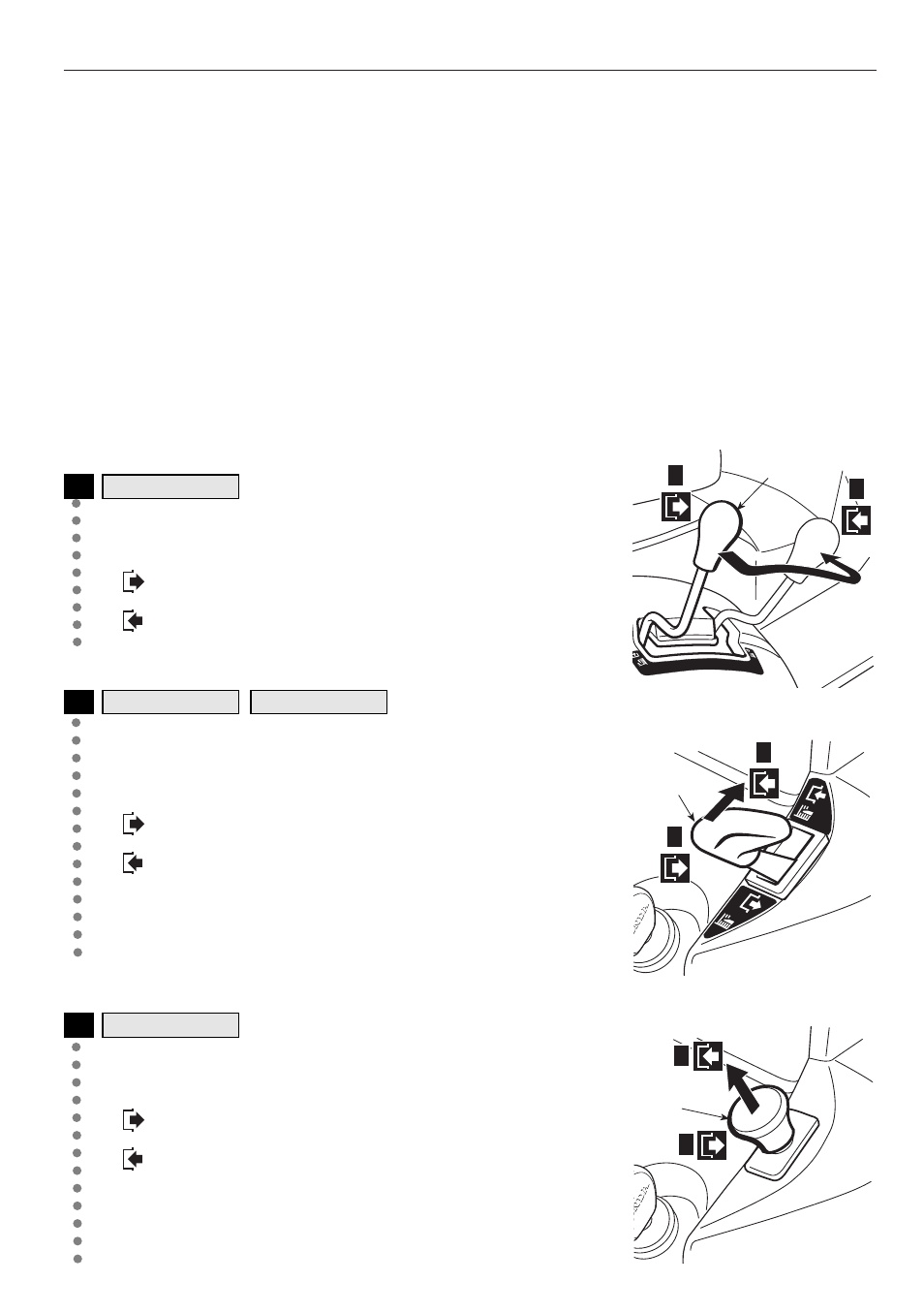

4.8 B
LADE ENGAGEMENT AND BRAKE CONTROL
The lever (4.8.1) has two positions, as shown on the
label and correspond to:
«A» = Blades disengaged
«B» = Blades engaged
The lever (4.8.2) inserts the blades with a pneumatic
clutch and has two positions, as shown on the label.
They correspond to:
«A» = Blades disengaged
«B» = Blades engaged
– The “Blades engaged” condition is indicated by a
pilot lamp (4.10.c).
The mushroom switch (4.8.3) is for engaging the
blades by an electromagnetic clutch:
«A» Pressed = Blades disengaged
«B» Pulled = Blades engaged
– The “Blades engaged” condition is indicated by a
pilot lamp (4.10.c).
HF2620
◊•• ➤
HF2417
◊••
HF2315HME
➤
HF2•••SBE
➤ A
B
4.8.1
A
4.8.2
B
A
4.8.3
B
