Huffy 2145731 - Manual (Page 13)

03/04 P/N 214573 13

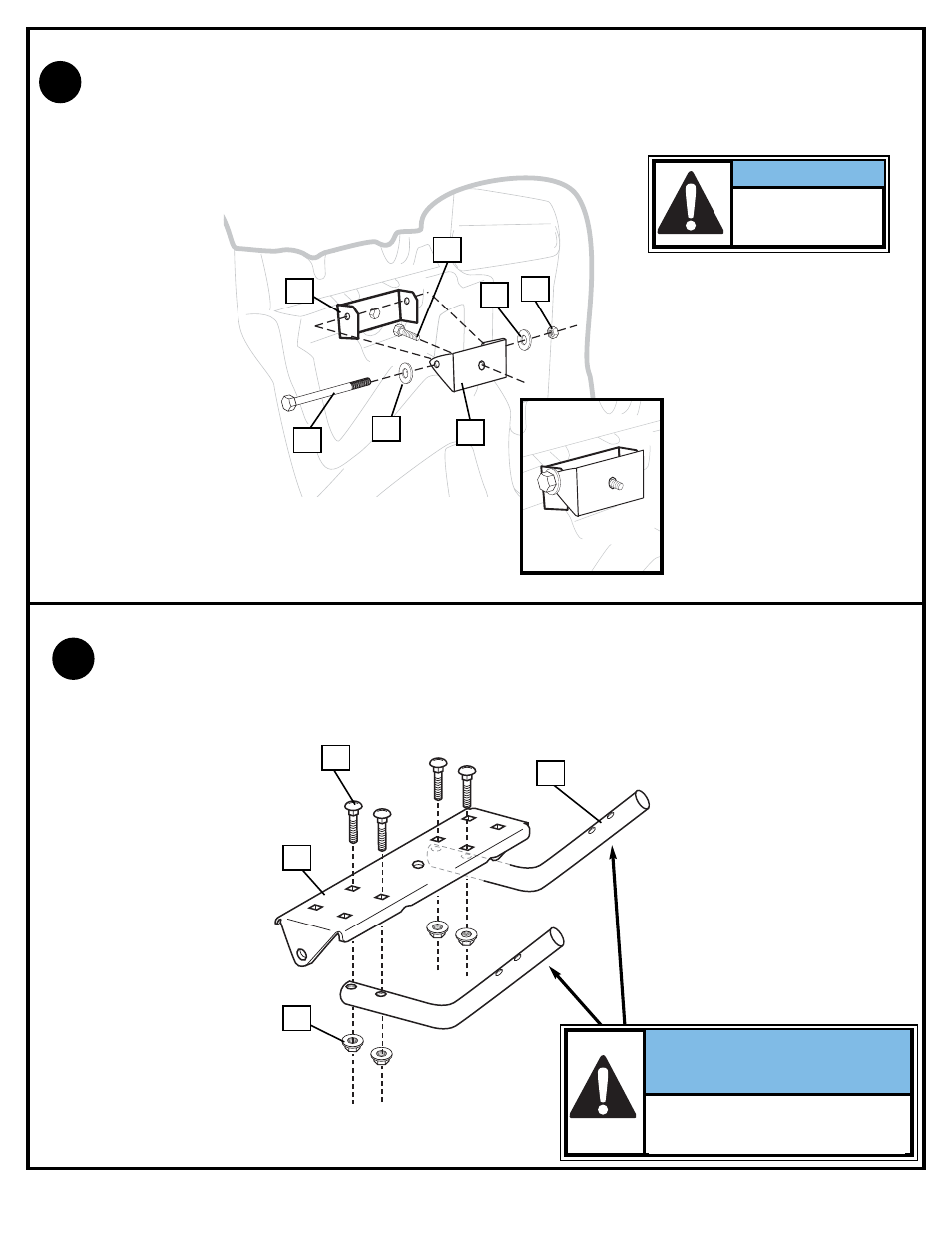

Insert bolt (21) through lower pivot bracket (22) as shown, bolt (21) will be secured during step 13.
Carefully place base assembly on its side. Install lower pivot bracket (22) with bolt (23), washers
(20) and lock nut (8) as shown.
Secure both hinge tubes (24) to second wheel bracket (25) with carriage bolts (26) and
flange nuts (15).
18
23
20
22
21
20
8
26
25
15
24
10.
11.
IMPORTANT!:
DO NOT OVER
TIGHTEN
IMPORTANT!:
WICHTIG!:
¡IMPORTANTE!:
NOTE ORIENTATION
NOTEZ L'ORIENTATION.
DIE KORREKTE AUSRICHTUNG BEACHTEN.
NOTE LA ORIENTACIÓN.
