Hitachi Koki USA DS 18DL User Manual
Page 85
85

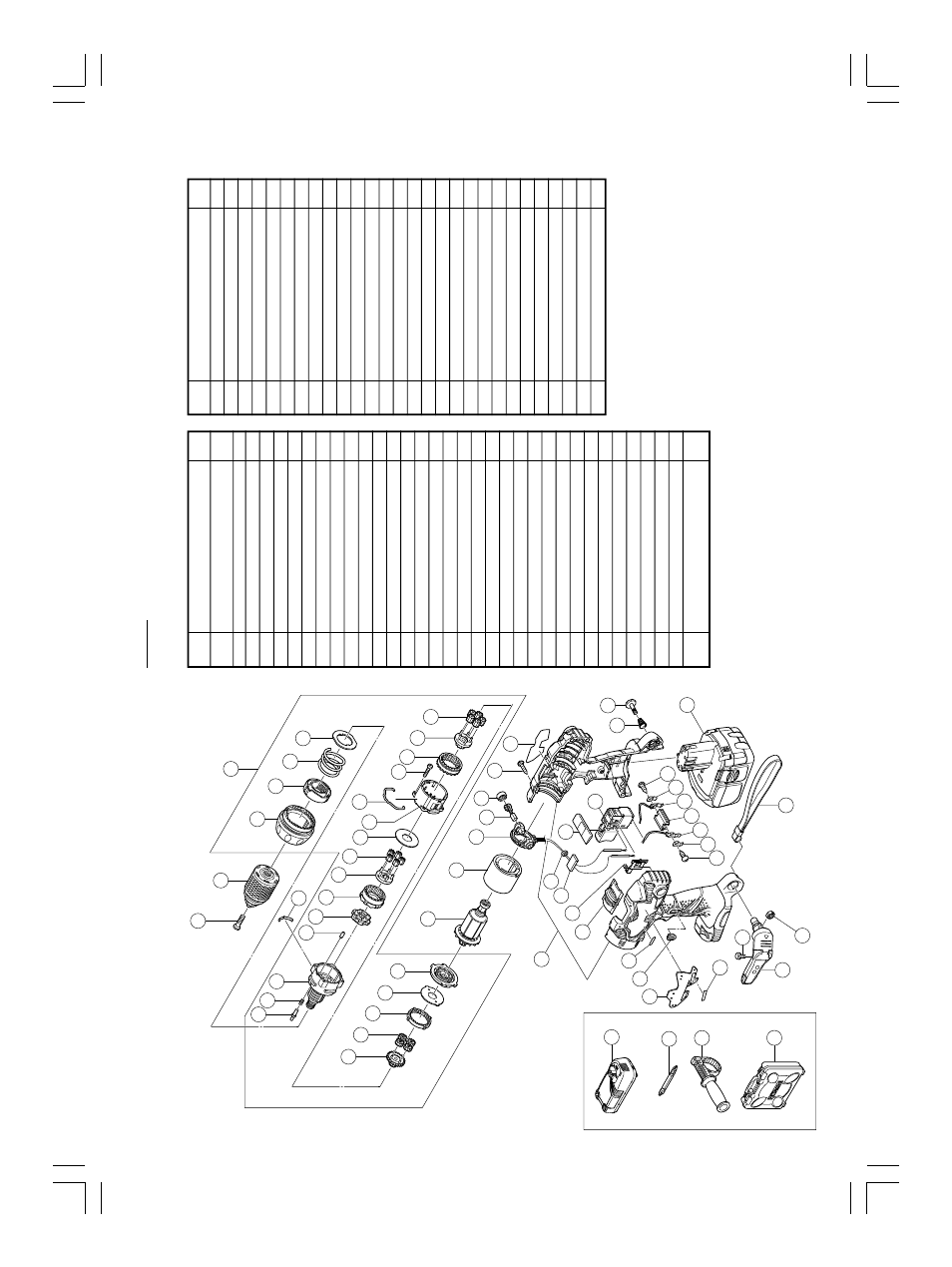

DS18DL
46
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
37
38
39
40
41
42
47
47
48
48
49
50
54
55
53
56
57
58
59
501
502
503
504
36
51
44
45
43
Item
Part Name
Q’ty
No.
35
NAME PLATE
1
36
HOUSING (A).(B) SET
1
37
PLATE (A)
1
38
LEVER (A)
1
39
HITACHI LABEL
1
40
SHIFT KNOB
1
41
LEVER (B)
1
42
SUPPORT (D)
1
43
FERRITE CORE
1
44
PUSHING BUTTON
1
45
DC-SPEED CONTROL SWITCH
1
46
MODEL SEAL
1
47
TAPPING SCREW D4X10
2
48
HOLDER SPRING
2
49
TERMINAL
1
50
TERMINAL PIECE
1
51
TERMINAL
1
53
V-LOCK NUT M5
1
54
HOOK ASS’Y (W/LIGHT)
1
55
TAPPING SCREW D2X6
2
56
STRAP
1
57
HOOK SPRING
1
58
SPECIAL SCREW (A) M5
1
59
BATTERY EBM1830
1
501
CHARGER (MODEL UC18YRL)
1
502
+ DRIVER BIT NO.2 65L
1
503
SIDE HANDLE
1
504
CASE
1
Item
Part Name
Q’ty
No.
1
SPECIAL SCREW (LEFT HAND)
1
M6X23
2
DRILL CHUCK 13VLRL-N
1
3
GEAR BOX ASS’Y
1
4
FRONT CAP
1
5
NUT
1
6
SPRING
1
7
THRUST WASHER
1
8
STOPPER
2
9
STOPPER SPRING
2
10
FRONT CASE
1
11
CLICK SPRING
1
12
PIN SET
6
13
LOCK RING
1
14
RING GEAR
1
15
CARRIER
1
16
PLANET GEAR (C) SET
5
17
WASHER (A)
1
18
REAR CASE
1
19
SHIFT ARM
1
20
SCREW SET M3X12
4
21
SLIDE RING GEAR
1
22
PINION (C)
1
23
PLANET GEAR (B) SET
4
24
PINION (B)
1
25
PLANET GEAR (A) SET
4
26
FIRST RING GEAR
1
27
WASHER (B)
1
28
MOTOR SPACER
1
29
ARMATURE AND PINION SET
1
30
MAGNET
1
31
BRUSH BLOCK
1
32
CARBON BRUSH 5X6X11.5
2
33
BRUSH CAP
2
34
TAPPING SCREW (W/FLANGE)
10
D3X16
