5-2 111132_0909
two red stripes to the engine’s white wire (comes out of
braided wiring harness). Fig. 5-7
8. Coil the extra length of wire and clamp in place using th
new clamp. Fig. 5-6

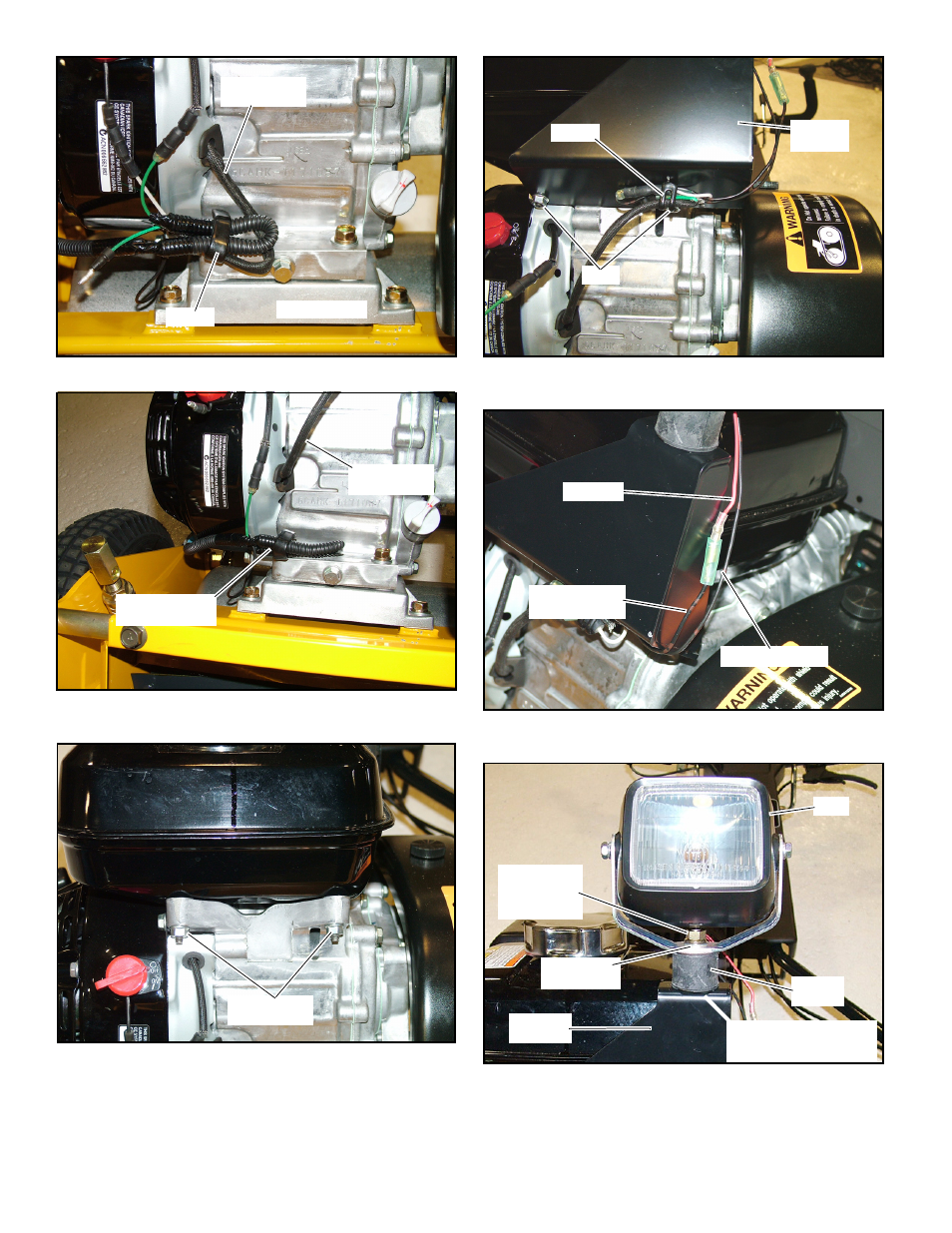

Fig. 5-3
Fig. 5-4
Fig. 5-5
Braided wiring
harnes
Clamp
Front of engine
Clamp remaining
engine wires
Braided wiring
harnes
Remove these
two nuts
Fig. 5-6
Fig. 5-7
Fig. 5-8
Mounting
bracket
Clamp
Nuts
Red wire
Black wire with
two red stripes
Black ground wire
Light
Nut
Lock washer
Flat washer
Black wire
connector
Rubber
mount
Mounting
bracket
Nut, flat washer & lock
washer (located behind
mounting bracket)
