4
Strap Rivet
Strap
hole

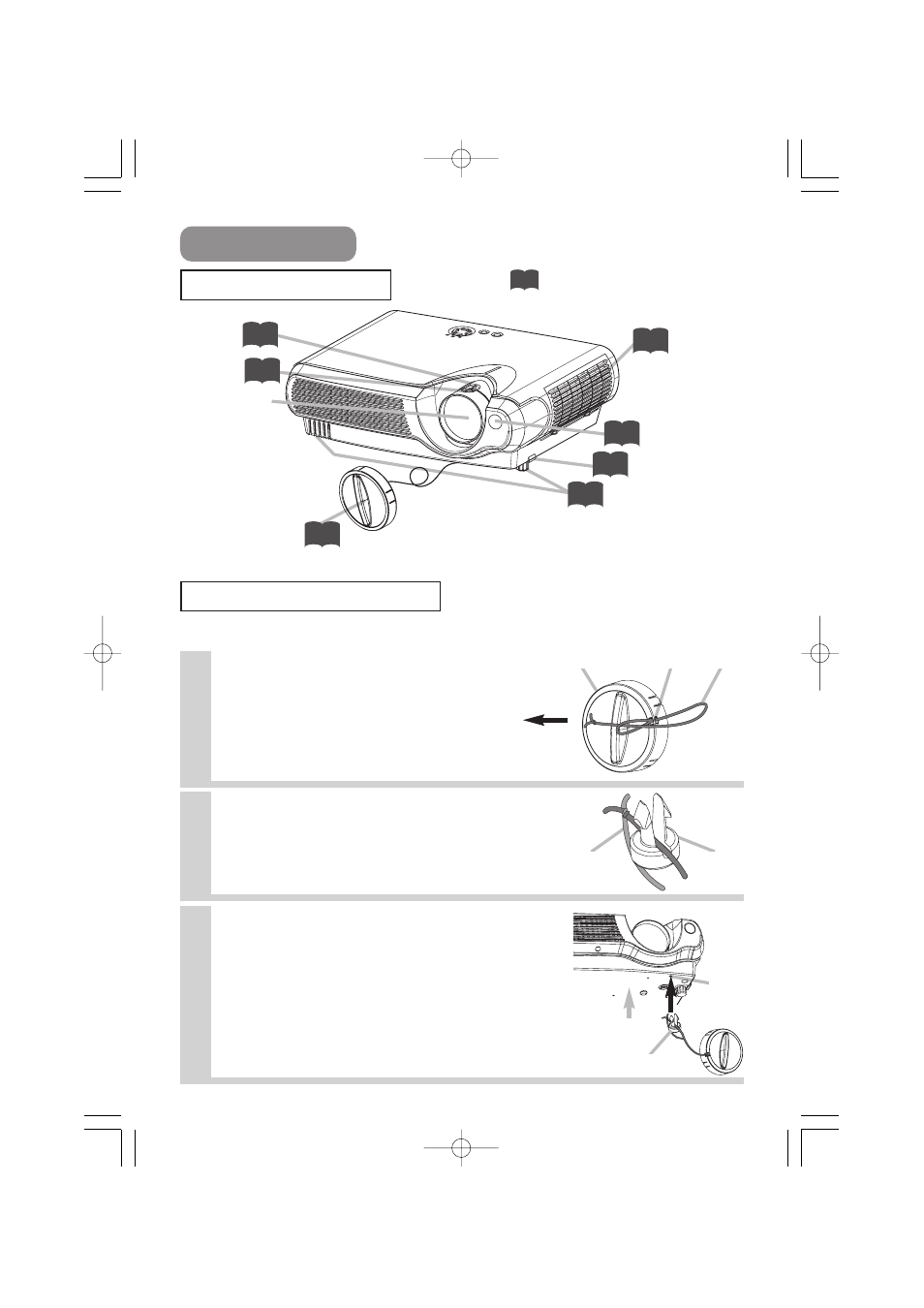

Part Names
The Projector
Zoom ring
Focus ring Air filter cover
(An air filter is
inside.)
Elevator button
Elevator feet
Indicates the corresponding
reference page
Lens cap
Lens
(The picture is
projected from
here.)
Remote sensor
Projector (Front/Right)
Fastening The Lens Cap
To avoid losing, please fasten the lens cap to the projector using the strap.
1
Fix the strap to the strap ring of lens
cap, as the right drawing.
2
Put one piece of the strap into the
groove on rivet, as the right drawing.
3
Push the rivet into the strap hole.
Lens cap Strap ring Strap
Pull
Rivet
Push in
(Bottom side)
