FRONT PANEL INFORMATION DISPLAY 7

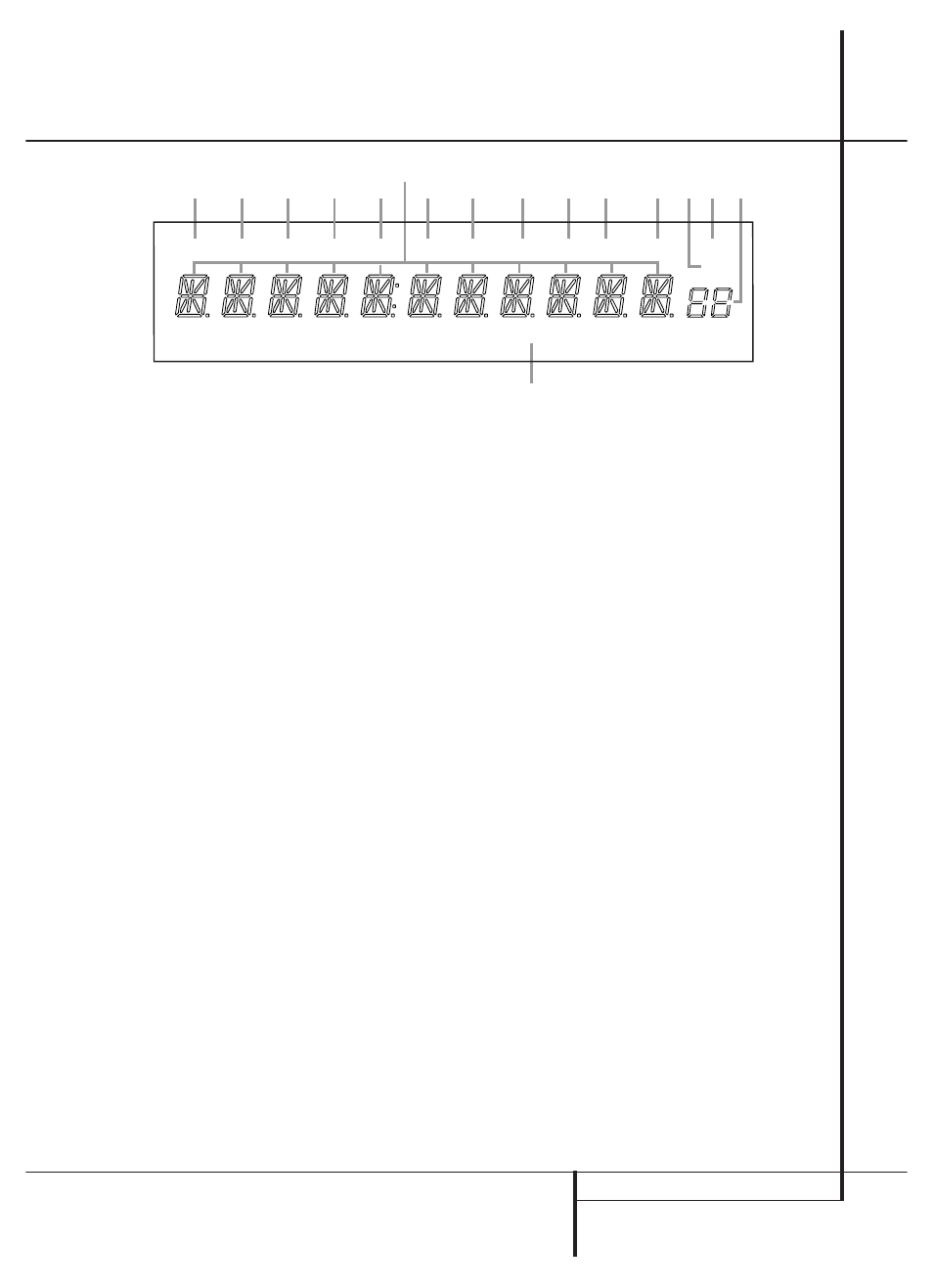

Front Panel Information Display
A VMAx Mode Indicator: This indicator
lights when the VMAx mode is in use. (See page
14 for a description of the VMAx Mode.)
B Preset Number/Sleep Timer: When the
tuner is in use, these numbers indicate the spe-
cific preset memory location in use. (See page 15
for more information on preset stations.) When
the Sleep function is in use, these numbers show
how many minutes remain before the unit goes
into the Standby mode.
C Preset Indicator: This indicator lights when
the tuner is in use to show that the Preset
Number/Sleep Timer B is showing the sta-
tion’s preset memory number. (See page 15 for
more information on tuner presets.)
D Sleep Indicator: This indicator lights when
the Sleep function is in use. The numbers in the
Preset Number/Sleep Timer Indicators will show
the minutes remaining before the HK 3470 goes
into the Standby mode. (See page 14 for more
information on the Sleep function.)
E Memory Indicator: This indicator flashes
when entering presets and other information
into the tuner’s memory.
F Stereo Indicator: This indicator lights when
an FM station is being tuned in stereo.
G Tuned Indicator: This indicator lights when
a station is being received with sufficient signal
strength to provide acceptable listening quality.
H Auto Indicator: This indicator lights when
the tuner’s Auto mode is in use.
I Main Information Display: This display
shows messages relating to the status, input
source, tuner or other aspects of the HK 3470’s
operation.
J Tape Monitor (T-Mon) Indicator: When
used with three-head cassette decks, or other
recording devices that offer immediate playback
of the recording as it is being made, the
HK 3470 allows you to monitor a recording
rather than merely listening to the input source,
or waiting until the recording session is com-
plete in order to hear the recording. Press the
Tape Monitor Input Selector 9ç, and the
T-Mon Indicator J will light to remind you
that you are monitoring the recording. Note, that
in contrast to other input selectors activated the
previously selected input source remains routed
to the Tape 2 Record Outs
B. Press the Tape
Monitor Input Selector 9ç again to hear
the input source.
K Mute Indicator: This indicator lights to
remind you that the HK 3470’s output has been
silenced by pressing the Mute button 5®.
Press the Mute button again to return to the
previously selected output level.
L Traffic Announcement Indicator: This
indicator illuminates if the RDS station tuned
occasionally transmits traffic information (see
page 16 for more information on RDS).
M Radio Text Indicator: This indicator illumi-
nates when the RDS station tuned is transmit-
ting radiotext (RT) data.
N Clock Time Indicator: This indicator illumi-
nates when the RDS station tuned is transmit-
ting the CT (clock time) code, indicating the cur-
rent time of day.
O PTY Indicator: This indicator illuminates
when the RDS station tuned is transmitting pro-
gram type data, or during a PTY search.
P RDS Indicator: This indicator illuminates
when the station tuned is transmitting RDS data.
MEMORY PRESET
SLEEP
AUTO
VMAx
MUTE T-MON RDS PTY CT RT TA TUNED ST
A
B D E K F H
I
J
P O N M L
C G
A
B
C
D
E F
G
H
I
J K
L
M
N
O
P VMAx Mode Indicator
Preset Number/Sleep Timer
Preset Indicator
Sleep Indicator
Memory Indicator Stereo Indicator
Tuned Indicator
Auto Indicator
Main Information Display
Tape Monitor (T-Mon) Indicator Mute Indicator
Traffic Indicator
Radiotext Indicator
Clock Time Indicator
Program Type Indicator
RDS Indicator
