English

11

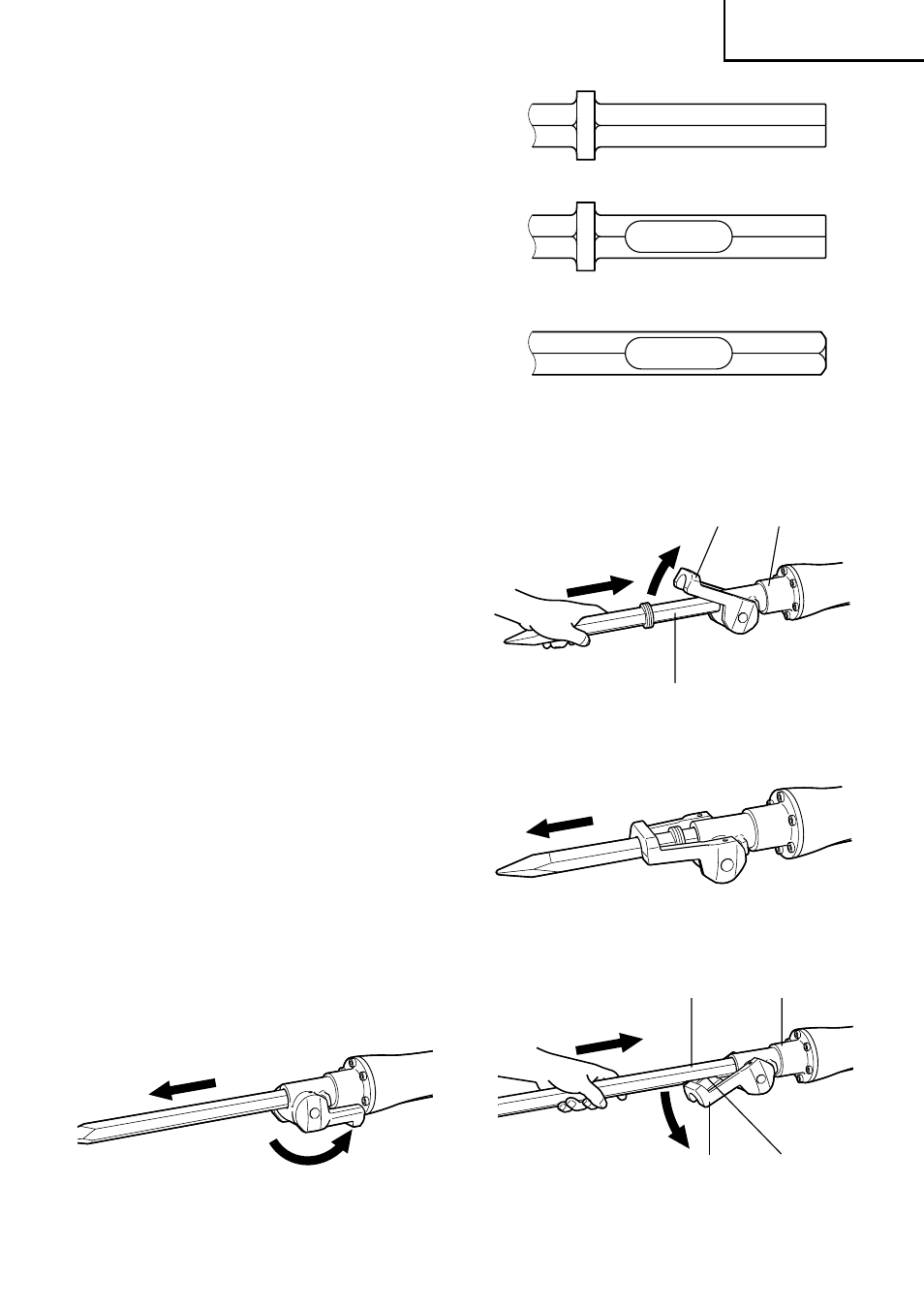

* It is possible to attach accessories such

as bull points, cutters, etc., with any of the
three types of shank bit shapes shown
below (Fig. 2).

⅜ Mounting air tool shank and standard

hexagonal shank tools.
(1) Clean, then smear the accessory

shank portion with grease or machine
oil.

(2) Move the retainer to open position A

and seat the accessory, such as a bull
point, a cutter, etc., in the hexagonal
hole in the front cover (See Fig. 3).

(3) Clamp the accessory into place by

bringing the retainer to the clamp
position. To make sure that the
accessory is properly mounted, pull
on the accessory (Fig. 4).

⅜ Mounting standard hexagonal shanks and

retaining groove shanks without collars.
(1) Clean, then smear the accessory

shank portion with grease or machine
oil.

(2) Move the retainer to position A. Align

the accessory shank portion so that
its recessed portion is under clamp
and seat the accessory such as a bull
point, a cutter, etc., in the hexagonal
hole in the front cover (See Fig. 5).

(3) Clamp the accessory into place by

bringing the retainer to clamp position
B. To make sure that the accessory
is properly mounted, pull on the
accessory (Fig. 6).

NOTE: When removing the accessory, such

as a bull point, a cutter, etc., carry out
the above procedures in reverse.

Fig. 3

Fig. 4

Fig. 6

Fig. 5

Air Tool Shank Bit

Standard Hex. Shank Bit (Combo Type)

Retaining Groove Bit without Collar

Fig. 2

Retainer

Front Cover

Tool Shank

Tool Shank

Front Cover

Retainer

A

Recessed
Portion

B

A
