CAUTION: The remote control device complies with part 15 of the FCC rules.

Changes or modifications not expressly approved by Hunter Fan Company could void
your authority to operate this equipment.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may

cause undesired operation.

WARNING: Use only the Hunter Fan speed control supplied with this fan.

4-1. IMPORTANT! Before you change the DIP switch settings, make

sure the battery is not connected to the transmitter.

Change the position of the DIP switches in the remote transmitter

and the receiver. Make sure that the DIP switches match in
the remote receiver and transmitter. If they don’t match, the
transmitter will not function.

4-2. There is a toggle switch beside the DIP switches on the transmitter.

Move the toggle switch toward the side that reads “CFL” if you are
going to operate the fan with CFL bulbs. Move the switch to the
“INC” side if you are going to use incandescent bulbs.

4-3. Install the included 9-volt battery into the transmitter.

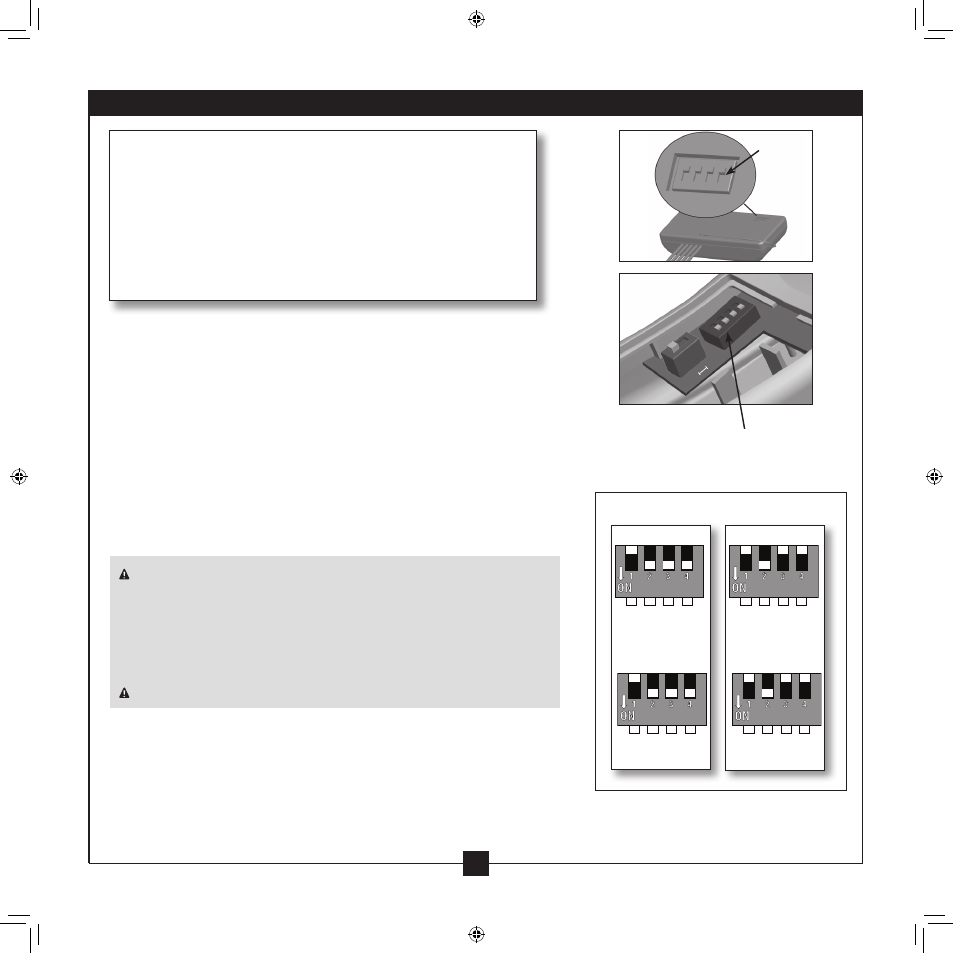

Setting DIP switches
When two or more fans are located near each other, you may desire
to have the receiver/transmitter for each fan set to a different code,
so that the operation of one fan does not affect the operation of the
other fans.
The DIP switches for the receiver are located on the flat surface of the
receiver. The DIP switches for the transmitter are in the the battery
compartment.

Receiver DIP

switches

Transmitter DIP switches

4-4. Raise the fan and align the slots in the canopy with the hooks

on the ceiling plate.

Note: To hang the fan, you must tilt the canopy to an almost

vertical position so that the canopy slots sit on the ceiling
plate hooks.

CF

L I

NC

Dip Switches

Set to 01110

Dip Switches

Set to 01001

Dip Switches

Set to 01110

Dip Switches

Set to 01001

Receiver 1

Receiver 2

Transmitter 2

Transmitter 1

Example DIP Switch Settings

DIP Switches

Set to 0111

DIP Switches

Set to 0100

DIP Switches

Set to 0100

DIP Switches

Set to 0111

4 • Setting the Remote Transmitter and Receiver
