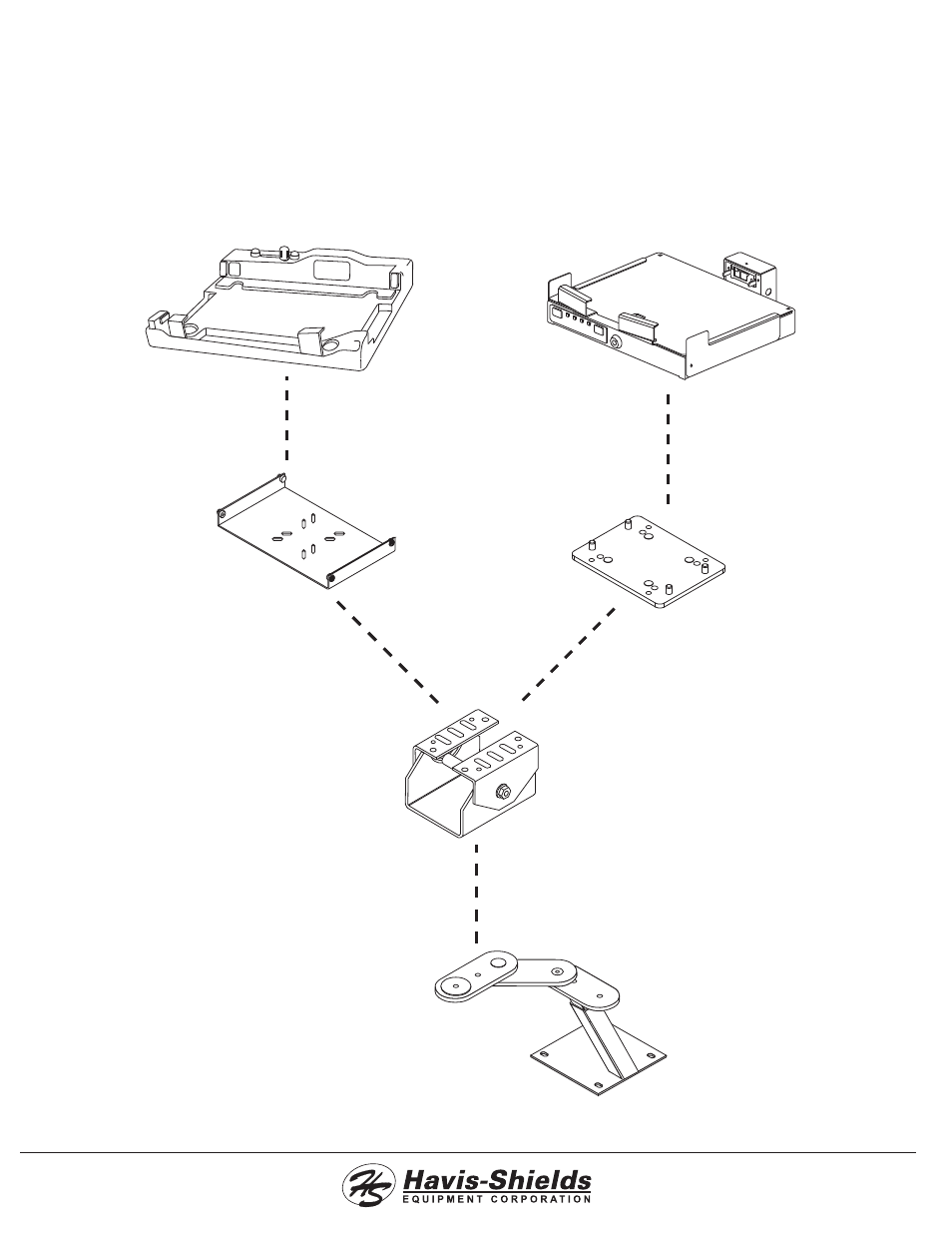

Panasonic CF-29 (Toughbook)

Docking Station Mounting Solution

C-3075-3
Tilt/Swivel Bracket

C-TCB-14
Telescoping
Computer Base
(For Trak-Mount)

C-3222
Adapter Mounting Plate

C-PA-DCF-27
Panasonic Dock Station

KO-DCF-29
Panasonic Dock Station

C-3334-1
Adapter Mounting Plate

OR

**This is a sample configuration. These parts can be

substituted depending on vehicle or application.**

(Other Tilt/Swivel Brackets Available)

Ph: 800.524.9900 or 215.957.0720

Fax: 215.957.0729

E-mail: [email protected]

Web: http://www.havis.com

PAN-CF-29-TCB-R-9-06
