OM-2210 Page 14

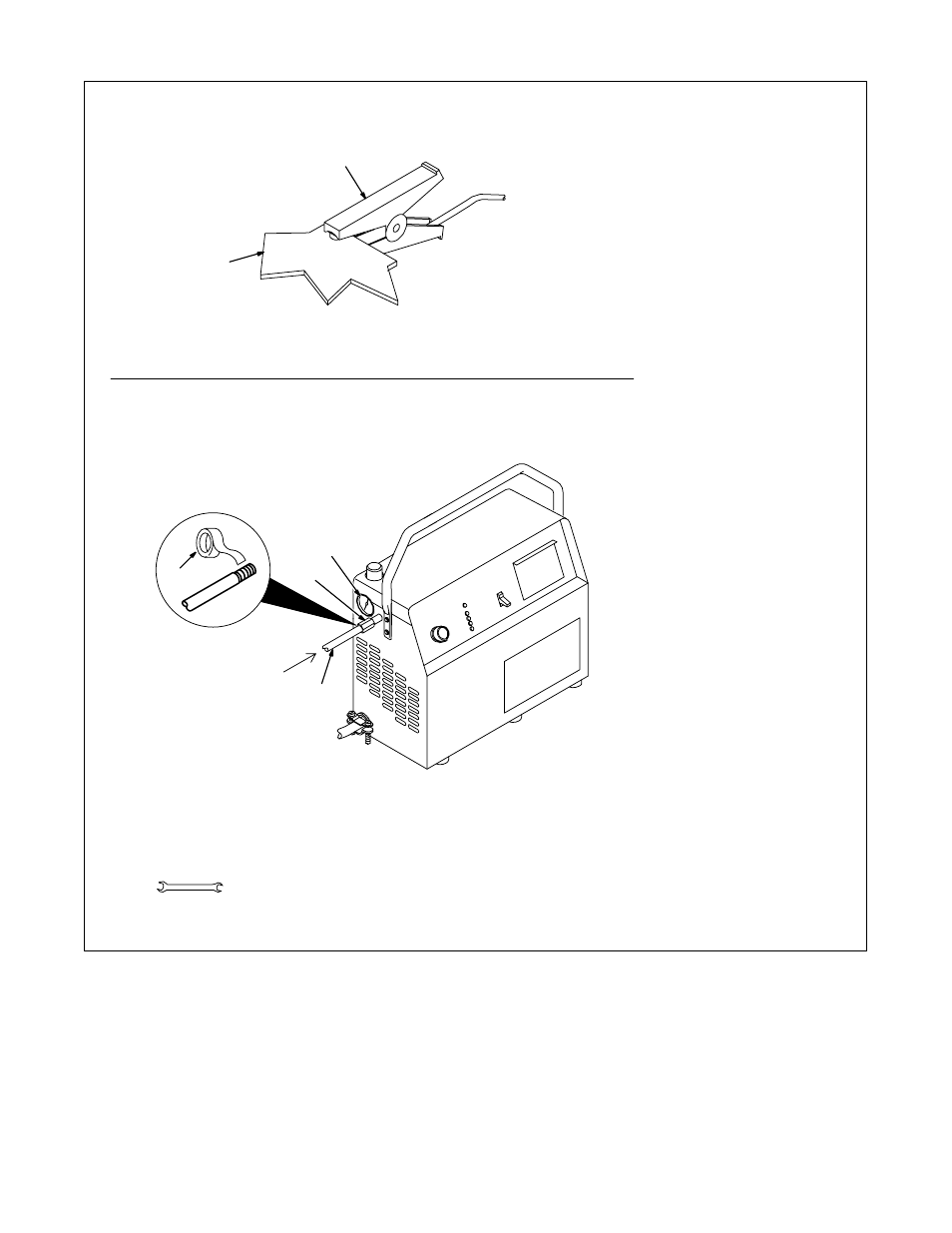

3-7. Connecting Work Clamp And Gas/Air Supply
Ref. 801 319-C / Ref. 801 306-C
1 Work Clamp
2 Workpiece
Connect work clamp to a clean,
paint-free location on workpiece, as
close to cutting area as possible.
.
Use only clean, dry air with 70
to 150 psi (483 to 1034 kPa)
pressure.
3 Air Filter/Regulator
4 Gas/Air Inlet Opening
5 Hose
6 Teflon Tape
Obtain hose with 1/4 NPT right-
hand thread fitting. Wrap threads
with teflon tape (optional) or apply
pipe sealant, and install fitting in
opening. Route hose to gas/air
supply.
Adjust gas/air pressure according
to Section 4-1.
Tools Needed:
5/8, 1-1/8 in
From Gas/Air Supply
6
1
2
4
3
5
