8
11. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the ellip-
tical exerciser.
9
Grease
88
53
14
17
20 36
9. Apply a generous amount of grease to the Left Crank
Arm (36) and to a Large Wave Washer (20). Then, slide
a Pedal Leg Spacer (88) and the Left Pedal Leg (14)
onto the Left Crank Arm.
Attach the Left Pedal Leg (14) to the Left Crank
Arm (36) with an M8 x 25mm Patch Screw (22), an
M8.5 Washer (53), and the Large Wave Washer (20).
Attach the Right Pedal Leg (17) in the same way.
22

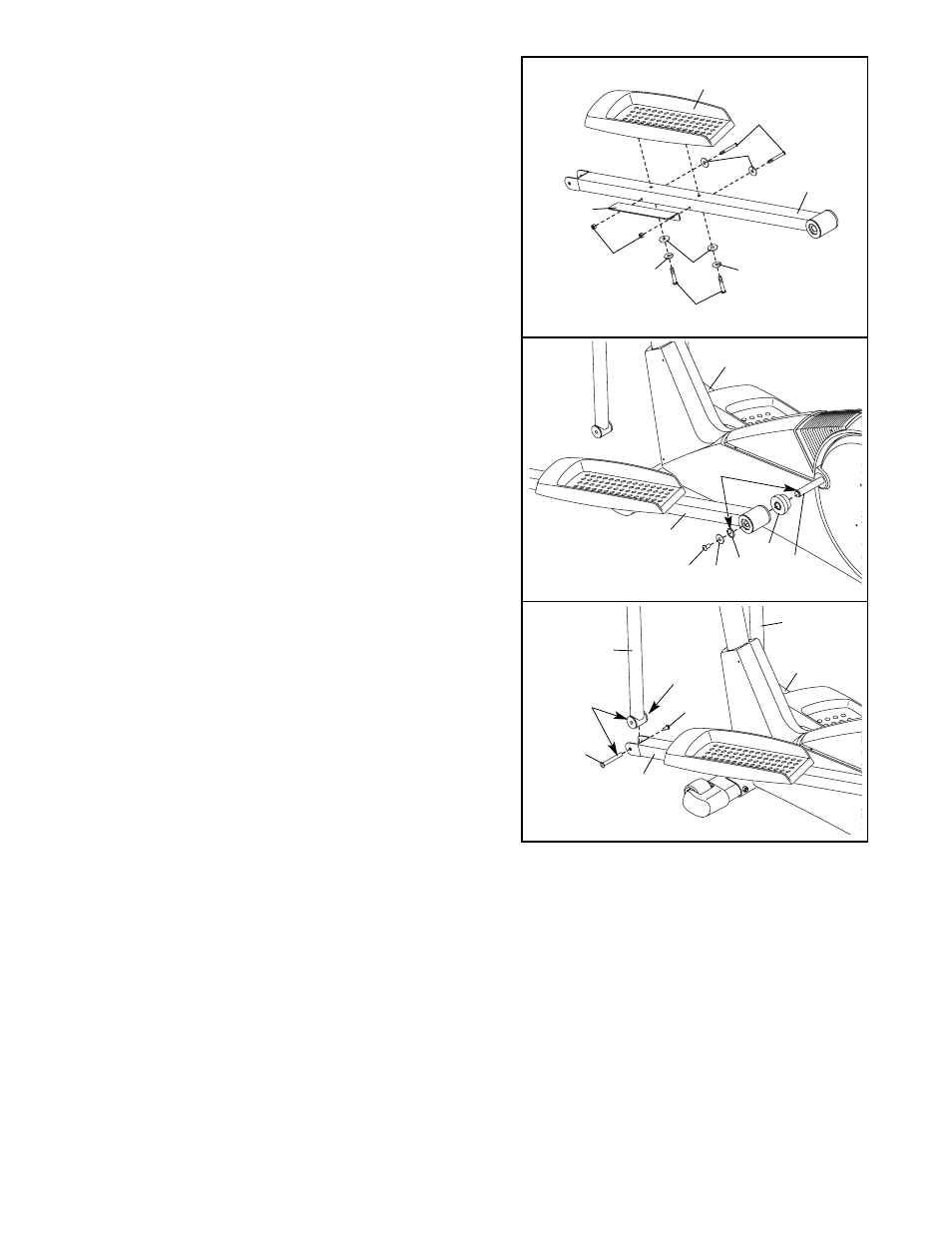

8. Identify the Left Pedal Leg (14), which is marked with a
“Left” sticker. Attach a Pedal Bracket (15) to the Left
Pedal Leg with two M8 x 65mm Button Bolts (89), two
M8.5 Washers (53), and two M8 Nylon Locknuts (46).
Next, identify the Left Pedal (13). Attach the Left Pedal
to the Left Pedal Leg (14) with two M8 x 50mm Button
Screws (82), two M8 Split Washers (58), and two M8.5
Washers (53).
Repeat this step with the Right Pedal Leg (not
shown) and the Right Pedal (not shown).
10
79
79
27
14
17
Grease
Grease
27
10. Hold the lower end of the left Handlebar Leg (79) inside
of the Left Pedal Leg (14). Apply a small amount of
grease to an M10 x 52mm Bolt Set (27). Attach the left
Handlebar Leg to the Left Pedal Leg with the Bolt Set.
Do not overtighten the Bolt Set; the left Handlebar
Leg must be able to pivot freely.
Attach the right Handlebar Leg (79) to the Right
Pedal Leg (17) in the same way.
82
14
53
15
89
53
8
46
58
58
13
