Reserve, remain time digitron
It displays "--" during detecting.
It displays remained reserve time (hour).
It displays total remained time (min). If the total time
exceeds 99 minutes, it uses "A" on tens digit to
represent100 minutes, and uses "b" to represent 110
minutes. E.g. "A3" represents 103 minutes.
It displays abnormal symbol in abnormal situation.
(See to Page15)
>10mm
About less than 2mm after twisting
Figure 3

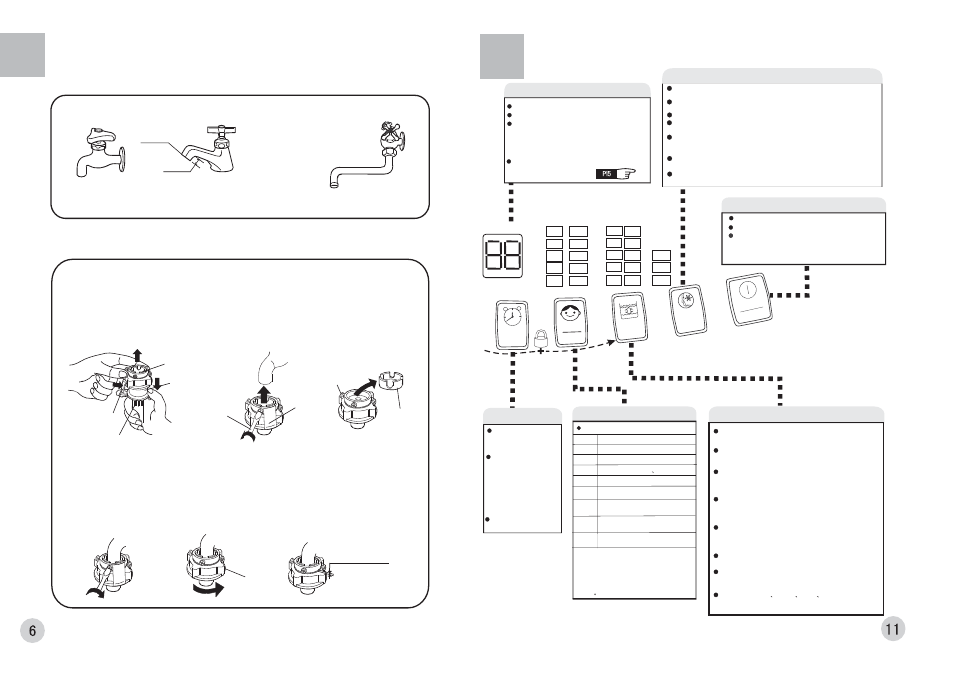

Connection between the water inlet hose jointer and the water faucet
Bushing
About 4mm before twisting
2. Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.
See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen
the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,
otherwise it may leak water. See to Figure 3.)
1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the
water inlet hose component. See to Figure 1.
Water faucet,not suitable
Install the water inlet hose
Screw
It is required that the front end shall be longer than 10mm.
The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.
remark: Before installation, the threading is 4mmabove the upper surface of the nut.
After installation, the threading is 2mm above the upper surface of the nut. See to figure 6.
Figure 6
Sign plate
4 Take off the nameplate. Twist the fastening nut as per the indication of the figure
to seal up the exit end face of the faucet. See to Figure 5.
Figure 2
Screw nut
Screw knife
3.Fasten the four screws evenly. See to Figure 4.
water inlet hose jointer
Figure 5
Outlet end surface
Slider
Figure 1
Water faucet,suitable
water inlet hose
Figure 4
Lock level
Confirm the water faucet
Woollen
Normal
Saving
Carpet
Standard
Speedily
6min
Remain
Reserve Delicater Comforter
Function
No
detergent
Disinfect
Air dry
1
Program
3
5
7
9
2
4
6
8
10
"POWER" button
Push the "POWER" button to switch on the power.
Under power-on mode, push it to switch off the power.
Push the "POWER" button to switch on the power. If
the "START/PAUSE" button is not pushed, the machine
will switch off the power automatically after 5 minutes.
Reserve
Program
Air dry
Water
level
Function
Power
On/off
" " RESERVE button
The digitron displays the time
remained (in minute) before
the washing is finished.
Push down the reserve
button. The reserve indicator
light is on the digitron displays
the reserve time of finishing
washing (in hour).The time
remain indicator light is on,
indicating that the reserve
function is running.
Push the reserve button can
display the reserve state.
Speedily
Comforter Washing for big and thick laundries
Carpet Washing for carpet and wearing bigger
Woollen Washing for the woollen laundries,
Delicate
Normal Washing for normal laundries
" " PROGRAM/AIR DRY button
Following full-auto program is available
Standard
Program
Saving
Application
Quick washing for normal laundries
Saving washing for light-soil laundries
Standard saving washing for normal laundries
Washing for light-soil a few laundries
under 2.5kg
Laundries, under 3.0kg
WATER LEVEL button " "
The washing machine can detect the laundries automatically.
After detection, it will set the water level to suitable value among
4, 6, 8,and 10 automatically.
You can also set water level by yourself. After the machine is
started, it will not set water level automatically. You shall push the
start/pause button to make new setting.
If there's water inside the tub, the machine cannot detect the
laundries and will display water level 6 .If wet laundries are put
in, it may display water level 10. You must set suitable water level
by yourself.
If Speedily program is selected, it will display water level 3 .
When water level 2 is reached in water filling, it will perform
washing while filling water. When water level 3 is reached, it will
change to normal washing.
During operation of wash and rinse program, you can push down
the water level button to add water. When you release the button, or
it reaches the overflow water level, the machine will stop adding
water.
The water level decided may be different from actual value because
of the different moisture level of the laundries.
All the program that When water level 1 is reached,it will perform
washing while filling water.When water level set is reached, it will
change to normal washing.
You can set speedily woollen carpet delicate program by
yourself, never changed. It is to set water level 8 highest during
the standard program.
Push down the program button continuously
for more 2 seconds .After a beep sound ,
the program is changed into the Air dry
program.then push the program button to
select the different air dry time(0.5,1 ,2, 3
hours)
"FUNCTION"button
During the normal,saving,speedily and comforter program,press the"function"button to
select washing function procedure.
Selecting the digitron is on,the largest washing
rated is 4.0kg.the highest washing water level is 8 .
"no detergent"function the no detergent
" "
Selecting the"disinfect"function,the "disinfect"digitron is on.
Not select the
digitron is off, you can use the powder
program.
"no detergent"function the no detergent
As you select the"woollen","carpet"program,pressing the "function"button.the
washing machine has no reaction.Please use the detergent destined for the
washing laundries.
As you select the "standard" program,pressing the"function"button
"normal"program.
.the washing machine
has no reaction.Please select the
As you select the"delicate"program,pressing the"function"button
"saving"program or the"speedily"program
.the washing
machine has no reaction.Pleaseselect the
LOCK
