Manual Switches AML56 Series
Rocker Switch Operators
52 Honeywell ɀ MICRO SWITCH Sensing and Control ɀ 1-800-537-6945 USA ɀ ⍣1-815-235-6847 International ɀ 1-800-737-3360 Canada
HOW TO ORDER ROCKER LEGENDS
When specifying legended rockers, sub-
mit a legend order sheet to cover each
catalog listing. These forms identify the
maximum number of lines per area and
the maximum characters per line, based
on the type size you request. To insure
proper legend orientation, rocker switch
housings (when viewed from the panel
front) should have the ‘‘MICRO SWITCH’’
identification facing UP or to the LEFT.
Rocker legend order sheets are shown on
the following pages. Reproduce them on
your office copier.
Legend Sheet Form No.
AML54 Rockers FO-63566
AML56 Rockers FO-63564

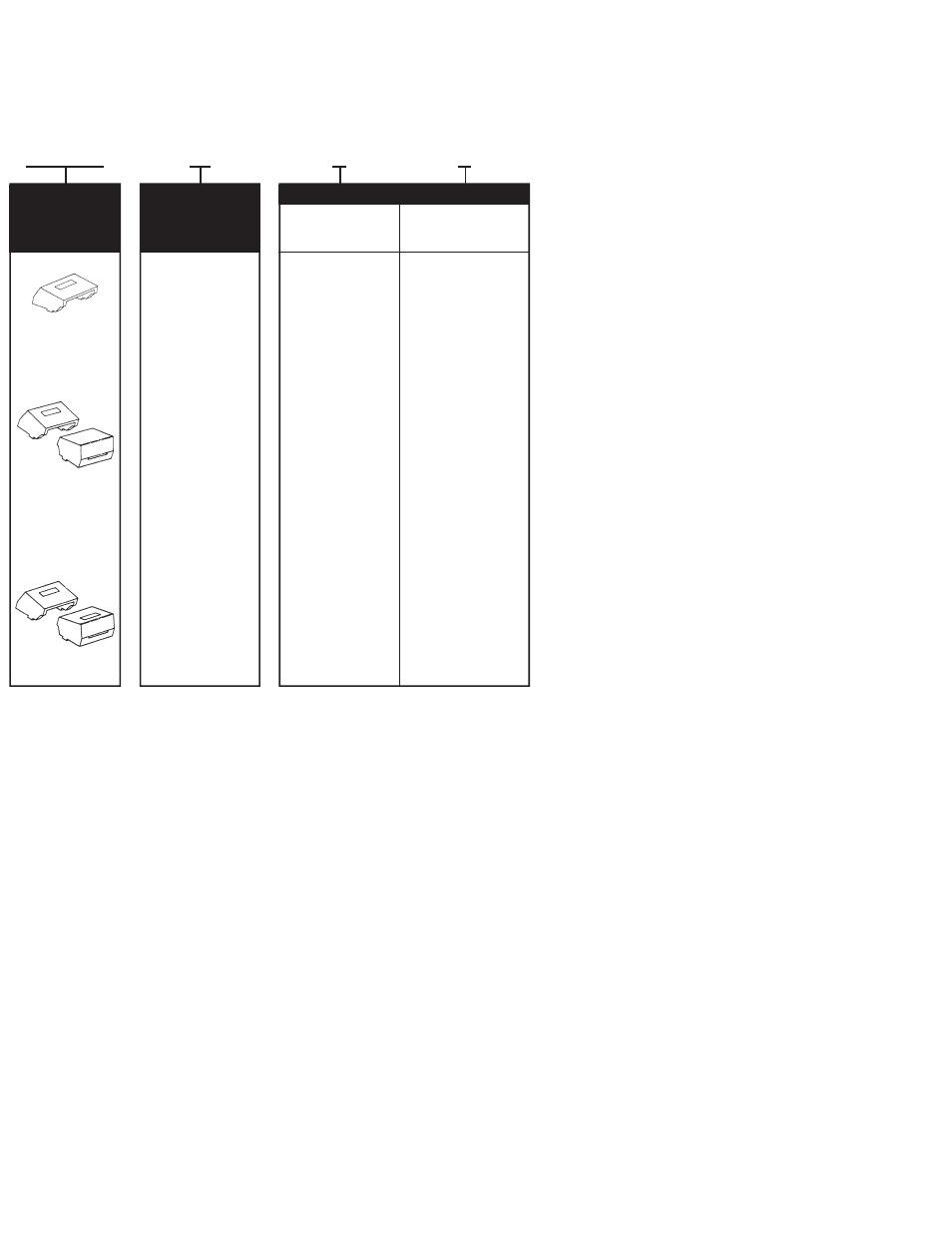

AML56 ORDER GUIDE
For AML16 and AML26 LED display.
AML56-T 10 R B
Rocker Color – See Notes Below
1/2-rocker
Rocker Display/Legend or LED side of Other side of
Operator Type Type two-piece rockers two piece rockers
AML56-E
1/2-Rocker*
(For one LED)
AML56-T
Two-Piece Rocker
(For one LED)
AML56-H
Two-Piece Rocker
(For two LED’s)
Transmitted Color
10 No Legend
20 With Legend
R R
Red Red
Y
Yellow
G
Green
B
Blue
W
White
K
Black
L
Gray
Y
Yellow
G
Green
B
Blue
W
White
K
Black
L
Gray
Example: AML56-T10RB
Two-piece rocker; with LED window in
one side, transmitted color, no legend;
red (LED side) and blue (non-LED side).
* Notes:
1 Only one color code letter is necessary
for AML56-E 1/2-rockers. AML56-E, -T,
and -H rockers have an open window
which allows LEDs to be flush with the
rocker surface.
2 To order a 1/2-rocker without the LED
‘‘window,’’ specify an AML54-E listing
from the previous page.
