12
NOTE: It is not recommended to operate the snow thrower
over gravel or rocky surfaces. Objects such as gravel, rocks
or other debris, can easily be picked up and thrown by the
impeller, which can cause serious personal injury, property
dam age or damage to the snow thrower.
•
If snow thrower must be operated over gravel surface,
use extra caution and be sure skid plates are adjusted
to lowest (highest scraper clear ance) position.
1. Shut off engine and wait for all moving parts to stop.
2. Adjust skid plates by loosening the 1/2" hex nuts, then
moving skid plate to desired position. Be sure both
plates are adjusted evenly. Tighten securely.

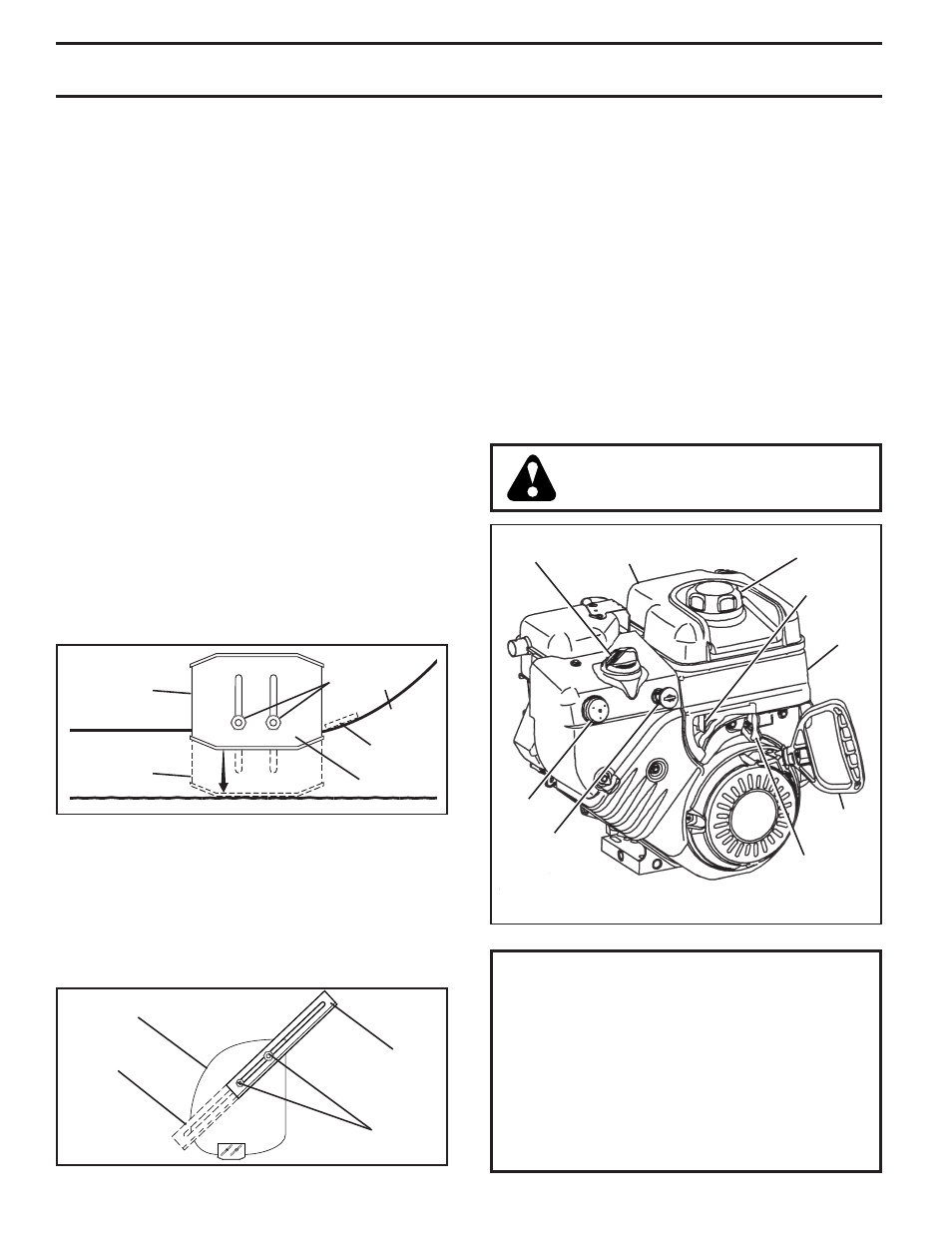

SCRAPER BAR (See Fig. 19)
The scraper bar is not adjustable, but is reversible. After
con sid er able use it may become worn. When it has worn
almost to the edge of the housing, it can be reversed,
providing additional service before requiring replacement.
Replace a dam aged or worn scrap er bar.
BEFORE STARTING THE ENGINE
CHECK ENGINE OIL LEVEL (See Fig. 21)
The engine on your snow thrower has been shipped, from
the factory, already filled with oil.
1. Check engine oil with snow thrower on level ground.
2. Remove oil fill cap/dipstick and wipe clean, reinsert
the dipstick and screw tight, wait for a few seconds,
remove and read oil level. If necessary, add oil until
“FULL” mark on dipstick is reached. Do not overfill.
• To change engine oil, see “TO CHANGE ENGINE OIL”
in the Main te nance sec tion of this manual.
ADD GASOLINE (See Fig. 21)
•
Fill fuel tank to bottom of tank filler neck. Do not over-
fill. Use fresh, clean, regular unleaded gasoline with
a minimum of 87 octane. Do not mix oil with gasoline.
Purchase fuel in quan ti ties that can be used within 30
days to assure fuel freshness.
TO USE DRIFT CUTTERS (See Fig. 20)
Use the drift cutters to cut through deep snowdrifts that are
higher than the front of the snow thrower.
•
Loosen adjustment nuts enough to allow drift cutter to
be raised to highest position and tighten nuts securely.
Repeat for opposite side of snow thrower.
• When not using drift cutters, loosen adjustment nuts,
lower to storage position and tighten nuts securely.
CAUTION: Alcohol blended fuels (called gas o hol
or using ethanol or methanol) can attract mois-
ture which leads to separation and for ma tion of
acids dur ing storage. Acidic gas can damage
the fuel system of an engine while in storage.
To avoid engine problems, the fuel system
should be emptied be fore stor age of 30 days or
longer. Drain the gas tank, start the engine and
let it run until the fuel lines and carburetor are
empty. Use fresh fuel next season. See Storage
In struc tions for ad di tion al information. Never
use engine or car bu re tor cleaner products in
the fuel tank or per ma nent damage may occur.
ADJUST-
MENT NUTS
STORAGE
POSITION
AUGER
HOUSING
DRIFT
CUTTER
FIG. 20
SKID PLATE
LOW POSITION
(HIGH GROUND
CLEAR ANCE)
HEX
NUTS
HIGH POSITION
(LOW GROUND
CLEARANCE)
AUGER
HOUSING
Fig. 19
SCRAPER
BAR
Fig. 21
ENGINE OIL
FILL CAP / DIPSTICK
FUEL SHUT-
OFF VALVE
PRIM ER
SAFETY
IG NI TION
KEY THROT TLE
CHOKE
CONTROL
STARTER
BUTTON
RECOIL
STARTER
HANDLE
GAS O LINE
FILLER CAP
NOTE: ALL ITEMS ARE SHOWN IN THEIR TYPICAL LOCATION.
ACTUAL LOCATION MAY VARY WITH ENGINE ON YOUR UNIT.
TO ADJUST SKID PLATES (See Fig. 19)
NOTE: The wrench provided in your parts bag may be
used to adjust the skid plates.
Skid plates are located on each side of the auger housing and
adjust the clearance between the scraper bar and the ground
surface. Adjust skid plates evenly to proper height for current
surface conditions. For removal of snow in normal con di tions,
such as a paved driveway or side walk, place skid plates
in the highest position (lowest scraper clear ance) to give
a 1/8" clearance between the scraper bar and the ground.
Use a middle position if the surface to be cleared is uneven.
WARNING: Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open flame.
