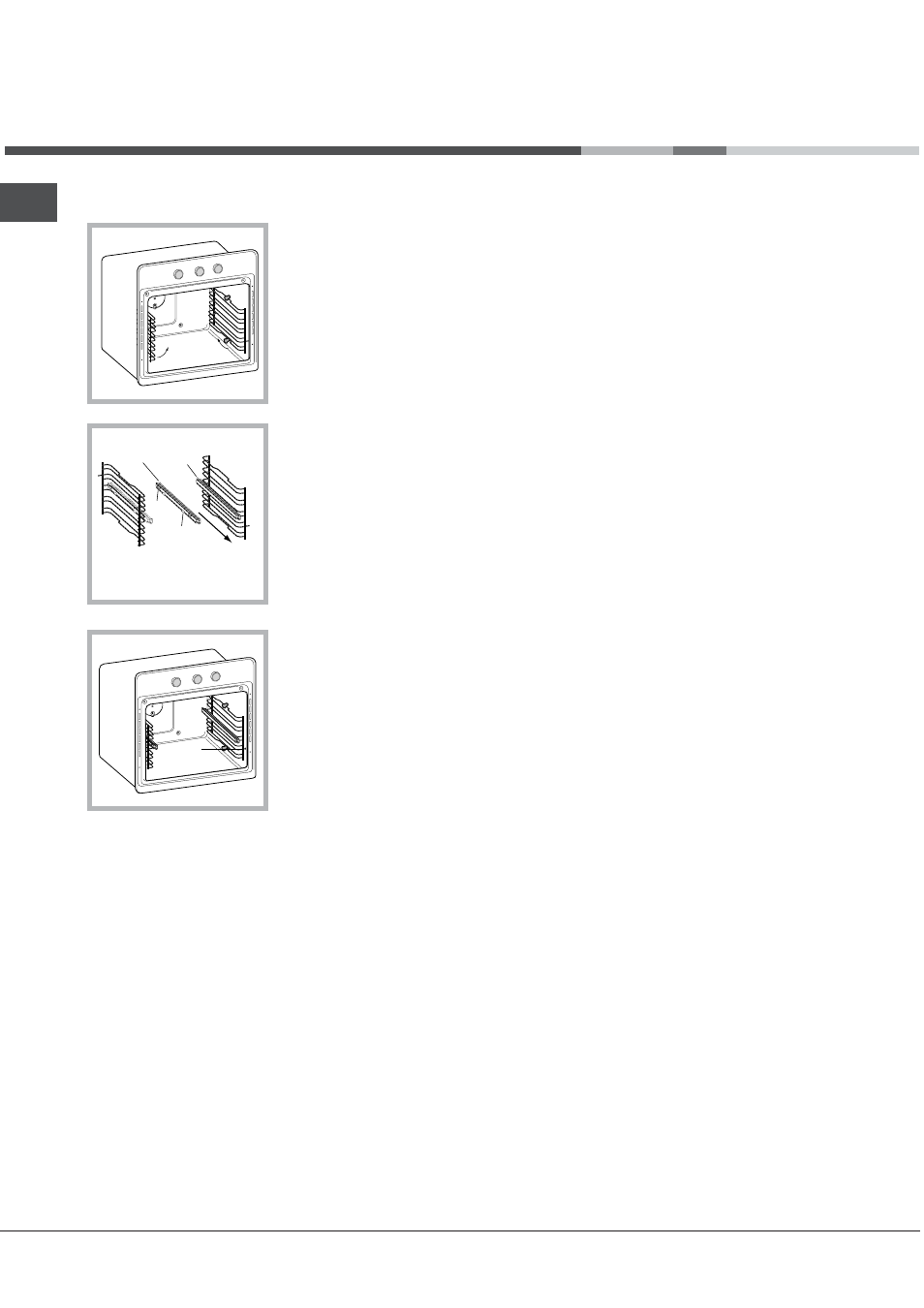

Assembling the sliding rack kit
To assemble the sliding racks:
1. Remove the two
frames, lifting them
away from the spacers
A (see figure).
2. Choose which shelf to
use with the sliding rack.
Paying attention to the
direction in which the
sliding rack is to be
extracted, position joint
B and then joint C on the
frame.
3. Secure the two frames
with the guide rails using
the holes provided on
the oven walls (see
diagram). The holes for
the left frame are
situated at the top, while
the holes for the right
frame are at the bottom.
4. Finally, fit the frames on the spacers A.
Do not place the sliding racks in position 5.
D
A
B
C
Left
guide rail Right guide
rail
Direction
of e
xtraction
