Thank Y ou
Thank you for pur chasing a Piranha fishfinder from
Humminbird, America’s #1 Manufacturer of quality con-
sumer marine electronics
W ARNING! This device should not be used as a
navigational aid to prevent collision, grounding, boat
damage, or personal injury. When the boat is moving,
water depth may change too quickly to allow time for you
to react. Always operate the boat at very slow speeds if
you suspect shallow water or submerged objects.
Installation Over view
Use the included installa tion guide to properly install your new Piranha. Installation
must be done correctly to ensure best performance.
Using the Pir anha
The Piranha is the easiest to use fishfinder ever . For most anglers, all you’ll ever
need to do is Power On & Fish! The Piranha automatically determines depth and
makes adjustments to keep the bottom and fish visible on the display.
The Piranha uses sonar technology to send sound waves from the transducer into
the water. The returned “echoes” are plotted on the Piranha’s LCD display and cre-
ate a very accurate picture of the underwater world with distance to underwater
objects such as the bottom, fish and structure.
Po wering ON and OFF
Press and release POWER-MENU to po wer the Piranha on. Press
and hold POWER-MENU until the unit shuts down to power off.
When Piranha powers on, the Start Up menu temporarily
appears. From this menu, select either Start-Up for on-the-water
use, or Simulator for learning to use
the system with simulated sonar data.
The Start-Up menu disappears after
several seconds and the Piranha
begins operation.

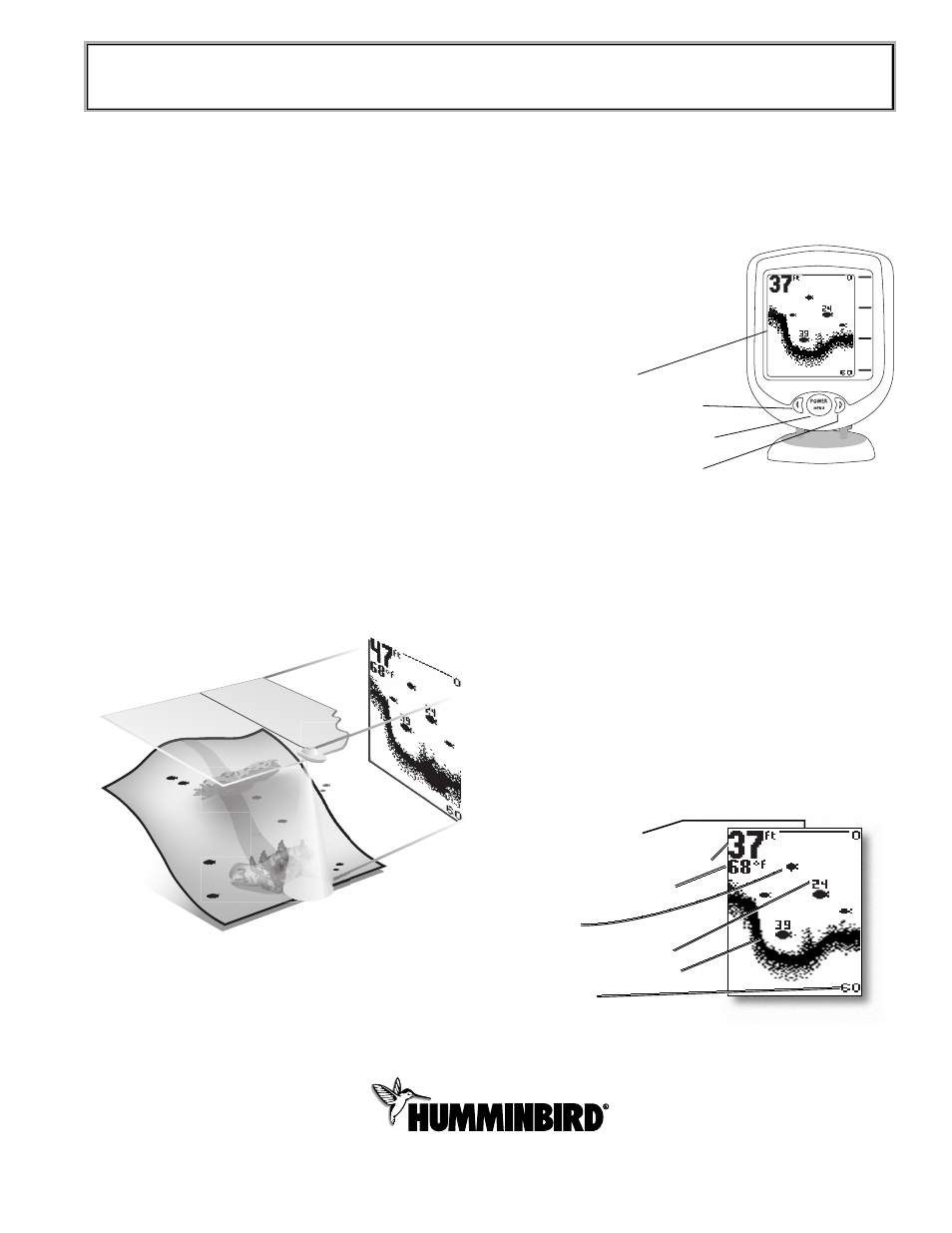

What You See On Screen
The Piranha displays underwa ter information in an easy-to-
understand format. The top of the display corresponds to the
water surface, and the bottom of the display corresponds to the
Depth Range automatically selected for the current water depth.
The Bottom Contour varies between the two as the depth under
the boat changes. Digital readouts provide precise information
for depth, fish and water temperature
(separate purchase required).
PIRANHA I & 2 OPERA TION GUIDE
W ater Temperature Capable
(Optional purchase required)
Fish Icons
Depth Range*
Structure ID™ Bottom Contour
Fish ID Symbol w/ Fish Depth
Water Surface Line
Depth – Measured at the Transducer
Screen
Left Arrow Button
Power/Menu Button
Right Arrow Button
*Note: Piranha 1’s maximum depth is 240 feet.
Piranha 2’s maximum depth is 600 feet.
