6

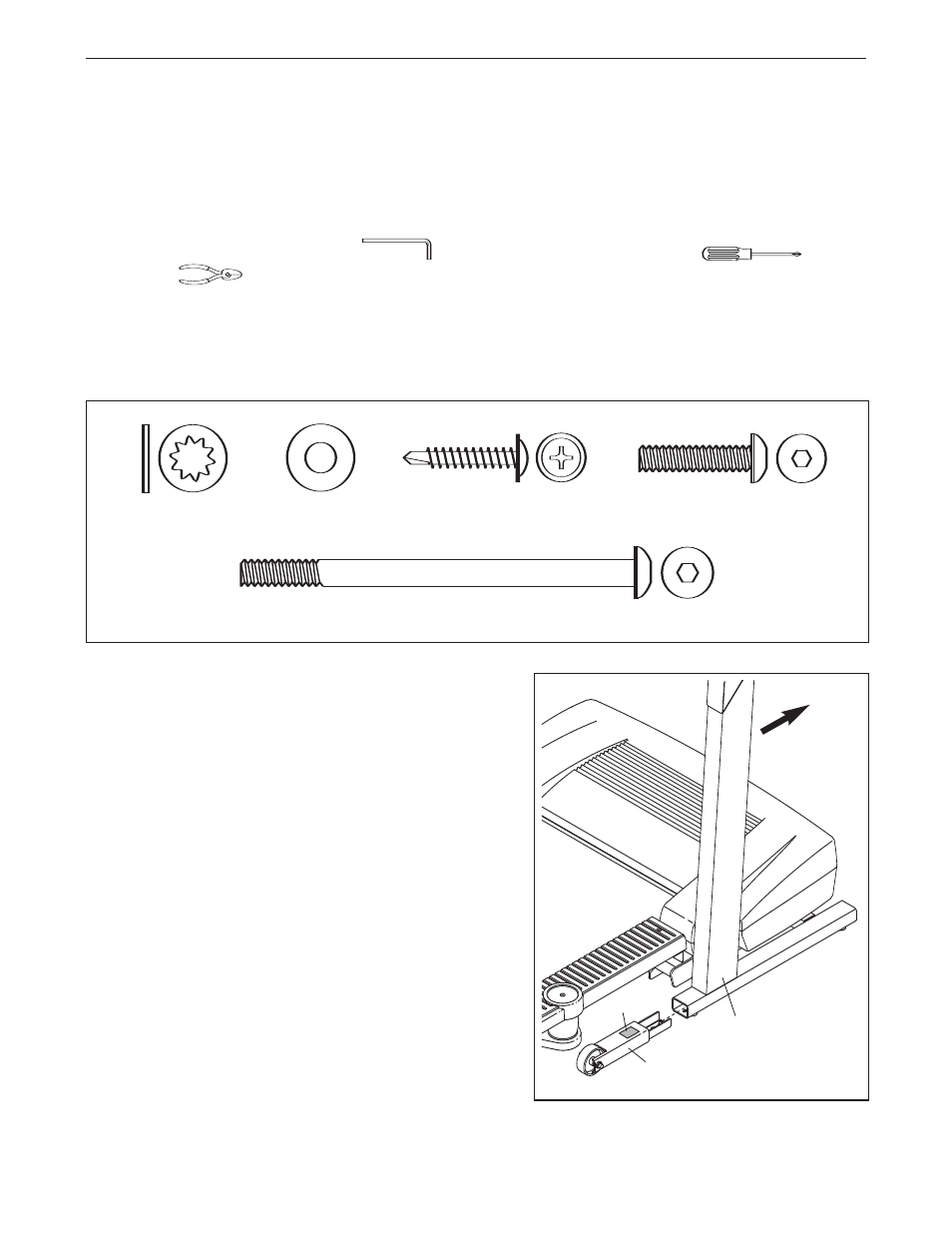

1. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise the
Uprights (97) to the position shown. Insert one of the
Extension Legs (115) into the base of the right Upright.
(Note: It may be helpful to tip the Uprights forward as
you insert the Extension Leg.) Make sure that the
Warning Decal (91) is in the indicated location.
Insert the other Extension Leg (not shown) in the
same way.
115
97
91
1
Internal Star
Washer (113)–4
1/4” Washer
(39)–4
1
Internal Star
Washer (77)–4
Console Bolt (76)–4
1” Tek Screw (40)–4
Latch Screw (46)–2
Console Bolt (89)–4
Extension Leg
Bolt (80)–4
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver and
wire cutters .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST on pages 30 and 31. The number after the parentheses shows
the quantity needed for assembly.
Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled.
