Extend the drain hose from the rear side

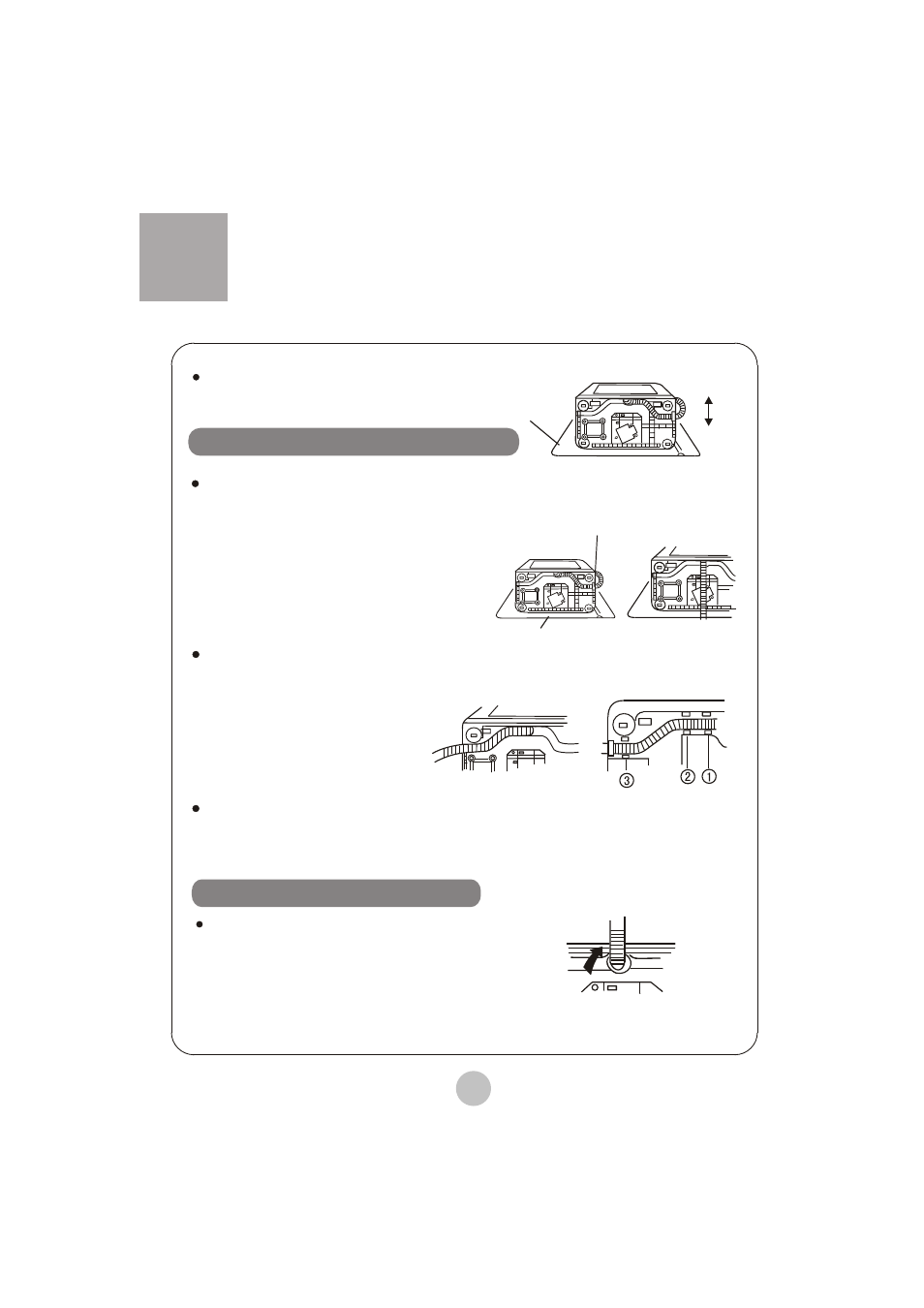

How to change the direction of the drain hoses
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Dismantle the drain hose fixing clamp and take
the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the side
of the spin tub in the order of (1)~(3), heading for the
side of the spin tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Figure 1
Figure 2
Figure 3
Figure 4
Embed into the
groove in turn
Back
Extend the drain hose from the side of spin tub
Soft item
Soft item
Extend to the
spin tub side
Dismantle the drain hose fixing clamp.
Take out the drain hose from the fixing groove.
Extend it from the rear side as per the direction
of the arrow. (When the drain hose is extended
from the rear side, it can be hung on the point
for drain hose at the two sides of the cabinet.)
(See to Figure 4).
Front
Drain hose fixing clamp
