2.
EJP04B.EPS
211208
WOOD SCRAP
(NOT SUPPLIED)
5
4

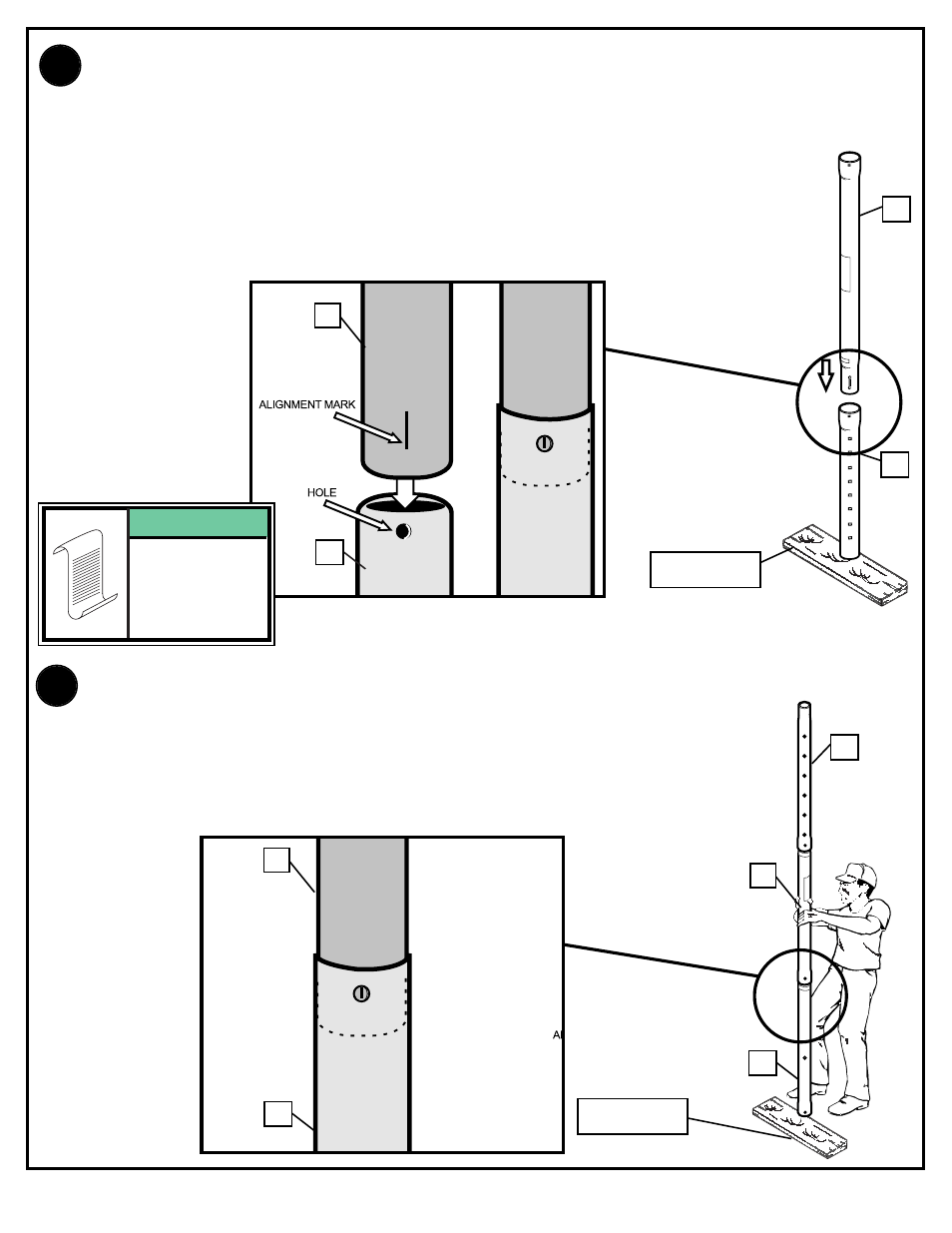

IMPORTANT! Center the alignment slot of middle pole section
(5) in the lower hole of top pole section (4) as shown. While
maintaining alignment, bounce middle section of pole (5) into top
section of pole (4) using wood scrap as shown until they no longer
move toward taped reference mark.
XSH05b.EPS
211338
4
5
6
WOOD SCRAP
3. IMPORTANT! Center the alignment slot of lower
pole section (6) in the lower hole of middle pole
section (4) as shown. While maintaining alignment,
bounce top and middle pole assembly (4 & 5) onto
bottom section of pole (6) using wood scrap as shown
until they no longer move toward taped reference mark.
6
5
POLE SECTIONS
SHOULD HAVE A
3-1/2" (9 CM)
MINIMUM
OVERLAP.
NOTE:
6
5
