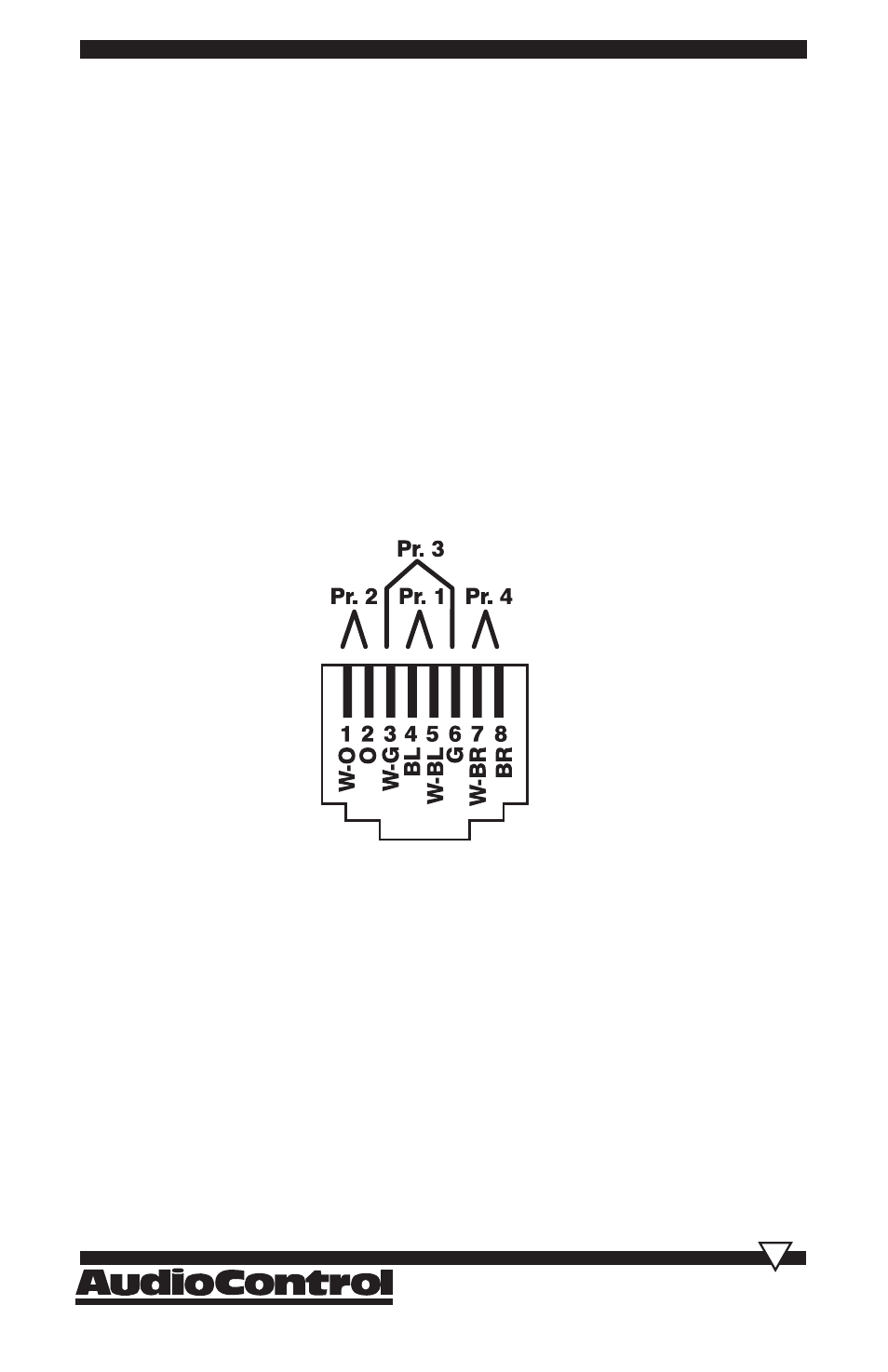

EIA-568 RJ-45 Pin Connection Diagram
Pair 1 White-Blue (W-BL) Video 4 – : Audio/Video
Blue (BL) Video 4 + : Audio/Video
Pair 2 White-Orange (W-O) Video 1 + : Component Y
Orange (O) Video 1 – : Component Y
Pair 3 White-Green (W-G) Video 2 + : Component P
B
Green (G) Video 2 – : Component P
B
Pair 4 White-Brown (W-BR) Video 3 + : Component P
R
Brown (BR) Video 3 – : Component P
R
